Nautilus® Commercial Free Weights Adjustable Tower Assembly Manual
Step 13: Thread Cable Through Pulley Assemblies
Locate the following for this step:
Parts:
• Ref 7, Assembly, Slotted Strap Forks Qty. 2
• Ref 1, Clip, Carabineer Qty. 2
Hardware:
• None
Tools:
• Ref 15, 7/32” Allen Wrench
• 9/16” Wrench

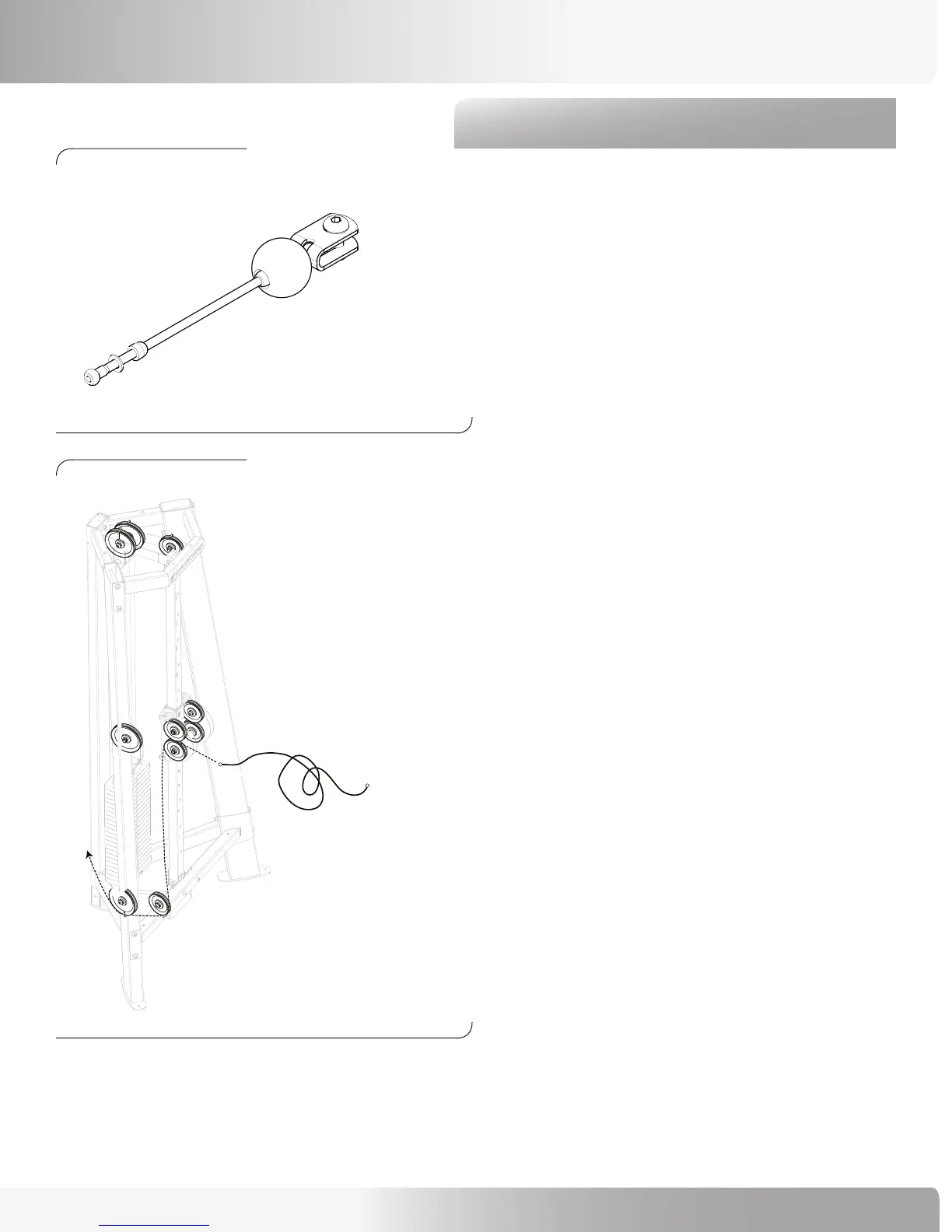

Refer to Figure 16:
13-1 Attach Cable Ball and Slotted Strap Fork to one
end of the cable. Cable terminations come
attached. Remove one set of the terminations.
Refer to Figures 17, 18, and 19:
13-2 Follow this sequence to install the cable:
a. Start threading the cable into the left side
between the two pulleys of the Adjustable
Dual Pulley system (Figure 17).
b. After you thread the cable through the left
side, direct the cable down in front of the
bottom 4 1/2” pulley.
Note: Make sure to thread the cable between
the groove in the pulley and the thread guide
welded to the frame.
c. Continue threading the cable to the 6”
bottom pulley and up behind it.
Figure 16:
Figure 17:
