Assembly Continued
The following instructions provide direction on the assembly of the Nautilus® K2
™
Vertical Climber. All
instructions in the manual are given with the orientation of standing on a level surface and facing the machine.
Call toll-free 1-800-235-2233 for assembly questions
15
Step 7: Installing the Cupholder
Tools:
* Adjustable wrench
* 7/32 Allen wrench
Parts & Hardware:
* Completed assembly from step 5
* Cup holder (p/n 57-0480)
* 3/8” x ¾ Button Head Screw (2 x 01-4036)
7-1 Using the two 3/8” fasteners, attach the
Cupholder to the handrail assembly. (Figure 14)
7-2 Finish the Cupholder installation by tightening
fasteners with the 7/32” Allen and adjustable
wrenches.
Step 8: Connecting the Power Supply
Parts:
* Power Supply (57-0350)
8-1 Connect the DC Power Cable from the Power
Supply to the power connector located on the bottom
cover.
8-2 Place the power supply on the floor near an AC
wall outlet.
8-3 Check that the Input AC Power Rating marked
on the Power Supply matches the available power.
8-4 Attach the Country-Specific power cord to the
power supply and plug into the wall outlet.
! To reduce the risk of electric shock, fire and to
prevent severe damage to the machine, use only the
power supply approved for use with this equipment.

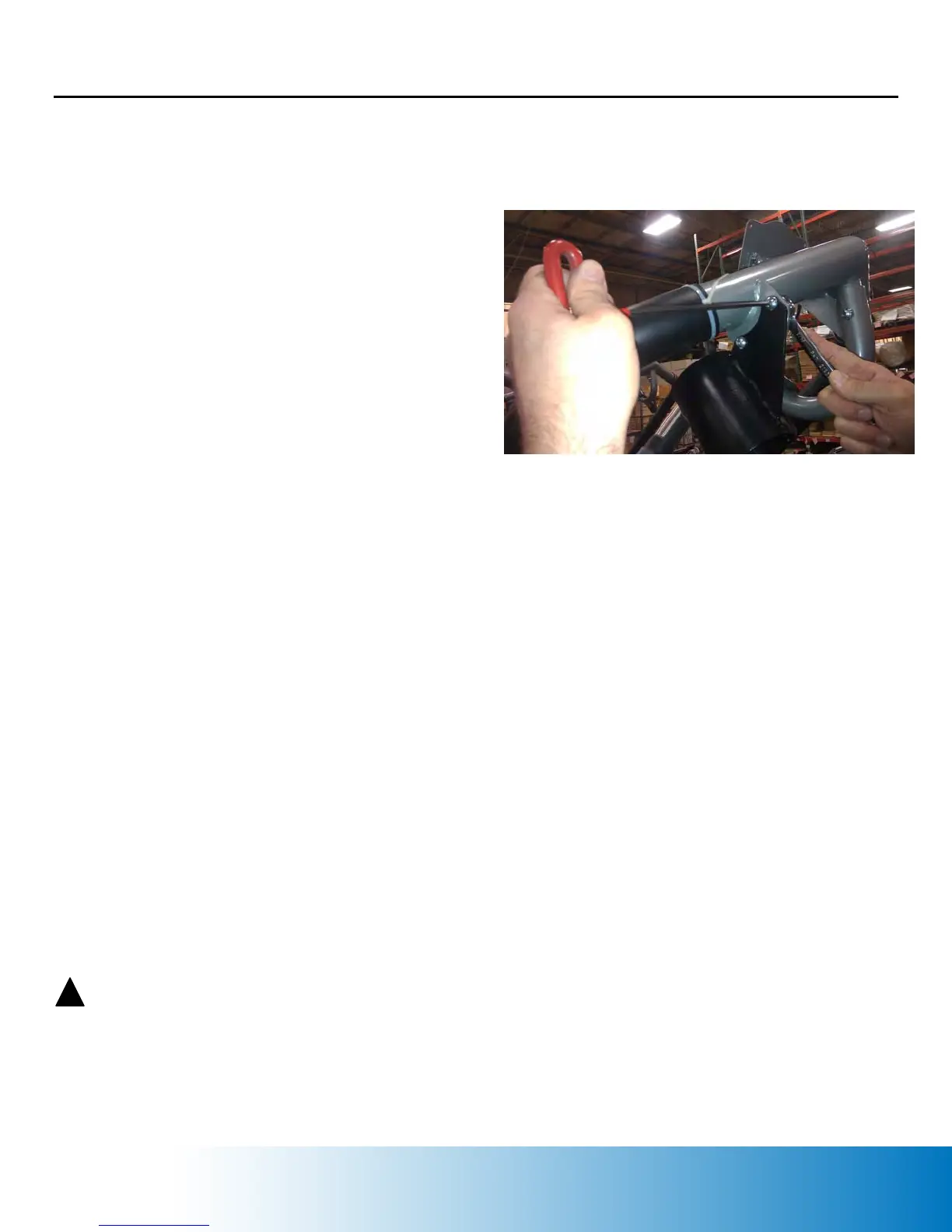

Figure 14
To Next Page
