15

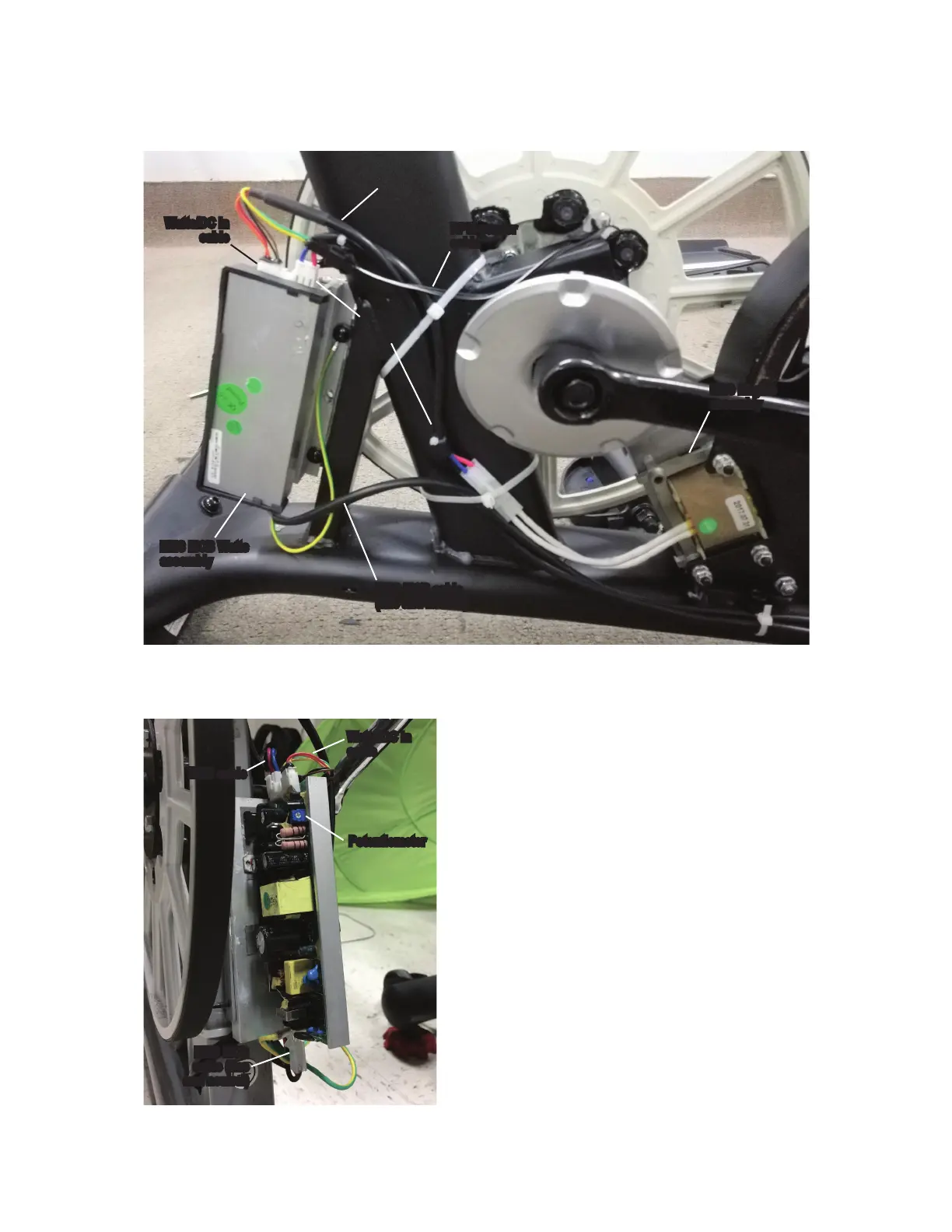

Motor Control Board (MCB), Watts
0&%ULJKWVLGHYLHZ (0&%VKRZQLVRQ8ELNH
0&%EDFNOHIWYLHZ0&%VKRZQLVRQ5ELNH
EMS cable
Watts/DC In
cable
Potentiometer
EMS MCB
cable (line
and neutral)
EMS Engine
assembly
Watts/DC In
cable
EMS MCB Watts
assembly
EMS MCB cable
(line and neutral)
EMS
cable
I/O cable
(to Console)
RPM sensor
cable
