Nautilus R628 Service Manual

65

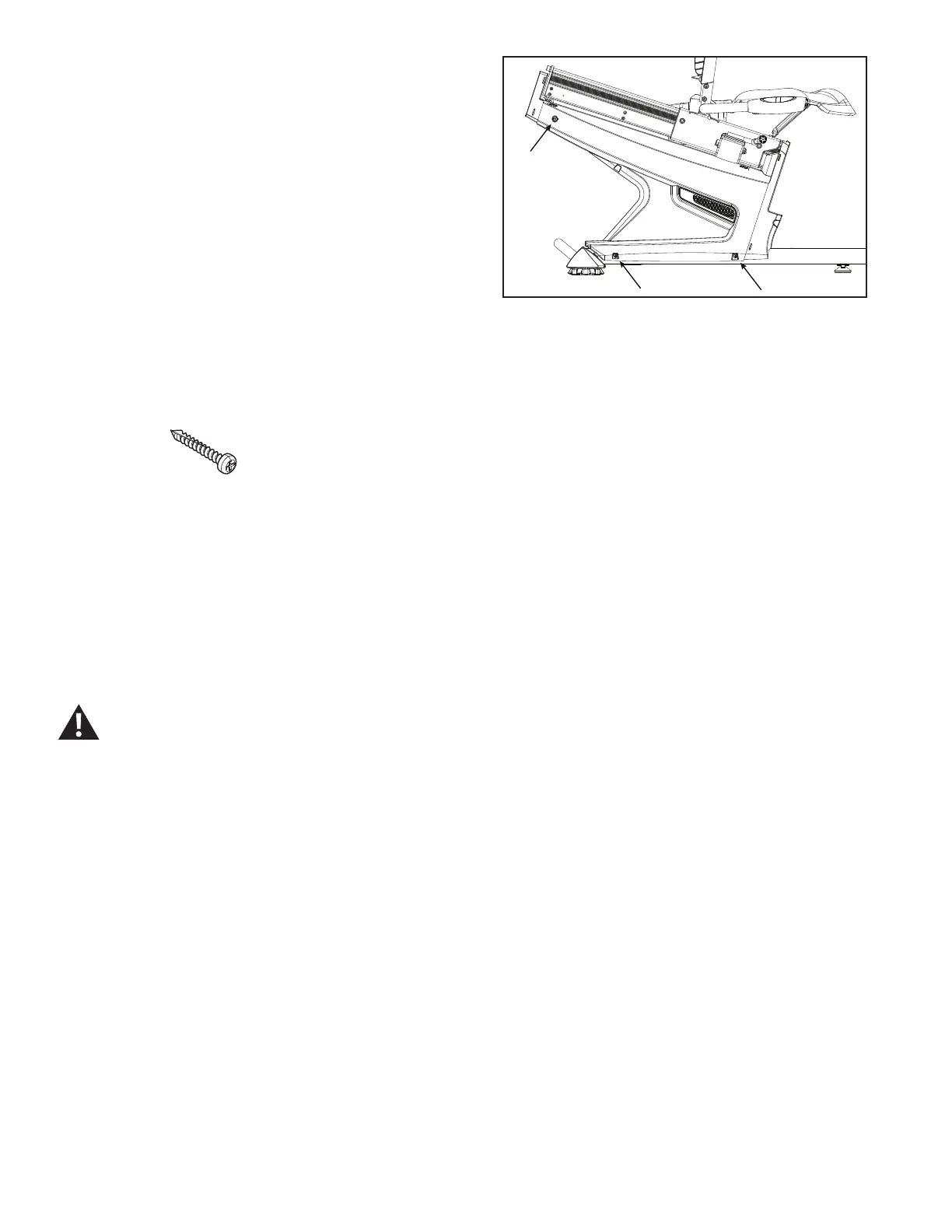

12. Using a #2 Phillips screwdriver, remove the screws that
secure the Right Rear Shroud. Slowly remove the Right
Shroud. Set the hardware and Right Shroud safely aside for
reassembly.
13. Installation is the reverse procedure. Put the Left Shroud
LQSRVWLRQ¿UVWWRDOLJQWKHVFUHZVIRUWKH5LJKW6KURXG
,QVWDOOWKHWRSVFUHZV¿UVW
Note: Self-tapping screws attach the Shrouds to the
Frame.
NOTICE: Be sure not to crimp any cables. Be sure the
tabs in the Top Shroud snap into the Main
Assembly.
Be sure the Crank Arms are connected at 180° from each
other.
14. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct
SHUIRUPDQFHLQDFFRUGDQFHZLWKWKH2ZQHU¶V
Manual.

Nautilus R628 Specifications

General

Brand	Nautilus
Model	R628
Category	Exercise Bike
Language	English
