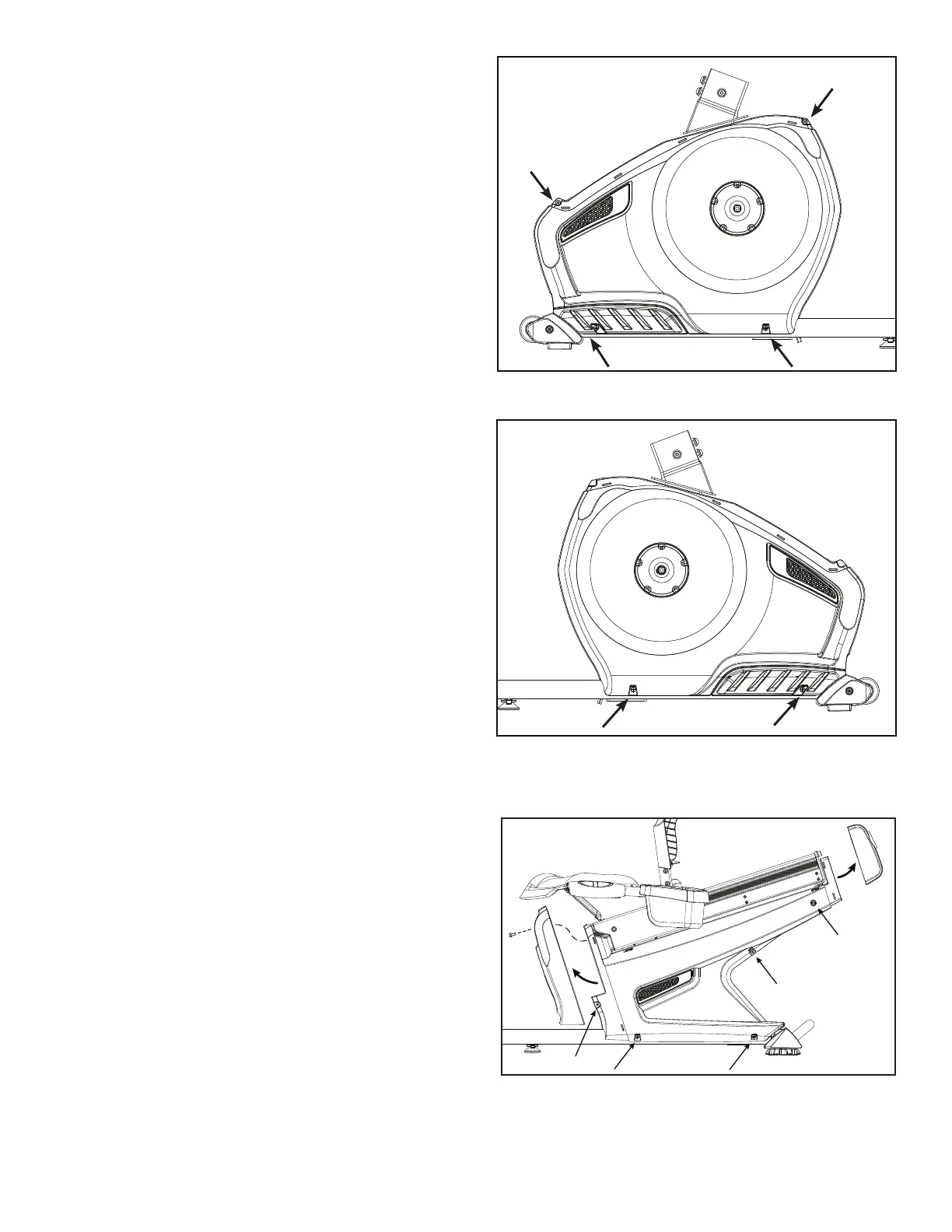

8. Using a #2 Phillips screwdriver, remove the 4 screws

(indicated) that secure the Left Main Shroud. Remove the

ERWWRPVFUHZV¿UVWDQGWKHQWKHWRSVFUHZV6ORZO\UHPRYH

the Left Main Shroud. Set the hardware and Shroud safely

aside for reassembly.

NOTICE: Be sure not to crimp any cables.

9. Using a #2 Phillips screwdriver, remove the 2 screws

that secure the Right Main Shroud. Slowly remove the Right

Main Shroud. Set the hardware and Shroud safely aside for

reassembly.

To remove the Rear Shrouds:

10. Using a #2 Phillips screwdriver, loosen and remove the

screw that secures the front Seat Rail End Cap. Bend the

edges of the rear Seat Rail End Cap to disengage the inside

tabs from the Main Assembly, and remove. Set the hardware

and Caps safely aside for reassembly.

11. Using a #2 Phillips screwdriver, remove the screws

(indicated) that secure the Left Rear Shroud. Remove the

ERWWRPVFUHZV¿UVWDQGWKHQWKHWRSVFUHZV6ORZO\UHPRYH

the Left Shroud. Set the hardware and Left Shroud safely

aside for reassembly.
