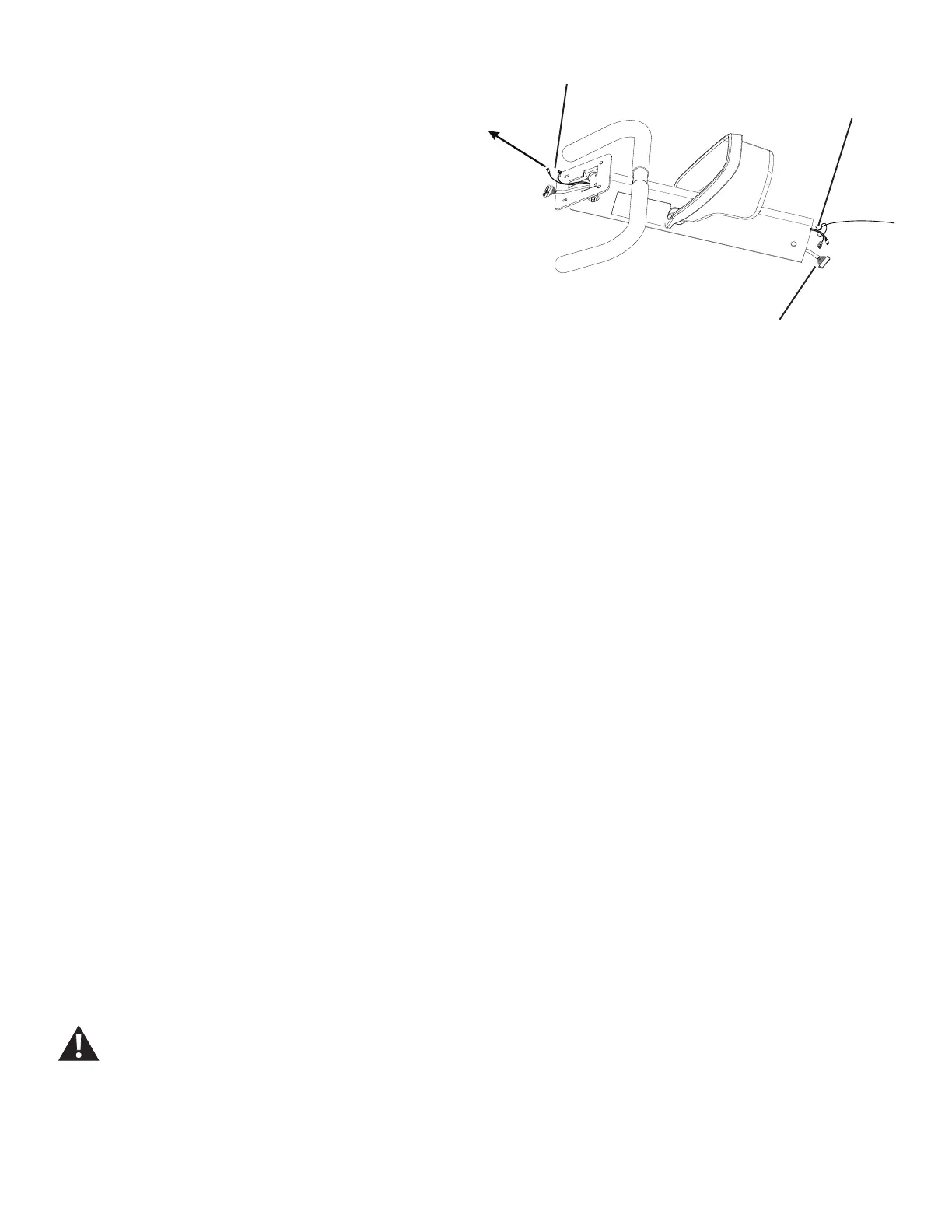

5. Tie the length of string to the end (A) of the HR/
Resistance Cable Assembly at the base of the Mast. Hold
the other end of the HR/Resistance Cable Assembly (B) and
FDUHIXOO\SXOOLWRXWRIWKH0DVWVRWKDWWKHVWULQJH[WHQGV
through the length of the Mast. Untie the string from the old
HR/Resistance Cable Assembly and discard the old cables.
NOTICE: Hold the Data Cable (C) so that you do not pull
it out of the Mast. Do not crimp the Data Cable.
6. Tie the end of the string at the base of the Mast to one
end of the replacement HR/Resistance Cable Assembly.
Hold the other end of the string and carefully pull the new
HR/Resistance Cables through the Mast.
NOTICE: Hold the Data Cable (C) so that you do not pull
it out of the Mast. Do not crimp the cables.
7. Untie the string from the HR/Resistance Cable Assembly.
With the Mast through the opening in the Top Shroud,
connect the cables in the Mast to the cables from the Main
Frame.
. NOTICE: Do not crimp the cables. This step may require
two people.
8. Put the Mast (with the Top Shroud) back in position in the
Main Frame and reinstall the Hardware.
Note: Do not let the cables fall down inside the Mast.
NOTICE: Be sure not to crimp any cables. This step may
require two people.
9. Slide the Top Shroud back into position.
NOTICE: Be sure the tabs in the Top Shroud snap into
the Main Assembly.
10. Connect the cables to the back of the Console and
attach the Console to the Mast with the screws from Step 2.
NOTICE: Do not crimp the cables.
11. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct
SHUIRUPDQFHLQDFFRUGDQFHZLWKWKH2ZQHU¶V
Manual.
