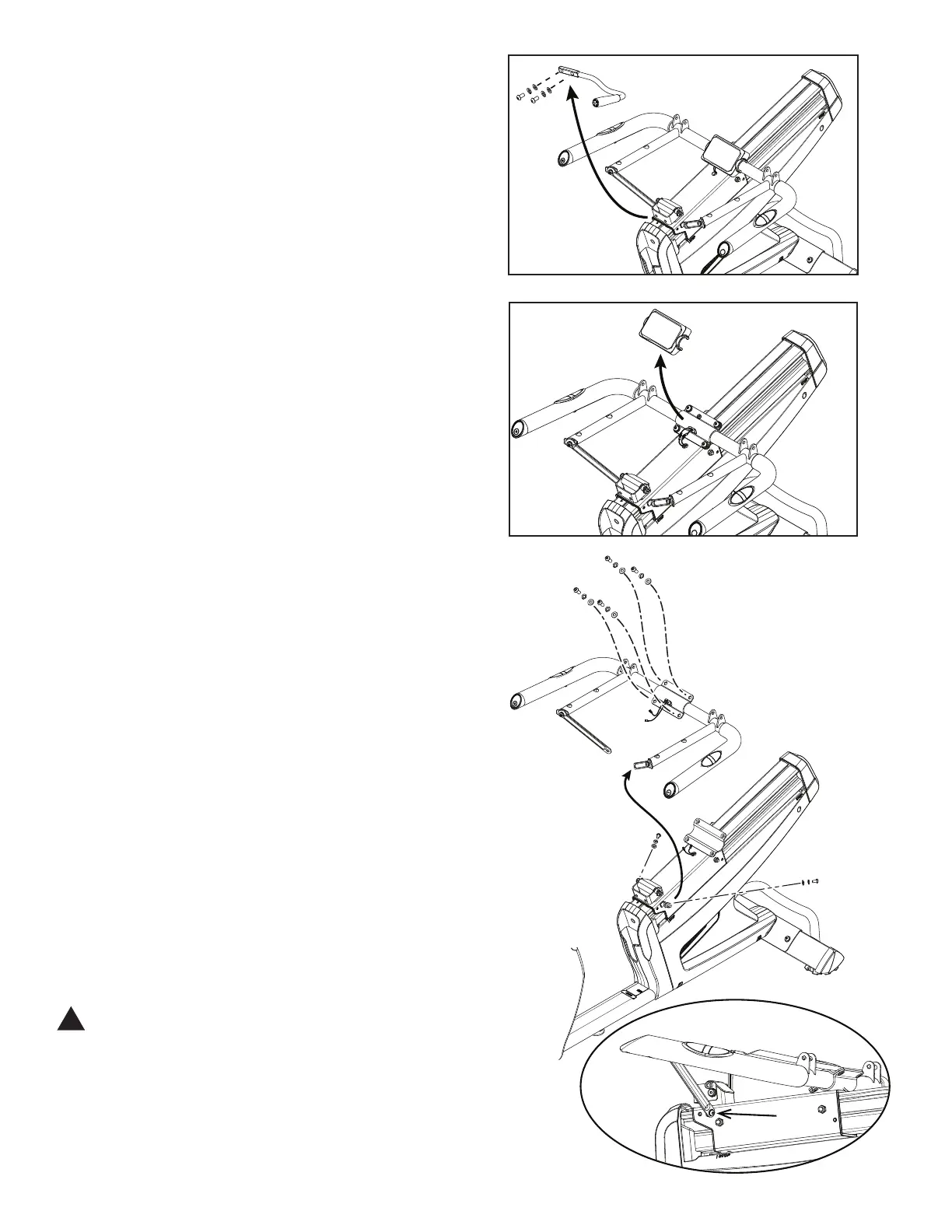

6. 8VLQJDPPKH[ZUHQFKORRVHQDQGUHPRYHWKHKDUG-

ware that attaches the Seat Adjustment Handle to the seat

slider assembly. Remove the Seat Adjustment Handle. Set

the hardware and Seat Adjustment Handle safely aside.

7. Carefully remove the Top Cap from the seat slider

bracket, and disconnect the Resistance and Heart Rate

Cables.

8. 8VLQJDPPKH[ZUHQFKDQGPPKH[ZUHQFK

loosen and remove the hardware that attaches the Seat

Frame Assembly to the seat slider assembly. Remove the

Seat Frame Assembly. Set the hardware and Seat Frame

Assembly safely aside.

NOTICE: Do not crimp any cables.This step may require

two people.

9. Installation is the reverse procedure.

NOTICE: Do not crimp any cables. Hand tighten all

KDUGZDUH¿UVWWKHQIXOO\WLJKWHQLW%HVXUHWKH

cables are tucked inside the Top Cap.

10. Final Inspection

Inspect your machine to ensure that all hardware is tight and

components are properly assembled.

Do not use until the machine has been fully

assembled and inspected for correct performance

LQDFFRUGDQFHZLWKWKH2ZQHU¶V0DQXDO

Nautilus R628 Service Manual
