101

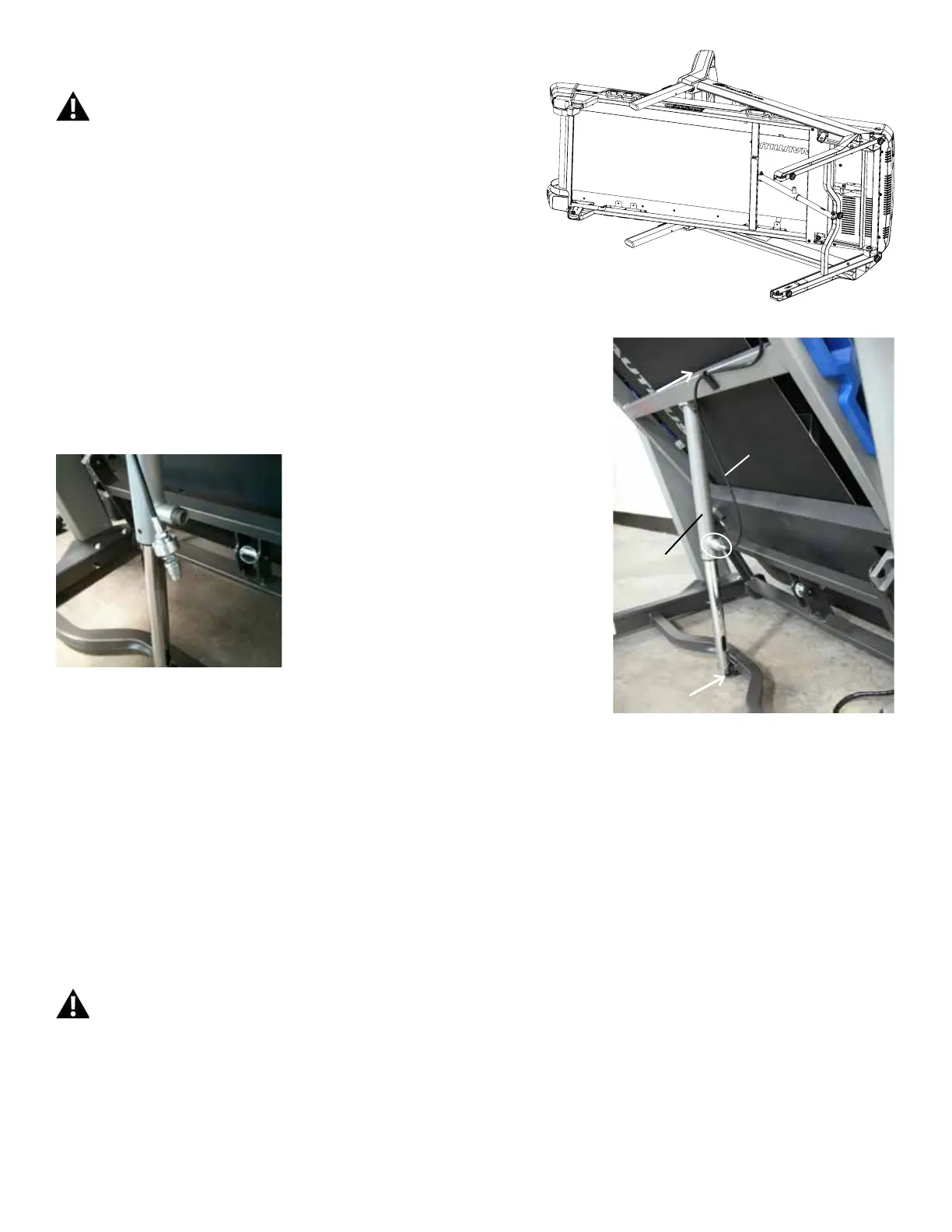

6. Tilt the machine onto the left side.
Be sure the area is clear around the machine before tilting it.
Do not grasp the Walking Belt since it can abruptly move.
The machine may be moved by one or more persons depend-
ing on their physical abilities and capacities. Make sure that
you and others are all physically t and able to move the
machine safely.
Note: The following image shows the machine not tilted on the side.
7. Using a 10mm wrench, loosen the locking nut for the Release Cable
(indicated by oval).
8. Using a 14mm wrench, disconnect the securing nut and remove the
Release Cable Assembly from the Lift Shock.
9.Usinga13mmwrenchanda6mmhexwrench,removetheindicated
hardware (with arrow) from the Lift Shock.
Note: Be sure to note the orientation of the Lift Shock for re-assembly.
10. Installation of the new Lift Shock is the reverse procedure.
Note: Be sure to attach the Lift Shock in the same orientation as the old
Shock.
11.Makesurethereissufcientspacetotiltthemachinebackuprightand
that the area is clear.
This step requires two people. Be sure there is adequate
clearance for the raised deck. Some components of the
equipment can be heavy or awkward. Enlist the service of a
second person when you perform maintenance steps involv-
ing these components. Do not try to perform heavy or
awkward steps on your own.
Lift Shock
Release Cable
To Next Page
