Nautilus T618 Service Manual

107

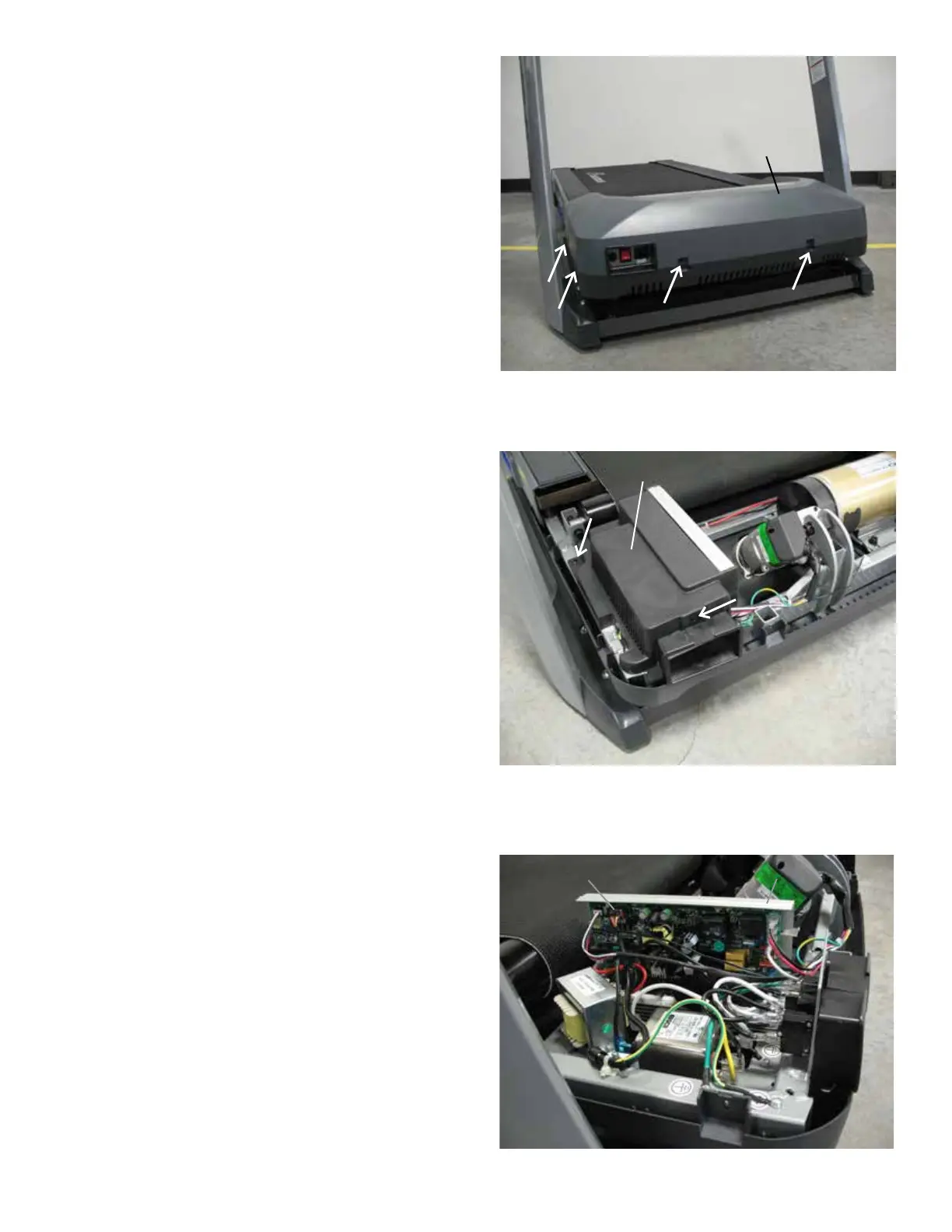

18. Using a #2 Phillips screwdriver remove the 4 indicated screws and two
additional screws from the Motor Cover. Lift and remove the Motor Cover.
19. Using a #2 Phillips screwdriver remove the 2 indicated screws from the
MCB Cover. Lift and remove the MCB Cover.
20. Remove the Lower I/O Cable connector from the Motor Control Board
after noting the location.
Note: Be sure to note where the Lower I/O Cable attaches for re-assem-
bly.
21. Remove the old Lower I/O Cable from the Frame Assembly. Route the
new Lower I/O Cable into the Frame Assembly following the old Cable as
a guide.
Note: Do not crimp the Cables.
22. Connect the Lower I/O Cable connector to the Motor Control Board in
the proper location.
Note: Do not crimp the Cable.
Motor Cover
MCB Cover
Lower I/O Cable
Motor Control Board
(MCB)

Nautilus T618 Specifications

General

Foldable	Yes
Bluetooth Connectivity	Yes
Cooling Fan	Yes
Running Surface	20" x 60"
Incline Range	0% to 15%
Speed Range	0 to 12 MPH
Display	LCD
Programs	26
Heart Rate Monitoring	Yes
Weight Capacity	350 lbs
Audio	Yes
Dimensions	57.6" H
