23. Connect the Input/Output (I/O) Cables and Attach the Right Upright to
Frame Assembly
Note: This step may take two people to safely hold the Right Upright
while the Cables are connected. Do not crimp the Cables. Do not fully
tighten the Hardware until the Console and Handlebar Assembly has been
attached.

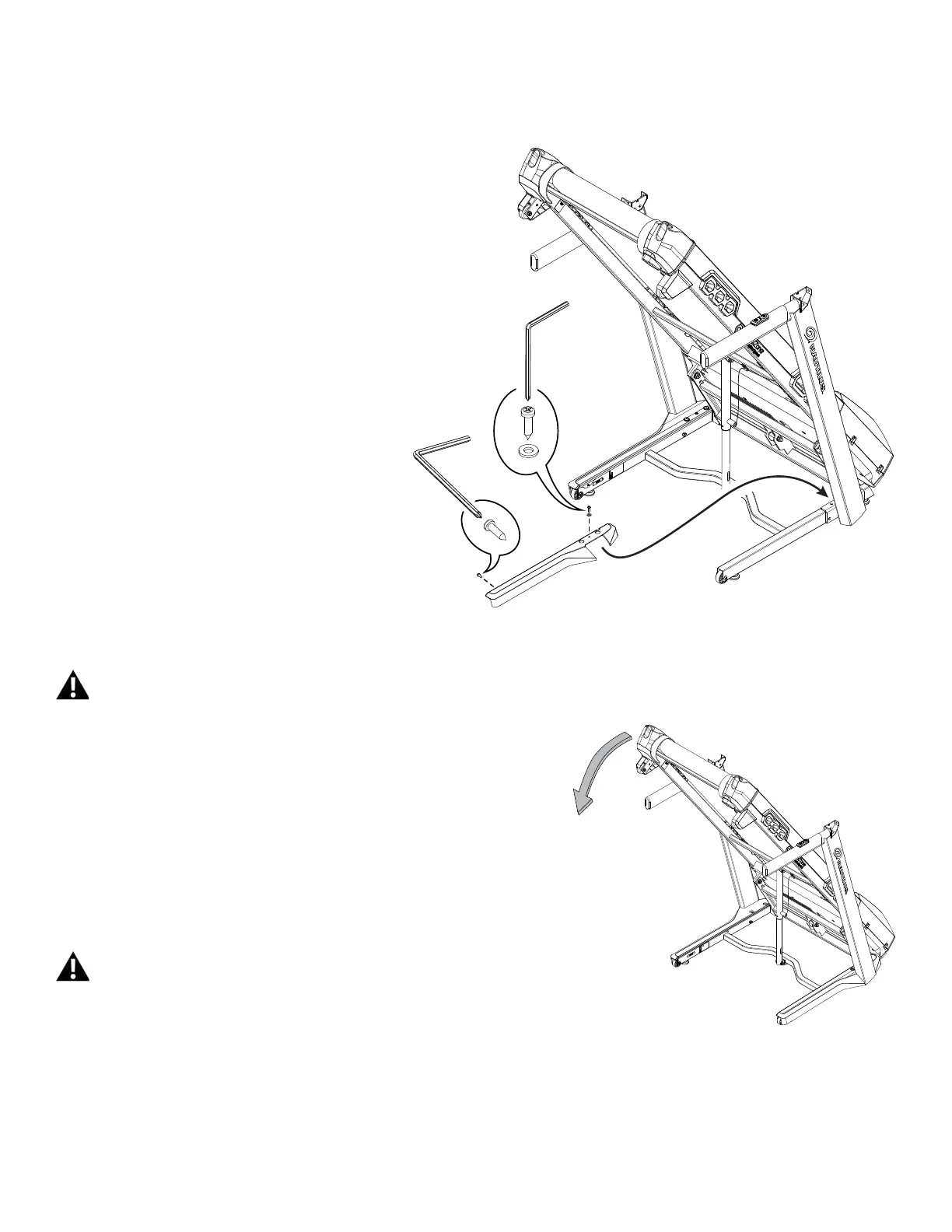

24.Reinstall the right Base Shroud on the Base Assembly.
25.Makesurethereissufcientspacetolowerthewalkingdeck.
Keep a minimum clearance behind the machine of 79” (2 m)
and 24” (0.6 m) on each side. This is the recommended safe
distance for access, movement and emergency dismounts
from the machine.
26. Make sure there is no object on or around the treadmill to spill or
cause blockage from the fully unfolded position.
27. Slightly push the walking deck forward toward the console, and then
push the Deck Release Handle until the locking tube releases and you
can pull the walking deck away from the console. Hold up the rear of the
walking deck, and move to the side of the machine.
Keep clear of the movement path of the walking deck.
28. The hydraulic lift is set up to drop gradually. Hold onto the walking
deckuntilapproximately2/3ofthemovementdown.Makesurethatyou
use proper lifting technique; bend your knees and keep your back straight.
Be aware that the walking deck can possibly drop quickly in the last part of
the movement
