Nautilus T618 Service Manual

132

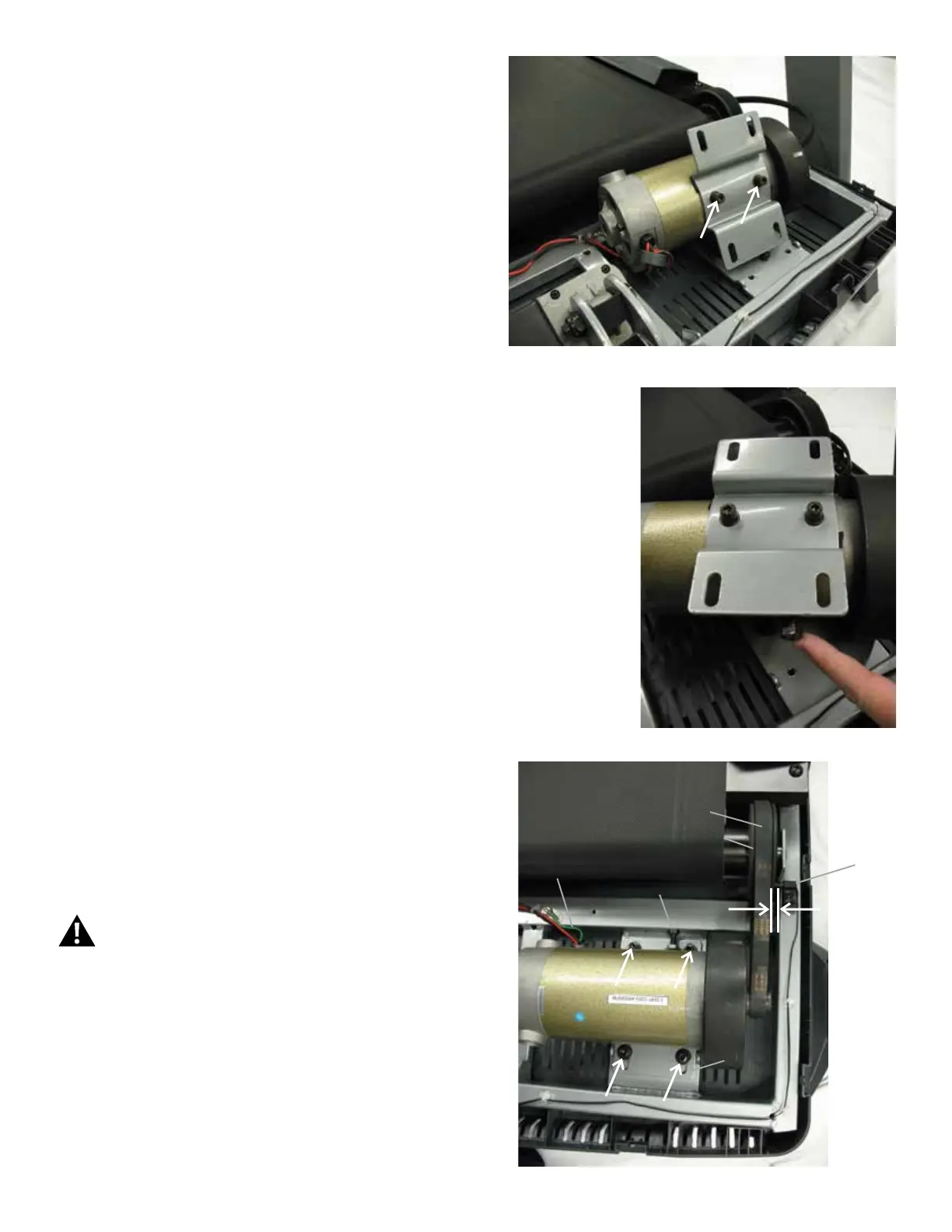

8.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Motor Mount.
9. Attach the new Motor Mount to the Motor. Be sure the Belt Tensioner
Screw is properly oriented toward the rear of the machine when the Motor
is re-installed.
10.LightlyattachtheMotorAssemblytotheFrame.Besuretoonlynger
tighten the hardware.
11. Loop the Drive Belt onto the Motor Pulley. With the Drive Belt looped
onto the Motor, carefully roll the Drive Belt onto the Drive Pulley in a clock-
wise motion. Be sure the Belt does not come off of the Motor Pulley.
Keep ngers out of any pinch opportunities when turning the
Pulleys.
12. Roll the Drive Pulley clockwise until the Drive Belt is fully installed.
ContinuetorolltheBeltforwardwhileaddingsidepressurewithngersto
align as necessary.
Belt Tensioner Screw
Drive Belt
Motor
Mount
Speed
Sensor
Drive Pulley
Motor Ground
Wire

Nautilus T618 Specifications

General

Foldable	Yes
Bluetooth Connectivity	Yes
Cooling Fan	Yes
Running Surface	20" x 60"
Incline Range	0% to 15%
Speed Range	0 to 12 MPH
Display	LCD
Programs	26
Heart Rate Monitoring	Yes
Weight Capacity	350 lbs
Audio	Yes
Dimensions	57.6" H
