Nautilus T618 Service Manual

54

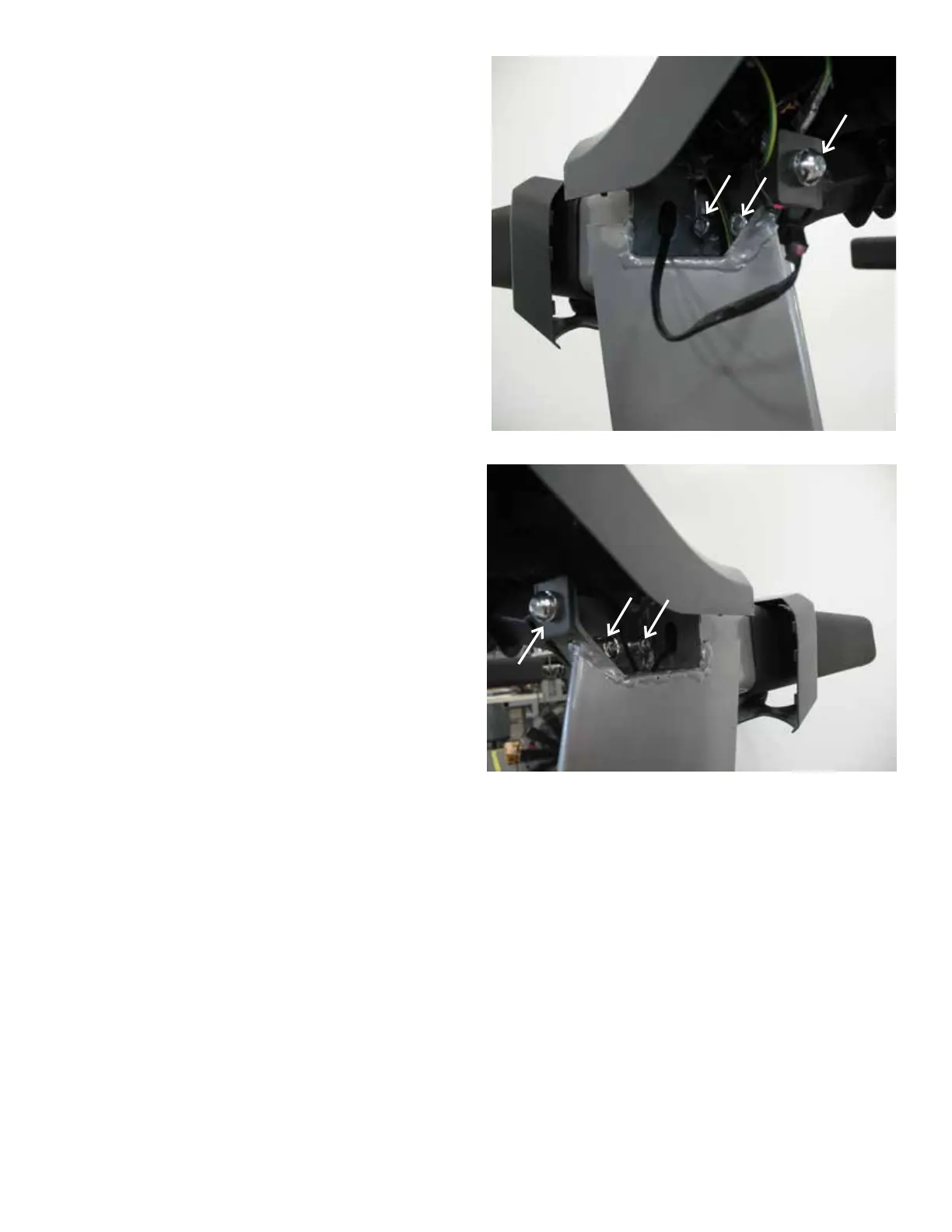

5. From the Right Upright, disconnect the Grounding, Input/Output,
Remote Speed Control Cables. Do not allow the Grounding and I/O Cable
to fall into the Right Upright. Secure it with a Zip-Tie, rubber band or piece
of wire.
Note: Do not crimp the Cables.
6.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Right Upright.
7. From the Left Upright, disconnect the Remote Incline Control Cable.
Note: Do not crimp the Cables.
8.Usinga6mmhexwrench,removetheindicatedhardwarefromtheLeft
Upright.
9. Fully remove the Console and Handlebar Assembly from the Uprights.
Right Upright

Nautilus T618 Specifications

General

Foldable	Yes
Bluetooth Connectivity	Yes
Cooling Fan	Yes
Running Surface	20" x 60"
Incline Range	0% to 15%
Speed Range	0 to 12 MPH
Display	LCD
Programs	26
Heart Rate Monitoring	Yes
Weight Capacity	350 lbs
Audio	Yes
Dimensions	57.6" H
