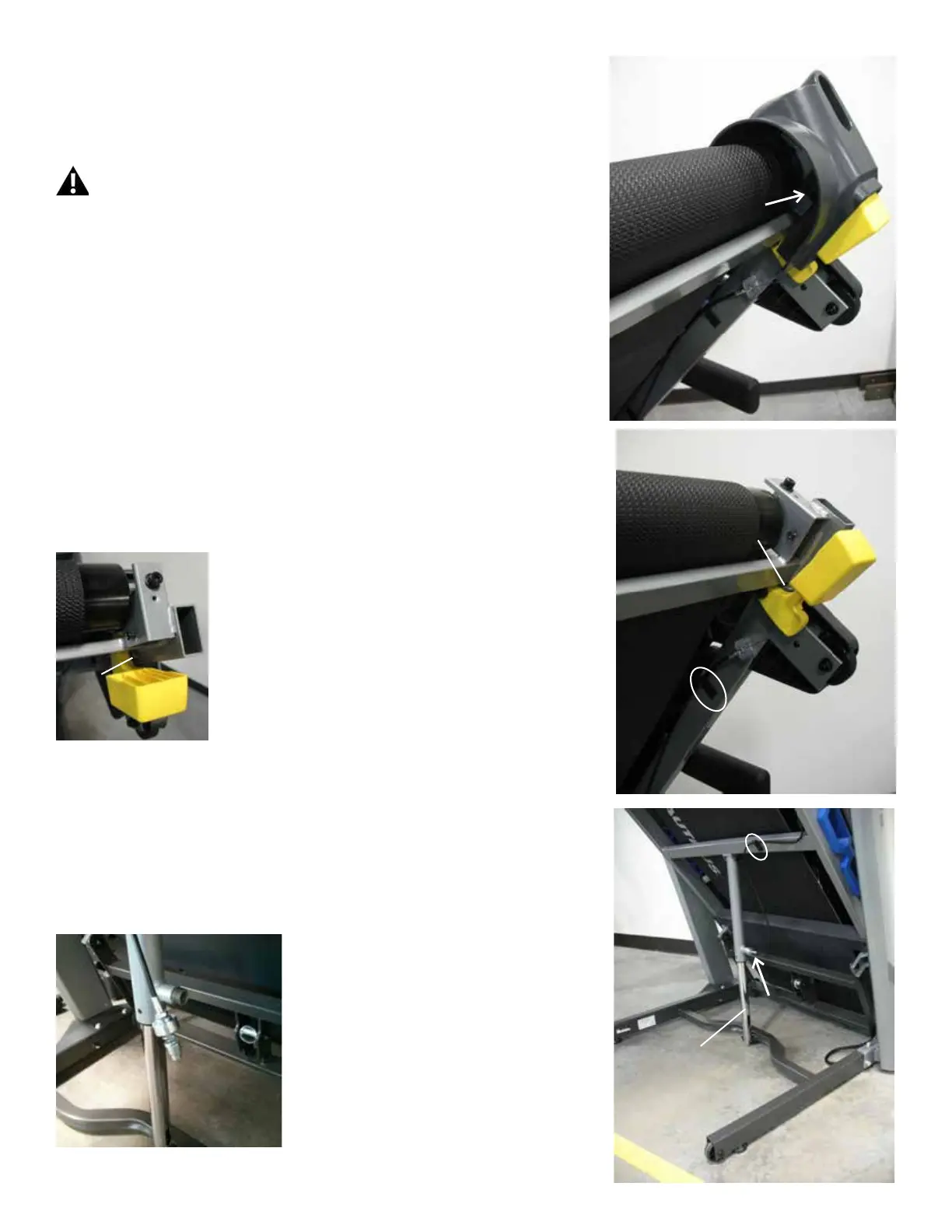

6. Using a #2 Phillips screwdriver loosen the indicated screw on the Rear
Roller Cover.
7. Safely remove the old Rear Roller Cover.
To remove the Right Roller Cover, the Tilt Release Handle
must be pushed for additional clearance. Be sure not to pull
down on the Deck when the Tilt Release Handle is pushed or
the Deck may begin to lower.
8. With the Right Rear Roller Cover removed, the spring that connects to
the Deck Release Handle can be seen. Note the orientation of the spring
to assist with re-assembly.
9. Using a #2 Phillips screwdriver, loosen the ties (indicated by ovals) that
secure the cable along the Frame from the Handle to the Lift Shock.
10. Using a 10mm wrench, loosen the locking nut for the Release Cable
(indicated by arrow).
11. Using a 14mm wrench, disconnect the securing nut and remove the
Release Cable Assembly from the Lift Shock.
Spring
Spring
Lift Shock
To Next Page
