158

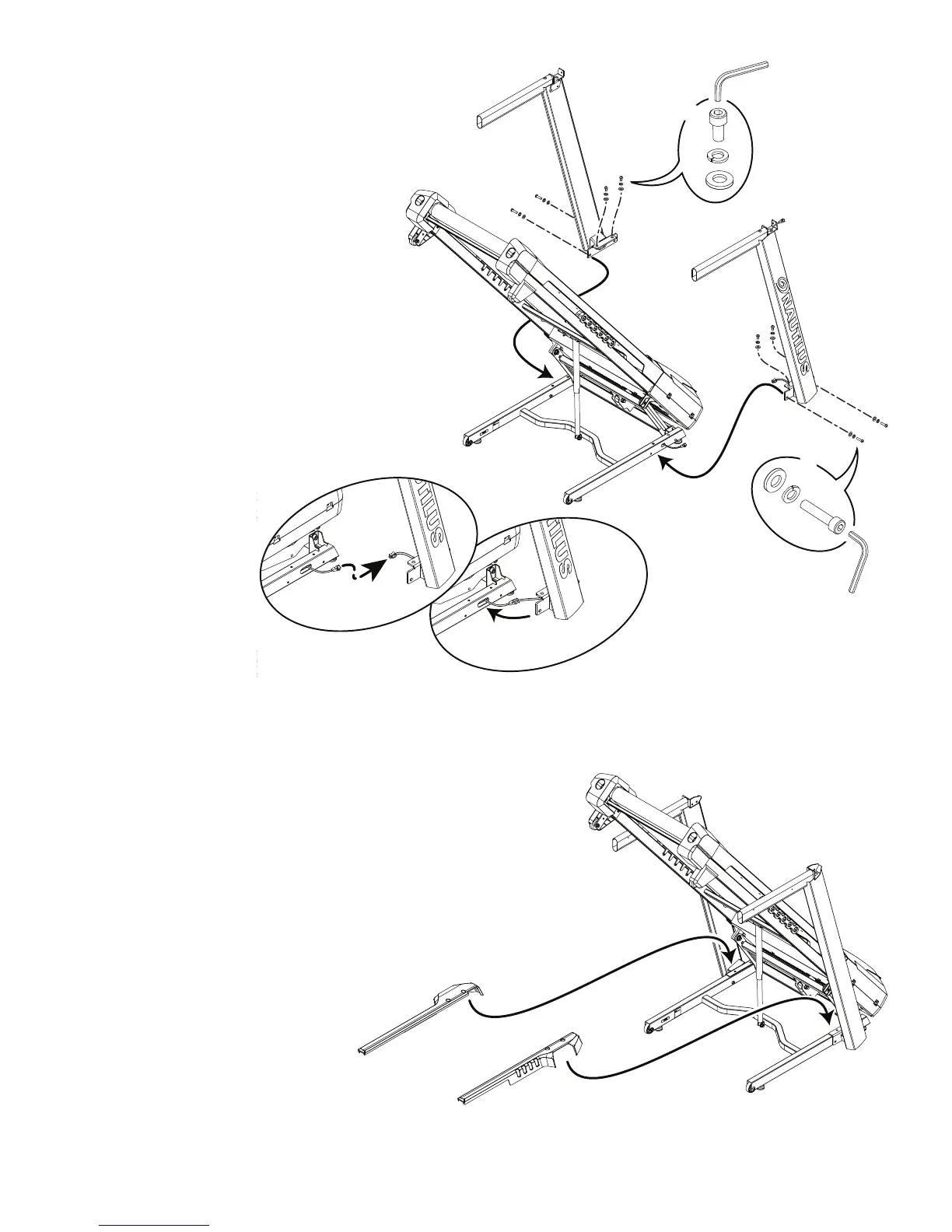

24. Connect the Input/Output (I/O) Cables and attach the Up-
rights to the Frame Assembly
Note: this step may take two people to safely hold the Right
Upright while the Cables are connected. Do not crimp the
Cables. Do not fully tighten the Hardware until the Console and
Handlebar Assembly has been attached.
X4
X4
25.PlacetheBaseShroudsbackontotheBaseAssembly.
