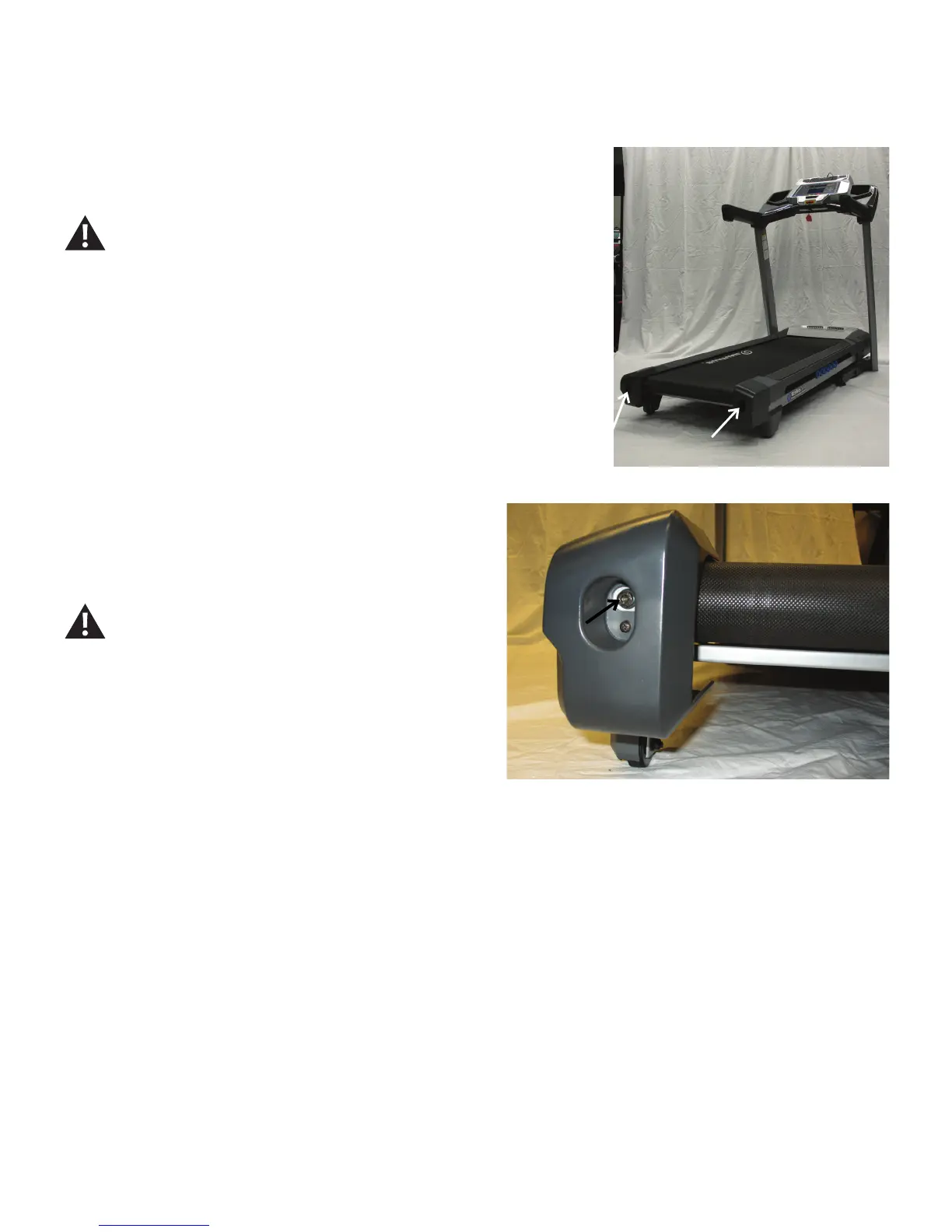

NOTICE: ThisdocumentprovidesinstructionsfortheadjustmentoftheWalkingBeltsontheNautilus
T624/T626/T684/T686 and Schwinn
®
530/570 Treadmills.
If you need assistance, please contact your local Nautilus distributor. To find your local distributor, go to: www.nautilusinternational.com
1. Run the machine at 1 mph to see which way the Walking Belt needs to
be moved.
Do not touch the Walking Belt. Be sure to keep bystanders,
children and pets away from the machine.
2. Using a 6mm hex wrench on the side the belt should move away from,
rotate the Adjustment Bolt a 1/4 turn clock-wise.
3. Allow the Walking Belt to adjust to the new tension.
4. Repeat steps 2 and 3 until the Walking Belt is centered.
5.FinalInspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Note: The Nautilus™ T626 is used in the following images. The procedure is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.
