Nautilus T626 Service Manual

56

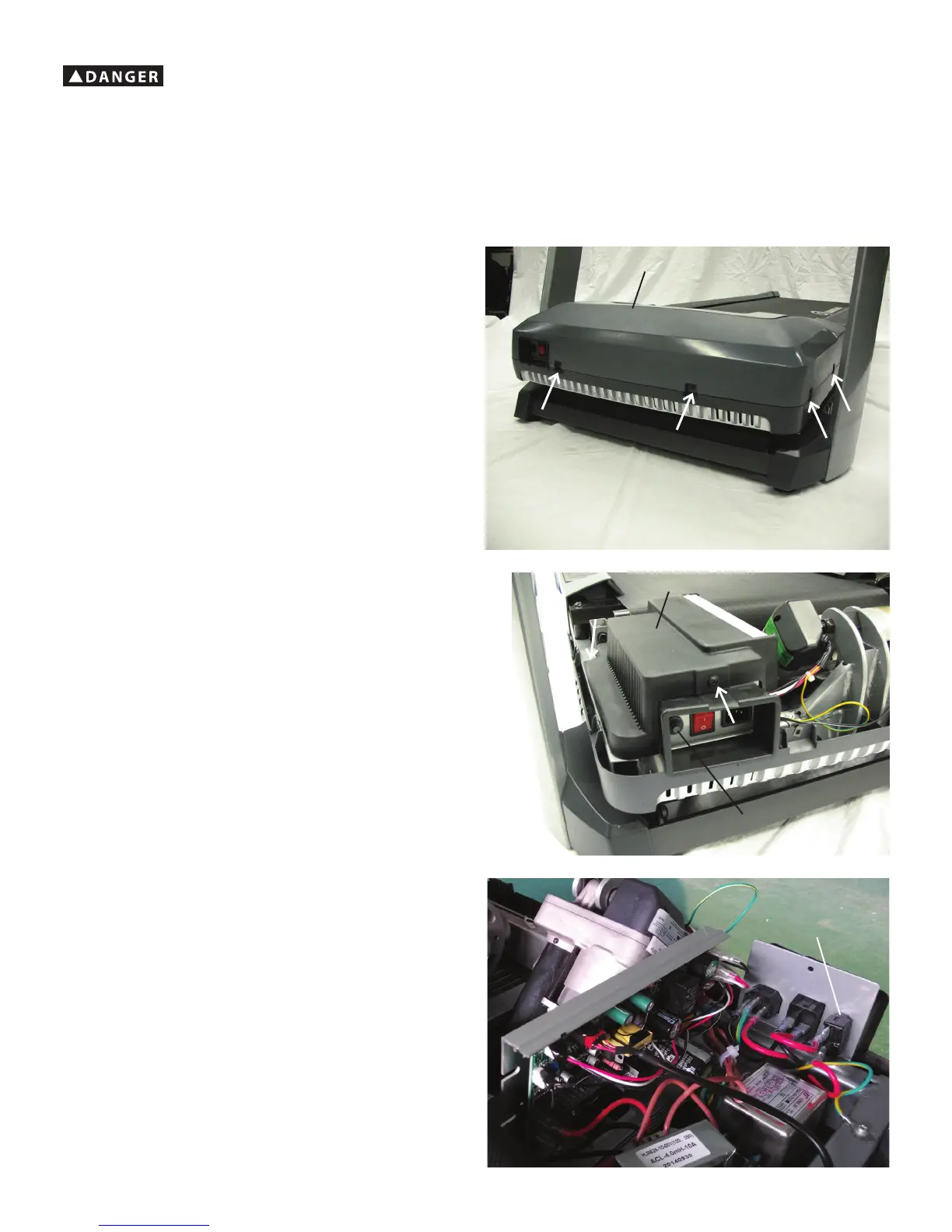

1.Unplugthepowercordfromthemachineandwait5minutes.Placethe
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a #2 Phillips screwdriver remove the 2 indicated screws from the
MCB Cover and remove it.
4. From the front, remove the Securing Ring from the Circuit Breaker by
rotating it counter-clockwise. Remove the Circuit Breaker from the Frame.
5.RemovetheconnectorsandattachthemtothenewCircuitBreaker.
6. Insert the new Circuit Breaker into the Frame and install the Securing
Ring.
Note: The Nautilus™ T626 is used in the following images. The procedure is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.
Motor Cover
MCBCover
CircuitBreaker
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
andthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Placethepowercordinasecure
location.
Circuit
Breaker

Nautilus T626 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Incline range	0 - 15 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	26
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 60 mm
Running belt thickness	2 mm
Running deck thickness	25 mm
