Nautilus T626 Service Manual

67

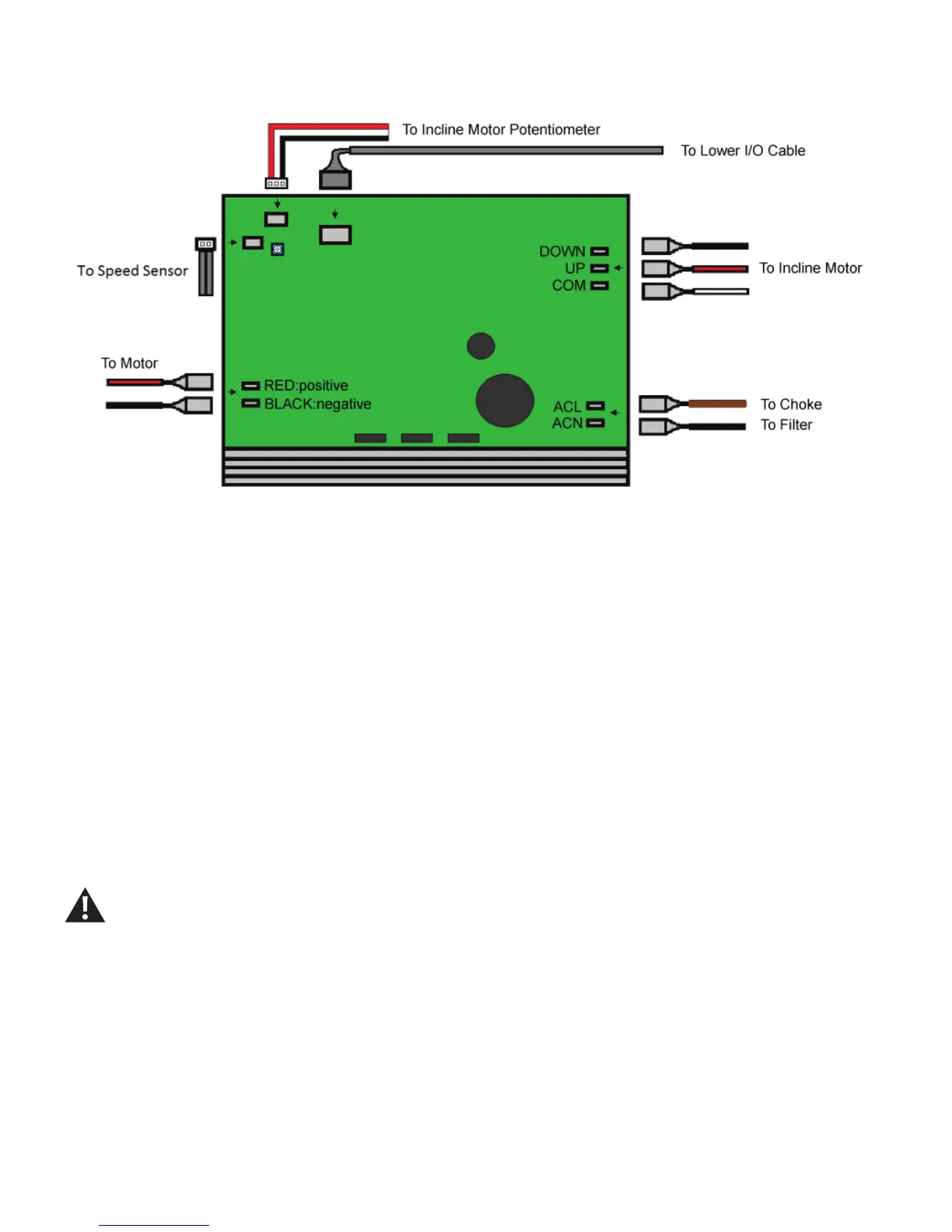

7. Attach the new Speed Sensor Connector to the Motor Control Board.
8. Route the new Speed Sensor Cable along the Frame.
9. Using replacement Zip-Ties, secure the Speed Sensor Cable to the
Frame and trim the excess from the Zip-Ties. Be sure not to cut the Speed
Sensor Cable.
10. Using a #2 Phillips screwdriver, attach the new Speed Sensor and
adjust it to be the same distance as the old Sensor from the Drive Pulley.
11. Re-install all remaining parts that were removed in reverse order.
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.

Nautilus T626 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Incline range	0 - 15 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	26
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 60 mm
Running belt thickness	2 mm
Running deck thickness	25 mm
