Nautilus T626 Service Manual

91

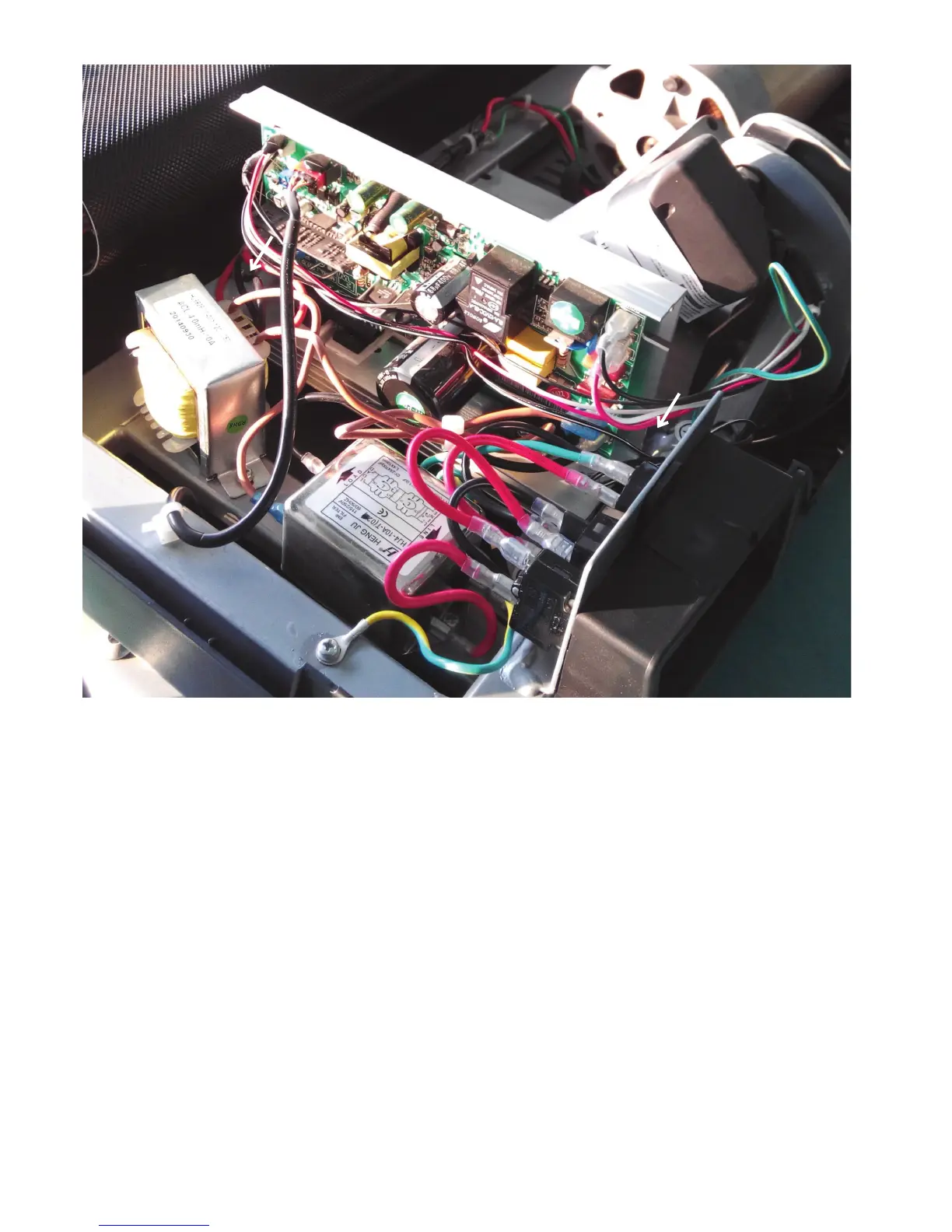

4. Remove the connectors from the Motor Control Board after noting their
locations.
Note: Be sure to note where all cables attach for re-assembly.
5.Usinga#2Phillipsscrewdriver,removethe2indicatedscrewsthat
attach the Motor Control Board (MCB) to the Frame.
6. Remove old Motor Control Board, and install the new Motor Control
Board. Connect all the cables to the MCB in their proper locations. Be
sure not to crimp any cables.

Nautilus T626 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Incline range	0 - 15 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	26
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 60 mm
Running belt thickness	2 mm
Running deck thickness	25 mm
