Nautilus T626 Service Manual

94

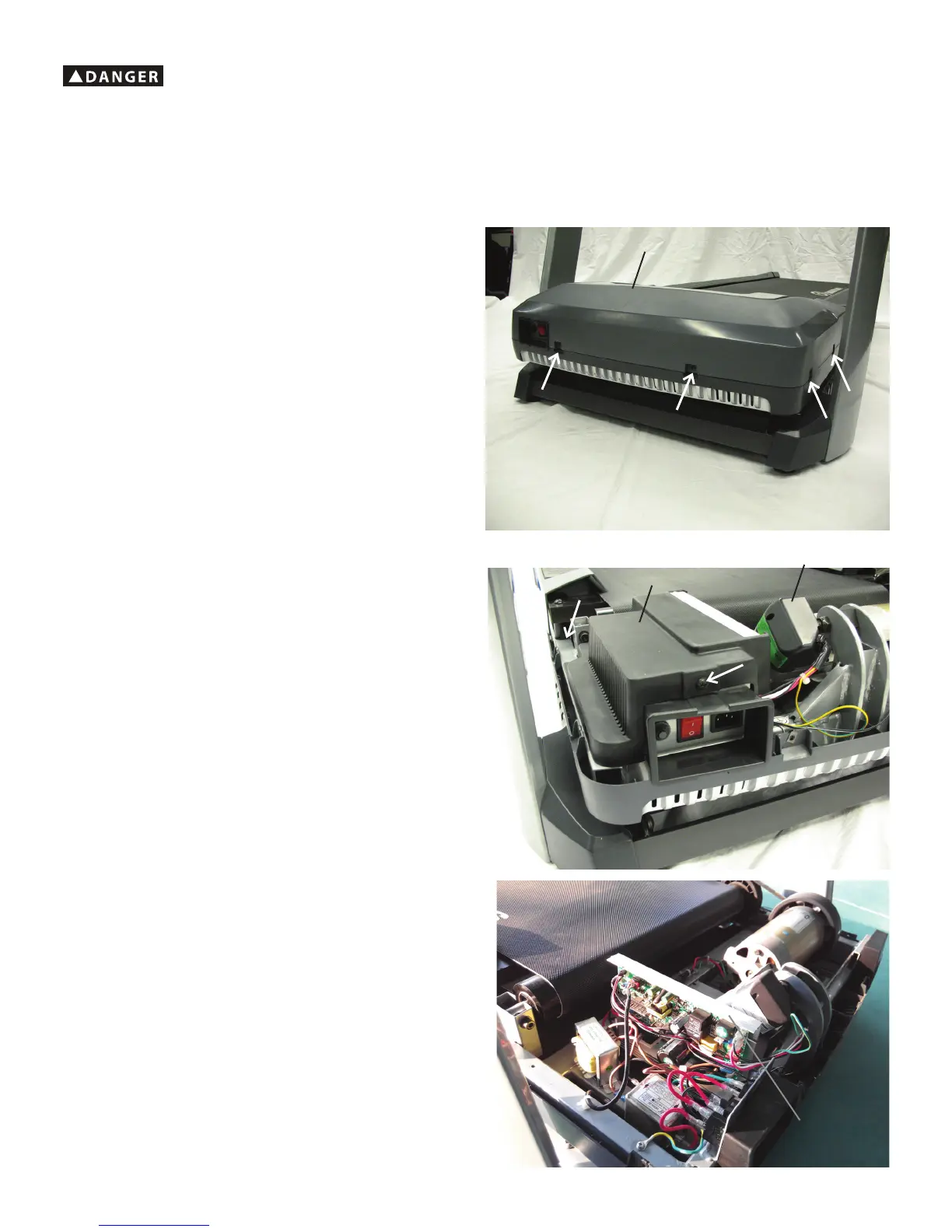

1.Unplugthepowercordfromthemachineandwait5minutes.Placethe
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a #2 Phillips screwdriver remove the 2 indicated screws from the
MCB Cover and remove it.
4. Remove the connectors for the Incline Motor Potentiometer and the
Incline Motor from the Motor Control Board after noting their locations.
Note: Be sure to note where all cables attach for re-assembly.
Note: The Nautilus™ T626 is used in the following images. The procedure is the same for the Nautilus™ T624/T684/T686 and Schwinn
®
530/570
models.
Motor Cover
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the wall outlet
andthemachineandwait5minutesbeforecleaning,maintainingorrepairingthemachine.Placethepowercordinasecure
location.
Incline Motor Assembly
MCBCover
Motor Control
Board
(MCB)

Nautilus T626 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Incline range	0 - 15 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	26
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 60 mm
Running belt thickness	2 mm
Running deck thickness	25 mm
