1 Installation and Troubleshooting Guide
20

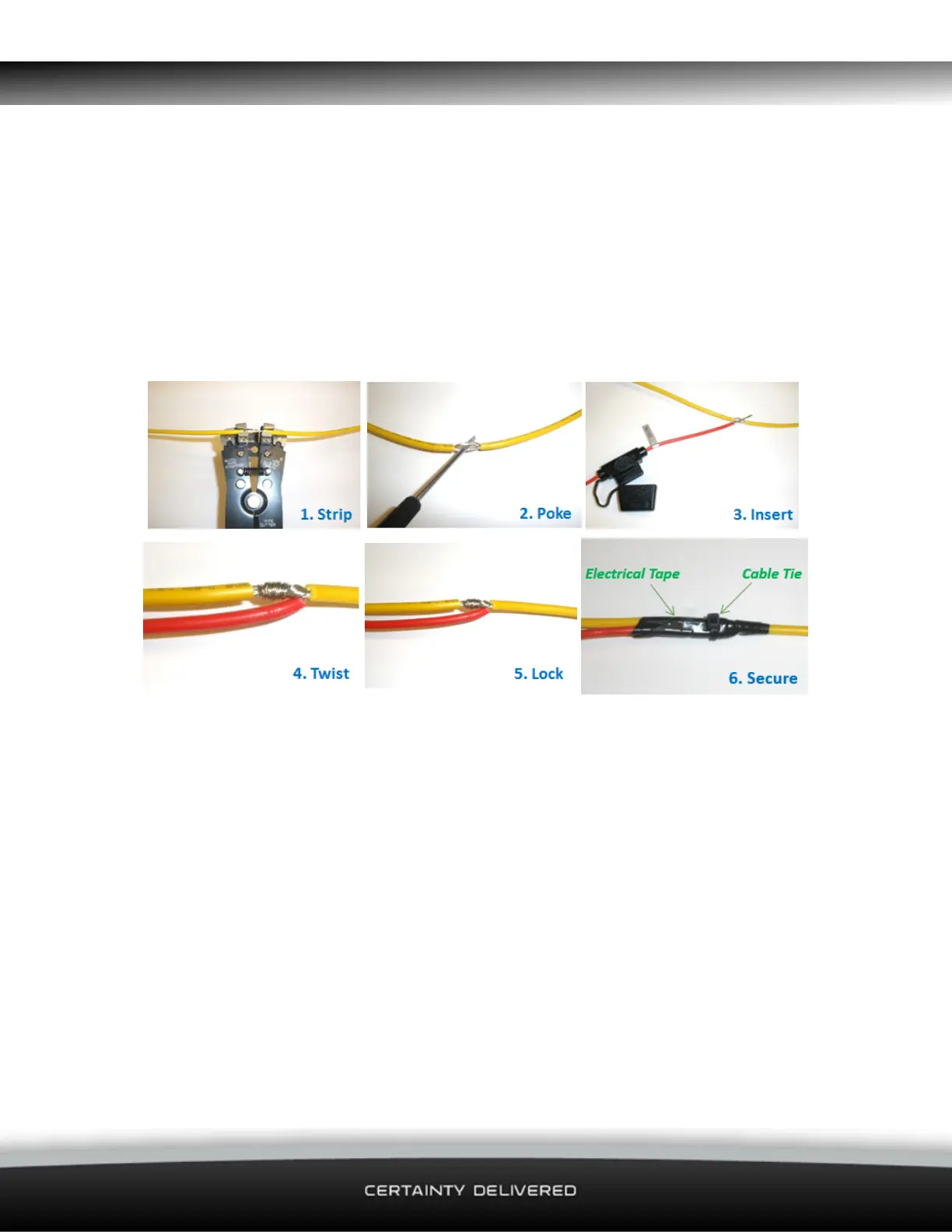

1.7.3 "Poke &Wrap" Solder-less Connections
The recommended method of connecting wires is by soldering. As an alternative, when working
inside the cab or any weatherproof environment, a Poke & Wrap” method for solder-less con-
nections will be acceptable.
NOTE: During the Poke & Wrap” procedure use extreme caution not to allow any exposed
wires to come into direct/indirect contact with the vehicle’s chassis or other exposed wires. It is
recommended to disconnect vehicle’s battery when making electrical connections.
1. Strip Use wire stripping tool to remove about ¾ inch of insulation from the source wire in
the vehicle. Next, strip about 1” of insulation from your fuse holder’s wire.
2. Poke Use a sharp tool to divide exposed strands of the source wire down the middle, cre-
ating a gap.
3. Insert . Insert fuse holder’s stripped wire through the gap in the source wire. Squeeze the
gap shut.
4. Twist Tightly twist exposed lead of the fuse holder around the bare section of vehicle’s
source wire (4-6 turns).
5. Lock Bend the fuse holder wire back onto the wrapped section. This step will act as the
lock for the Poke & Wrap type of wire connection.
6. Secure Apply adequate amount of electrical tape to isolate your connection. Wrap
tightly. Finally, use a zip-tie to completely secure the connection. This will ensure the con-
nection will not vibrate loose over time. Apply tamper seal.
