1.5 Mounting the Antenna
1.5.1 Exposed Install
Using the attached double-sided tape pad, mount the antenna in the upper or lower corner of
the vehicle’s windshield. Tuck the wires behind the A-pillar panel and run under the dash to the
Qube’s location.
1.5.2 Covert Install

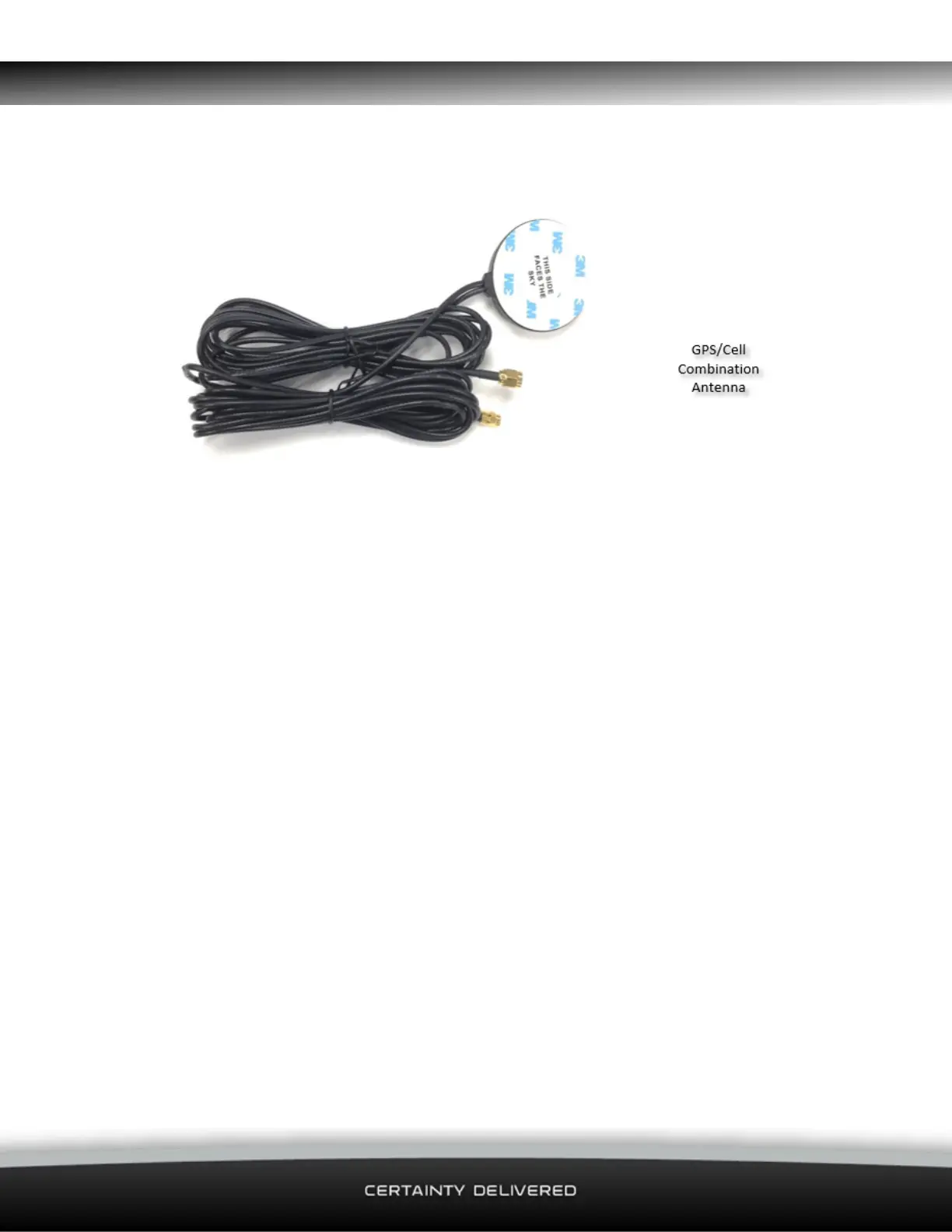

Using the supplied double-sided tape pad, mount the antenna to a flat clean surface under the
passenger side of the dashboard – as high as possible, ideally, just under top dash cover and
positioned horizontally. Make sure the correct side of antenna is facing up, towards the sky.
NOTES:
l Do not mount the GPS antenna under any metal structure or near the vehicle’s radio.
Avoid mounting the antenna under dashboard in areas where metal clipboards, laptops,
loose change, etc may be placed on top of the dash. These items may inadvertently block
the GPS signal to the antenna.
l The combination antenna is NOT waterproof – do not mount outside of the vehicle.
l The antenna must be at least 20 cm (8”) from any person to meet FCC RF exposure
requirements.
*Fleet manager will determine the appropriate method (exposed or covert) for mounting the
antenna.
