6-2 Chapter 6: Circuit Boards

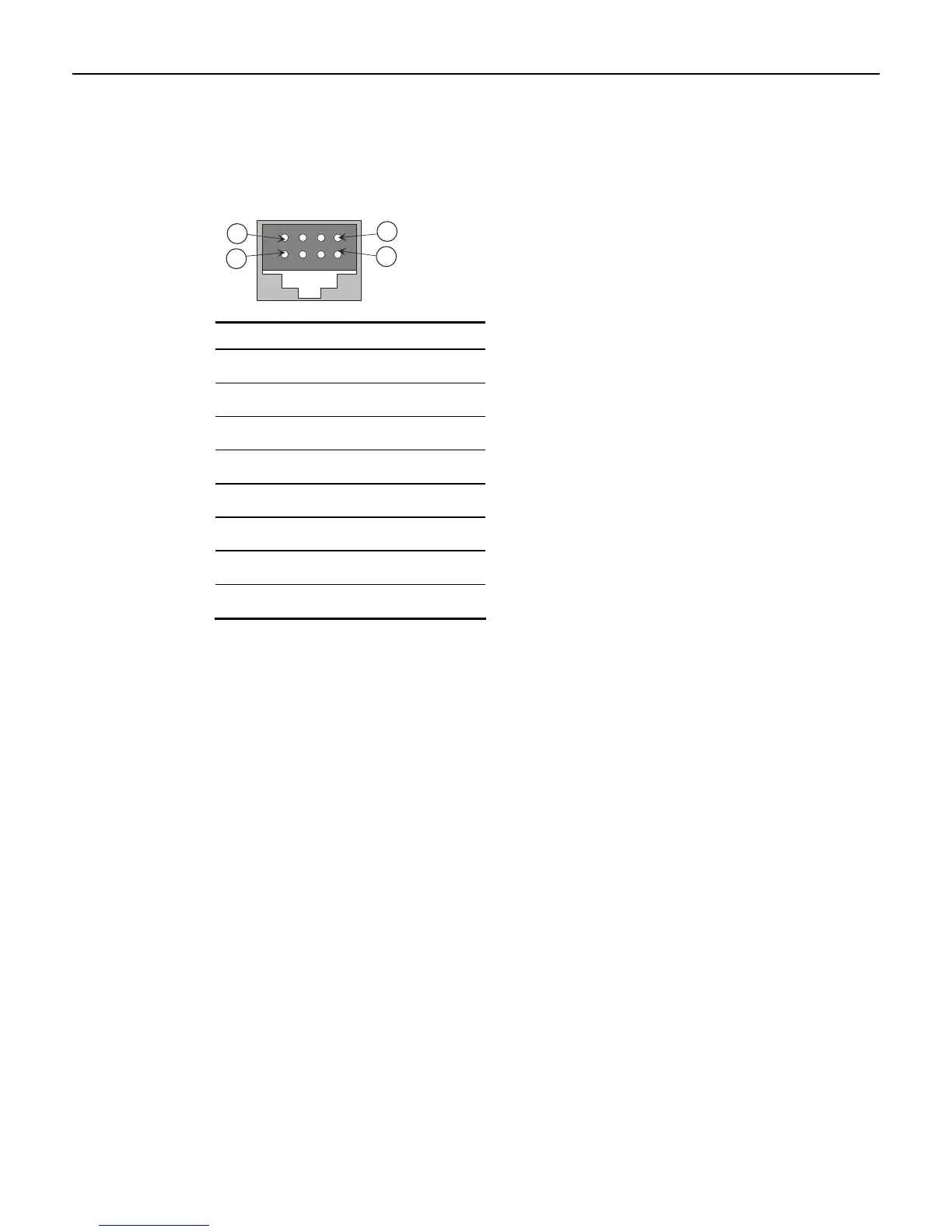

Connectors
USB +Power
1
2
8
7
Pin Function
1 Ground
2 Ground
3 +12V
4 D+
5 +12V
6 D‐
7 Ground
8 Vbus
