Chapter 6: Circuit Boards 6-5

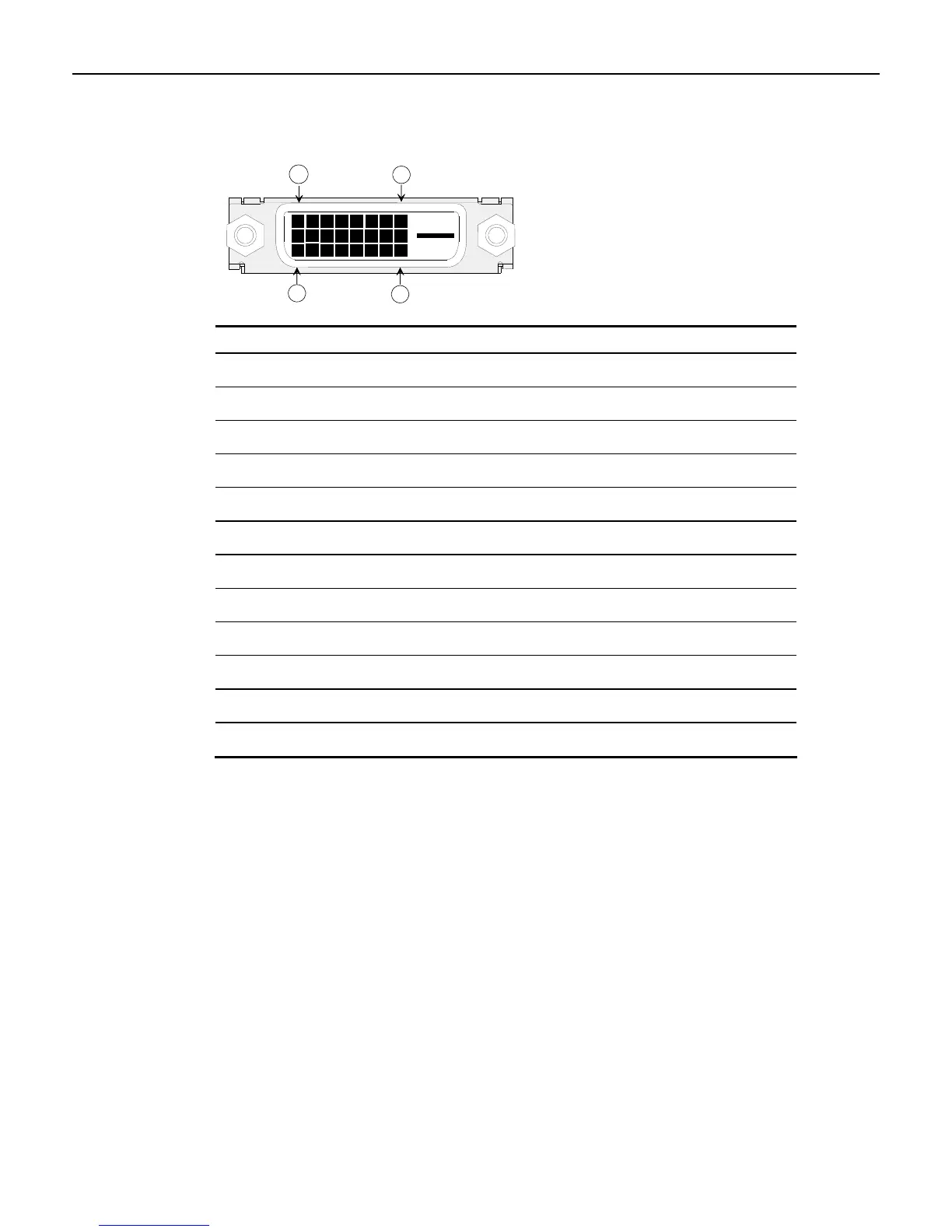

DVI
1
8
17
24
8
16
24
Pin Function Pin Function
1 Data2‐ 13 Data3+
2 Data2+ 14 +5V
3 Data2/4_SHLD 15 GND
4 Data4‐ 16 H_Plug_DET
5 Data4+ 17 Data0‐
6 DDC_CLK 18 Data0+
7 DDC_Data 19 Data0/5_SHLD
8 A_VSYNC 20 Data5‐
9 Data1‐ 21 Data5+
10 Data1+ 22 CLK_SHLD
11 Data1/3_SHLD 23 CLK+
12 Data3‐ 24 CLK‐
