NCR SelfServ 22e ATM Site Prepar
ation
B006-6902-D000
1
9
Front Access UL 291 24 Hours Level 1

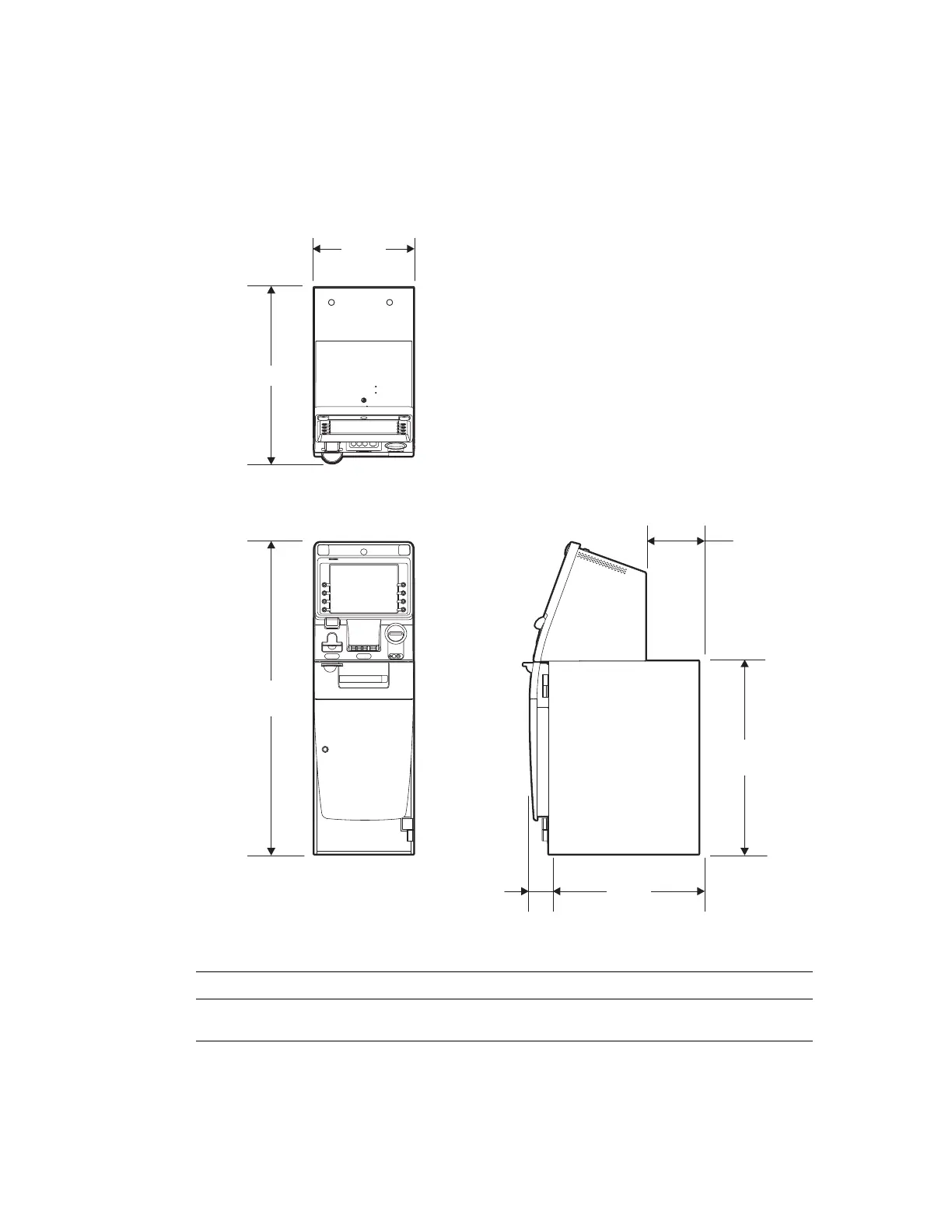

The illustration below shows th
e dimensions an ATM configured with a UL 291
24 Hours
Level 1 security encl
osure.
With Barcode Reader Fitted
Without Barcode Reader Fitted
A
795 mm
(
31.30
in.)
764
mm
(
30.08
in.)
450 mm
(17.70 in.)
680 mm
(26.80 in.)
84 mm
(3.31 in.)
1412 mm
(55.60 in.)
A
241 mm
(9.49 in.)
874 mm
(34.40 in.)
24
26
Table of Contents
Table of Contents
3
Introduction
7
How to Use this Site Preparation Bookset
8
Purpose and Audience
8
Site Compliance
8
Customer Responsibilities
9
Product Identification
10
Siting the Atm
11
Package Dimensions
12
Front Access
12
ATM with Pallet
12
ATM, Pallet and Carton
13
ATM, Pallet, Carton and Lid
14
Rear Access
15
ATM with Pallet
15
ATM, Pallet and Carton
16
ATM, Pallet, Carton and Lid
17
Manoeuvring the Atm into Position
18
Front Access
18
Packaged ATM
18
Unpackaged ATM
19
Rear Access
20
Packaged ATM
20
Unpackaged ATM
20
Atm Dimensions
22
Front Access CEN L/CEN 1
23
Front Access CEN L/CEN 1 with Extended Top Box
24
Front Access UL 291 24 Hours Level 1
25
Front Access UL 291 Business Hours
26
Rear Access CEN L
27
Rear Access UL 291 24 Hours Level 1
28
Facia Heights and Depths
29
Highest Operable Point
29
Height and Depth to Main Facia Items
29
Topmost Viewable Facia Item
31
Facia Item Locations for Voice Guidance
32
Task Lighting
33
Installation and Service Clearances
34
Important Notice to Users
34
Optimum Clearances
35
Front Access CEN L/CEN 1
35
Front Access UL 291 24 Hours Level 1
36
Front Access UL 291 Business Hours
37
Rear Access CEN L
38
Rear Access UL 291 24 Hours Level 1
39
Minimum Clearances
40
Front Access CEN L/CEN 1
40
Front Access UL 291 24 Hours Level 1
41
UL 291 Business Hours
42
Rear Access CEN L
43
Rear Access UL 291 24 Hours Level 1
44
Requirements for the Floor
45
Floor Covering
45
Floor Loading
45
Front Access
45
Rear Access
45
Bolts and Bolt Holes
46
Security Bolts - CEN Grade L/CEN 1 and UL 291 24 Hours Level 1
46
Security Bolts - UL 291 Business Hours
46
Bolt Holes
46
Front Access CEN Grade L/CEN 1
47
Front Access UL 291 24 Hours Level 1
48
Front Access UL 291 Business Hours
49
Rear Access CEN Grade L
50
Rear Access UL 291 24 Hours Level 1
51
Cable Entry Holes
52
Front Access
52
Rear Access
53
Video Camera
54
Ambient Lighting
54
Decals
55
Card Reader
56
Decal Dimensions
56
Suggested Designs
56
Receipt Exit
57
Decal Dimensions
57
Cash Exit
58
Decal Dimensions
58
Advert
59
Without Camera Lens
59
With Camera Lens
59
With Consumer Awareness Mirrors
59
With Camera Lens and Consumer Awareness Mirrors
59
Decal Placement
60
