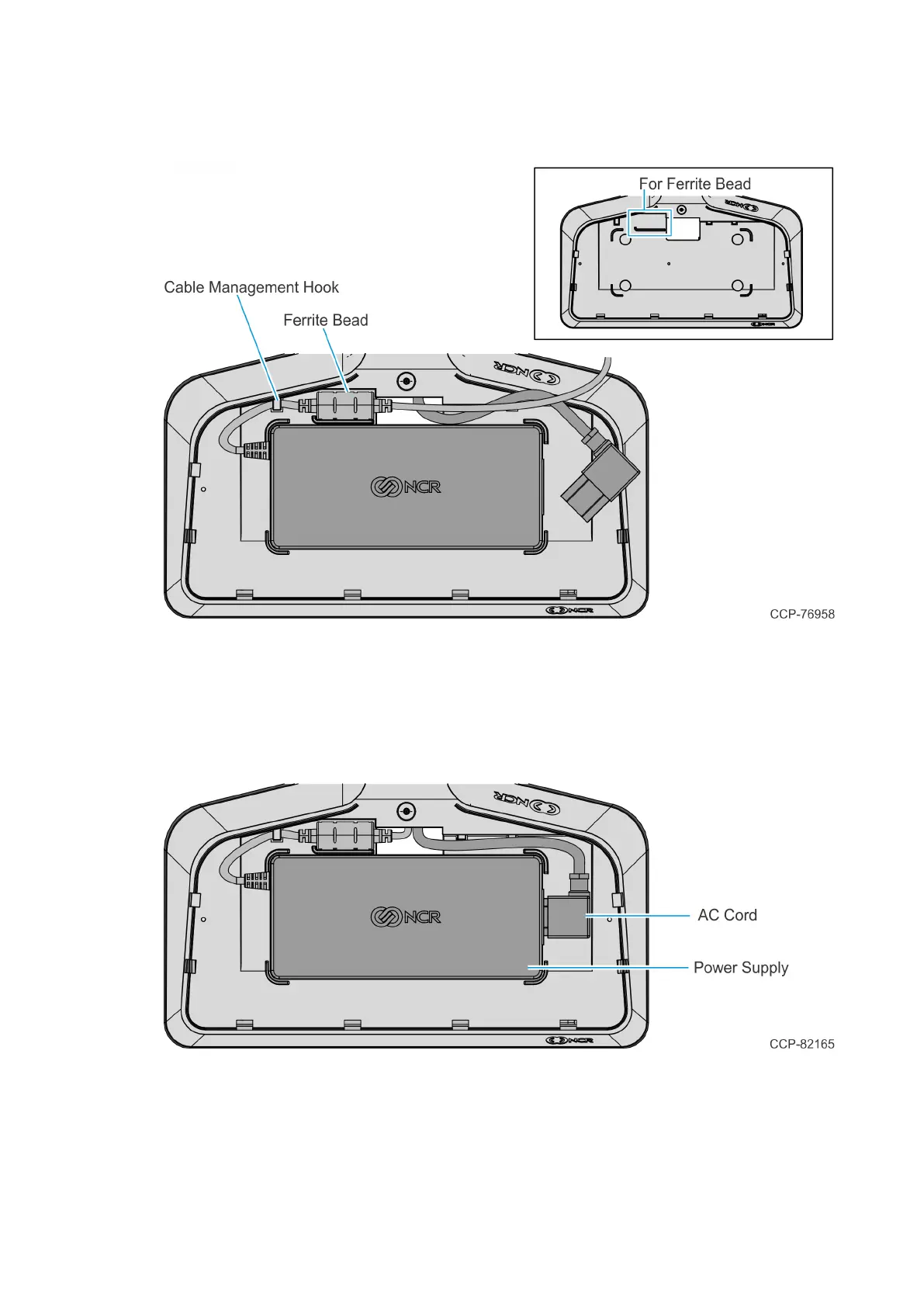

5. Set the Ferrite Bead in the small recess on the Base and secure the Cable under the
Cable Management Hook.
6. Route the Power Supply Cable.
a. Insert the DCConnector of the the Power Supply Cable down through the
Base opening.
b. On the underside of the Base, pull the DCConnector such that the excess
cable is under the Base.
7. Connect the ACCord to the Power Supply.
