AE- 1 5 0 s y s t e m – U s e r M a n u a l
23

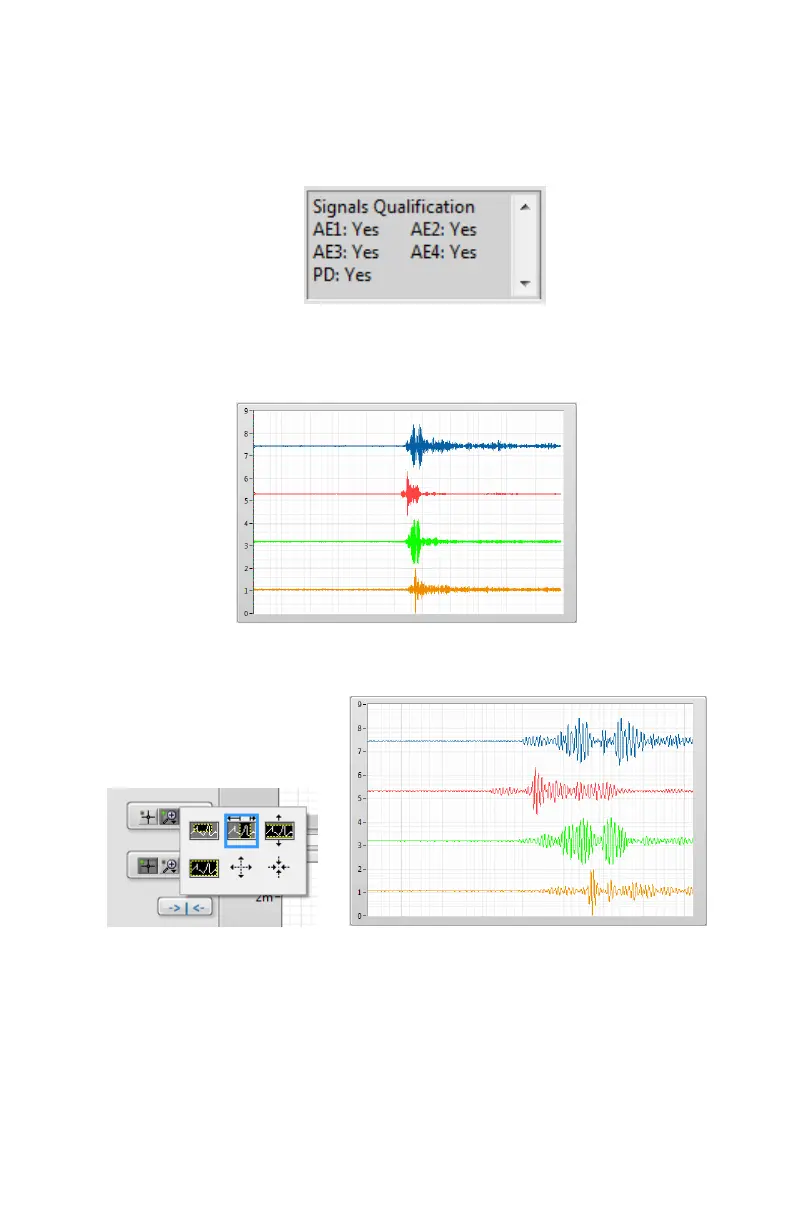

To confirm signal denoising qualification, click on the Measurement
tab, and then check the Signals Qualification section. Refer to next
figure as an example.
For non-qualified signals, increase averaging at the acquisition step.
The next figure illustrates typical results where the acoustic
acquisitions are shown.
Use the horizontal magnifier tool to zoom in on the beginning of the
acoustic wave trains.
Times of arrival
In the Calculator tab, click on the Auto-TOA button (Times Of Arrival). A
cursor will automatically be moved at the beginning of each wave train.
