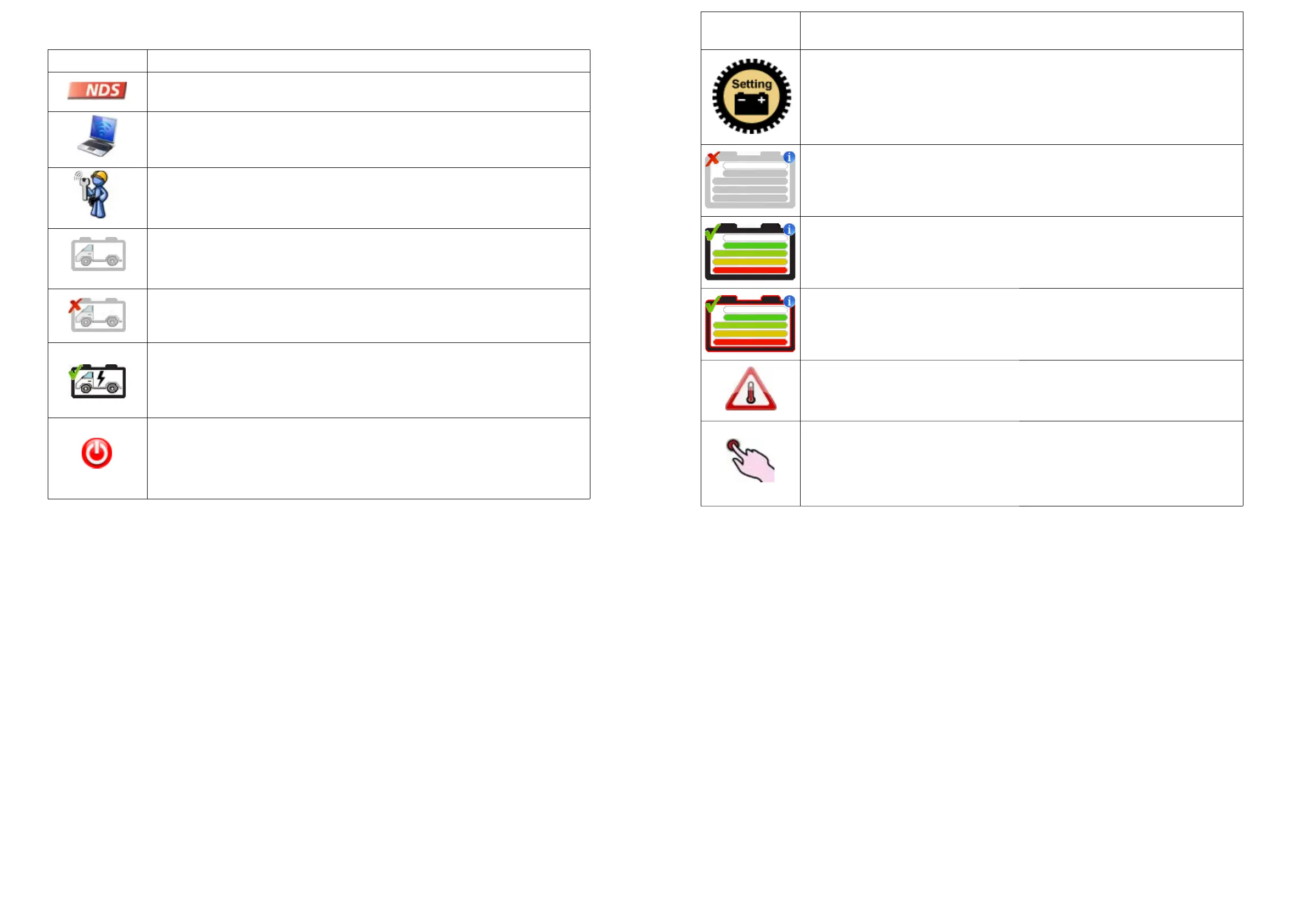

5.2 Icons' meanings and functions
ICON MEANING AND FUNCTIONS
NDS ENERGY S.r.l. company logo, if pressed and held displays the
company’s complete data.
Represents the Automatic operation mode
Represents the Manual operation mode and, if clicked, allows to go
back to the Automatic Mode.
Engine battery not present.
Disconnected engine battery, if clicked on displays the battery
voltage.
Charging engine battery, if clicked on displays the battery voltage.
Power off icon, if clicked on turns off the display.
15
ICON MEANING AND FUNCTIONS
Settings Key, if quickly clicked on allows to access commands, if
pressed and held allows to access the initial settings menu.
Leisure battery deactivated with state of charge indication, if clicked
on quickly within its area, the window displaying its voltage and
current activates; if pressed and held, the Manual mode activates or
the battery is selected in case the Manual mode is already on.
Leisure battery connected to the loads in Automatic mode with state
of charge indication, if clicked on quickly within its area, the window
displaying its voltage and current activates; if pressed and held, the
Manual mode activates.
Leisure battery connected to the loads in Manual mode with state of
charge indication, if clicked on quickly within its area, the window
displaying its voltage and current activates; if pressed and held, the
Manual mode activates.
Overheating Battery warning
Icon confirming that the display has been pressed
16
