Installing the Battery
Installing the Battery in your Handset
To install the battery in your handset (Figure 7: Installing the Handset Battery):
1. Slide the battery cover off of the handset.
2. Insert the battery lead into the battery connector. Be sure to observe the polarity of the connection by lin-
ing up the black dot with the black wire.
3. Turn the battery around to it fits into the battery compartment.
4. Slide the battery cover back onto the handset until it snaps into place.

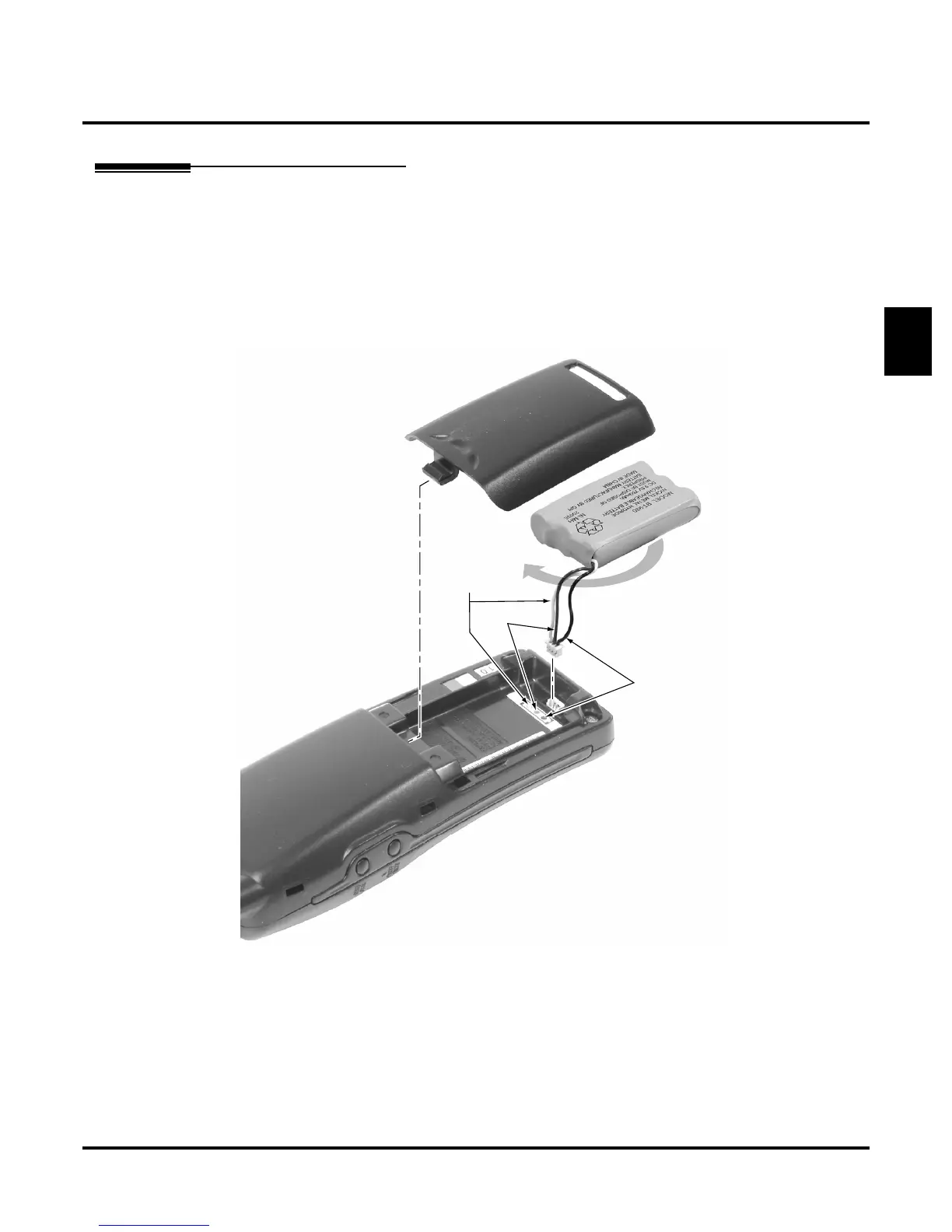

Figure 7: Installing the Handset Battery
80683 - 2
White wire
Red
wire
Black wire
After inserting jack,
turn battery to fit into
battery compartment
