NEC M282X - ❸ Cabinet Dimensions

142
8. Appendix
368 (14.5)
291 (11.46)
107.5 (4.23)
130 (5.12)
150 (5.91)
200 (7.87)
175 (6.89)
98 (3.9)
108 (4.3)
80 (3.15)

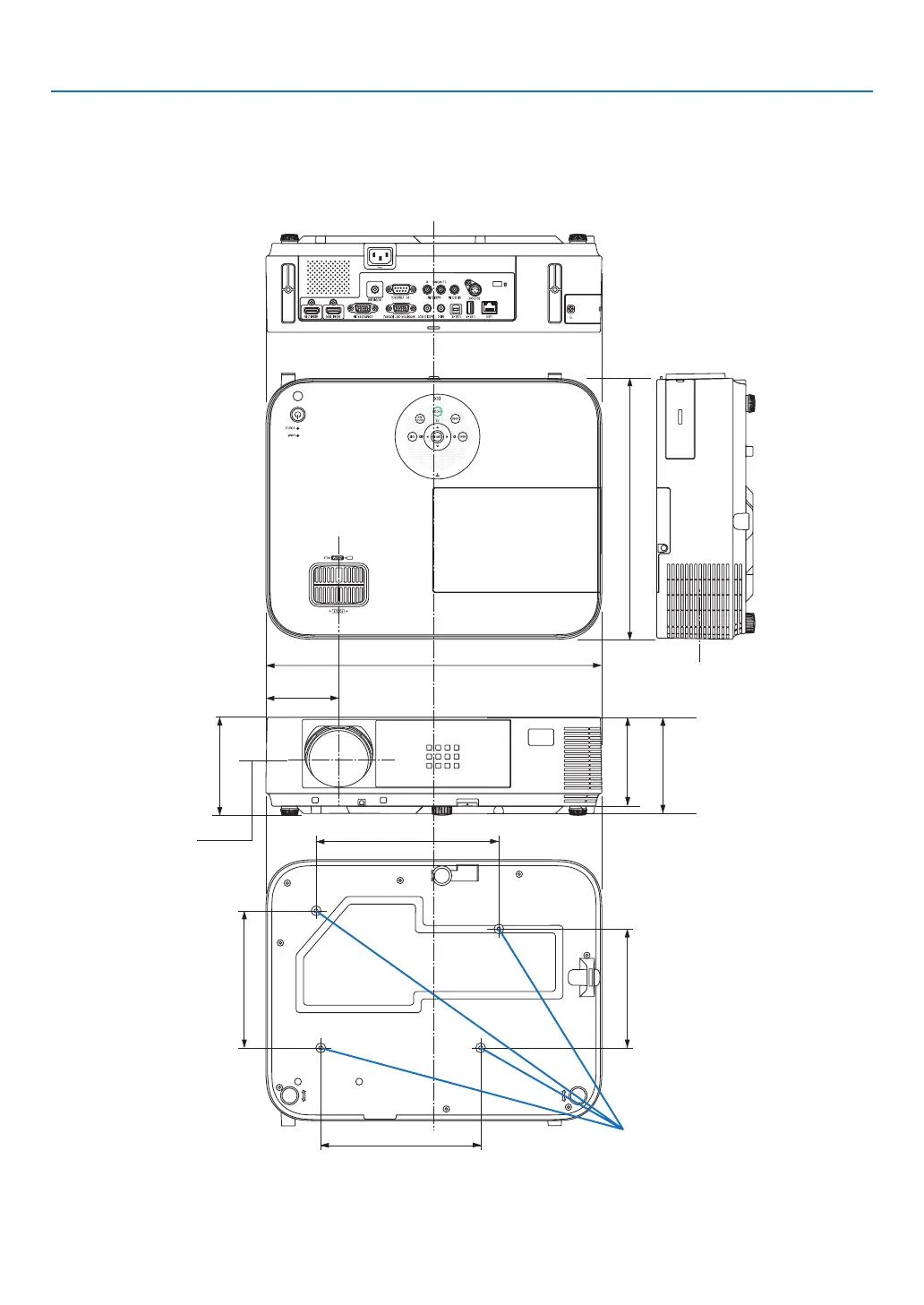

❸ Cabinet Dimensions
[M402W/M362W/M322W/M402X/M362X/M322X/M282X]
Lens center
Lens center
Holes for ceiling mount
Unit:mm(inch)
