2. Installation and Connection
17

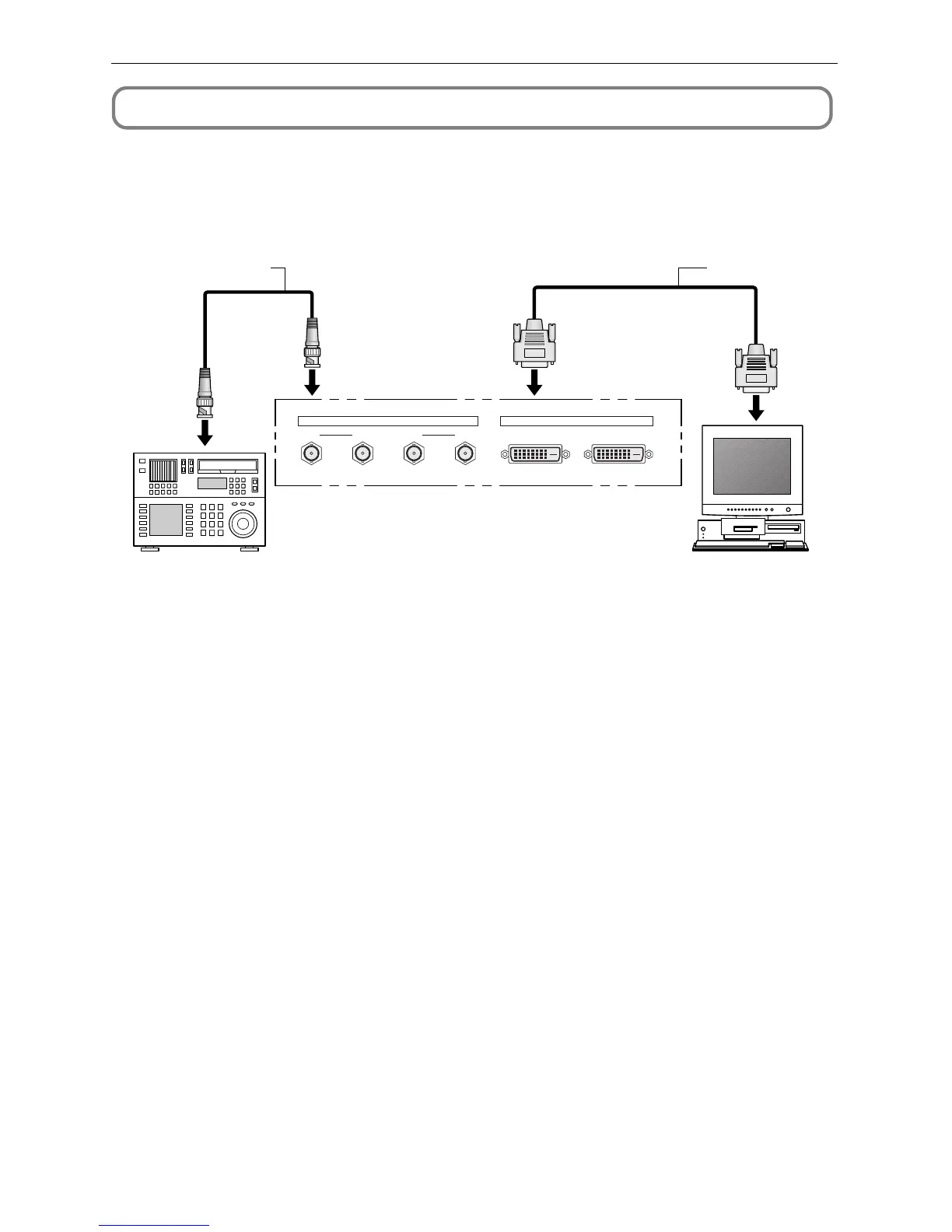

2-2. Connecting the image input terminals
The projector has two image input terminals (HDSDI input terminal and DVI-D input terminal).
• HDSDI A/B/C/D input terminal ------------------------- Inputs serial digital images from a cinema server or an image device such
as HDSDI or VTR.
• DVI-D A/B input terminal (DVI A/DVI B) ------------- Inputs digital RGB signals from a PC.
Cinema server
HDSDI VTR
PC
AB
SDI
DVI
CD A B
75Ω coaxial cable DVI-D signal cable
NC-80LB01
(SDI-A/SDI-B/SDI-C/SDI-D)
To Next Page
