1. What’s in the Box? and the Names of the Projector Parts
1-3. Names of the Projector Parts

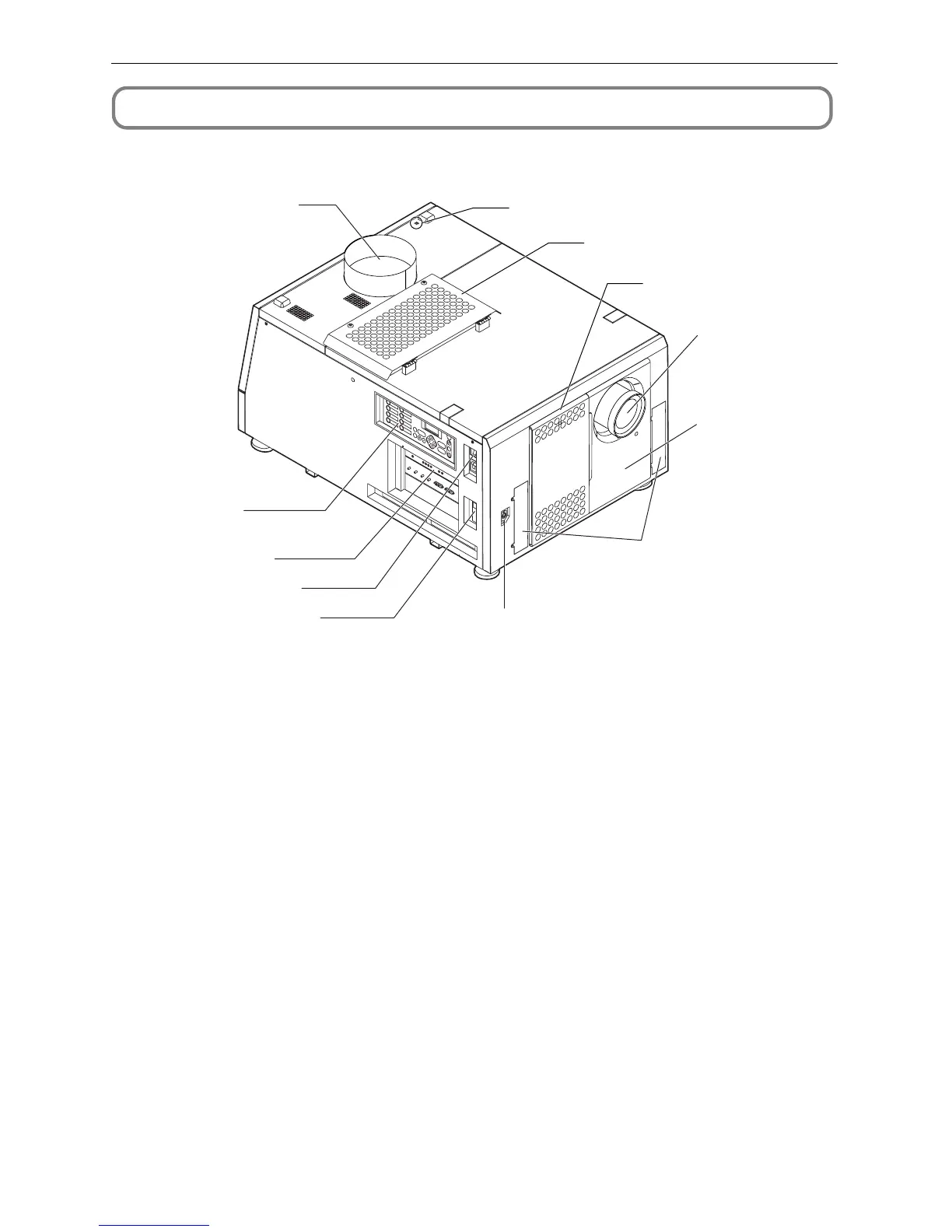

1-3-1. Front of the Projector
1
2
3
4
5
L
A
M
P
M
E
N
U
E
N
T
E
R
D
O
U
S
E
R
K
E
Y
L
O
C
K
E
X
IT
I
M
B
6
7
8
1
6
7
8
2
3
4
9
12
10
11
5
1. Air outlet (for cooling the lamp)
Connects to an exhaust device to exhaust heat from the lamp. Please contact your dealer/distributor to install the exhaust
device.
2. Control panel
On the control panel, power to your projector is turned on or off, titles are selected, and various adjustments are made of
projected screen. (See page 14)
3. Connection terminals
Various image signal cable are to be connected here. (See page 13)
You can expand signal input terminals by installing the optional media block (NC-80MB01) or internal multi-media switcher
(MM3000B).
Contact your dealer/distributor for more information on the NC-80MB01 and MM3000B.
4. Projector power switch (upper), lamp power switch (lower)
The projector enters the standby state when you turn on the lamp power switch and projector power switch while the AC
power is on.
5. Ethernet port
The connector for external devices such as a cinema server or a PC installed with the DCC. (See page 13)
6. Buzzer
The buzzer rings when the power is turned on or an error has occurred.
7. Air inlet (for cooling the lamp)
The air inlet for cooling the lamp. Do not cover.
An air filter is attached over the air inlet to prevent dust. Refer to “5-3. Replacing the Air Filter” (page 43) on how to replace
the air filter.
8. Air inlet (for cooling the projector electric circuits)
The air inlet for cooling the projector electric circuits. Do not cover.
An air filter is attached over the air inlet to prevent dust. Refer to “5-3. Replacing the Air Filter” (page 43) on how to replace
the air filter.
To Next Page
