1. Introduction
Bottom
Carrying the Projector
Always carry your projector by the handle.
Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the
projector.
When moving the projector or when it is not in use, cover the lens with the lens cap.
Phillips-head screwdriver
(not supplied)
Lamp Cover
(
→
page 125)
Filter cover (Rear [REAR])
(
→
page 123)
Screw
Carrying handle

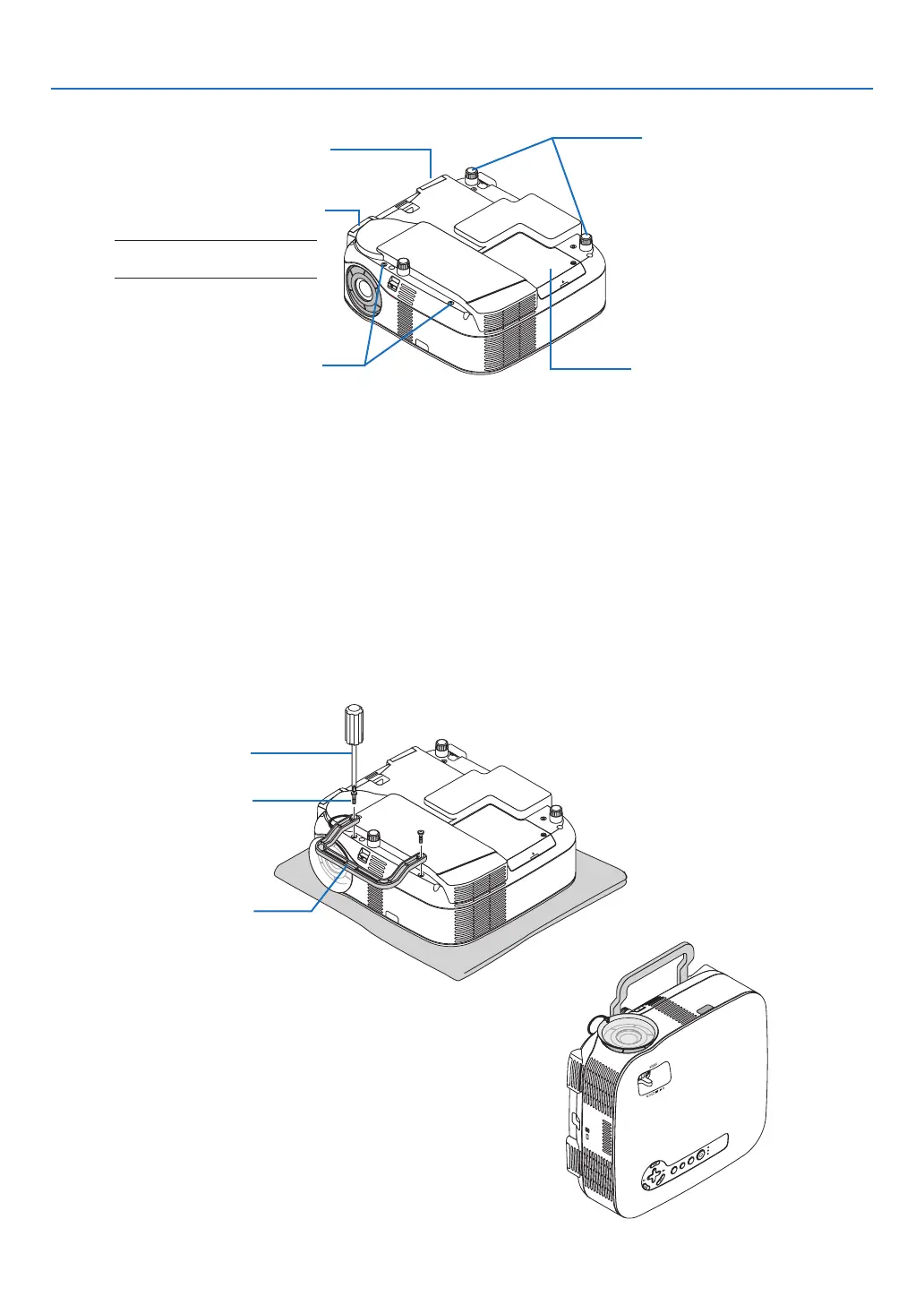

Attaching the supplied carrying handle
You can carry the projector by attaching the supplied carrying handle securely to the projector.
To attach the supplied carrying handle, use a Phillips-head screwdriver and the supplied two screws.
Place a soft cloth on the working surface before turning the projector over to prevent scratching the top cover.
Make sure that the carrying handle is attached with correct orientation as shown below.
CAUTION
• When carrying the projector by the carrying handle, make sure the
two screws that attach the carrying handle to the projector cabinet
are tight.
• Use the supplied lens cap to protect the lens surface when carrying
the projector.
U
S
B
L
A
M
P
S
T
A
T
U
S
S
O
U
R
C
E
A
U
T
O
A
D
J
U
S
T
3D
R
E
F
O
R
M
S
E
L
E
C
T
Filter cover (Front [FRONT])
(
→
page 123)
NOTE: “FRONT” and “REAR” are
inscribed inside the filter cover.
Screw hole for attaching the
carrying handle (two locations)
Rear Foot
(
→
page 27)
