2. Installation and Connections

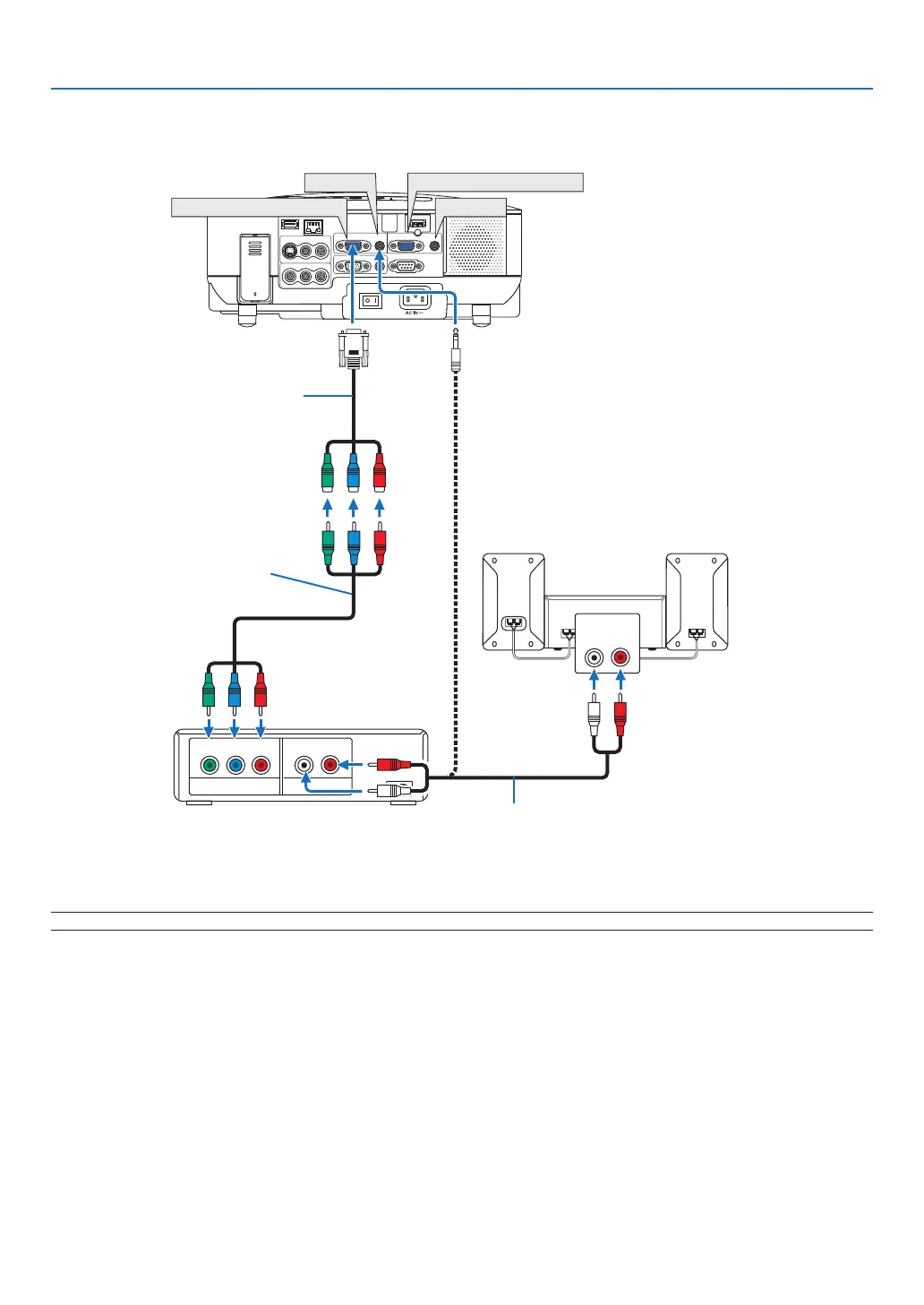

Connecting Your DVD Player with Component Output
DVD player
Audio Equipment
Audio cable (not supplied)
Component video RCA

3
cable (not supplied)
TIP: A component signal will be automatically displayed. If not, from the menu, select [SETUP]
→
[OPTIONS]
→
[SIGNAL SE-
LECT]
→
[COMPUTER 1 (or 2)]
→
[COMPONENT].
NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements.
Optional 15-pin - to - RCA (female) x 3
cable (ADP-CV1E)
