NEC PA571W User Manual

136

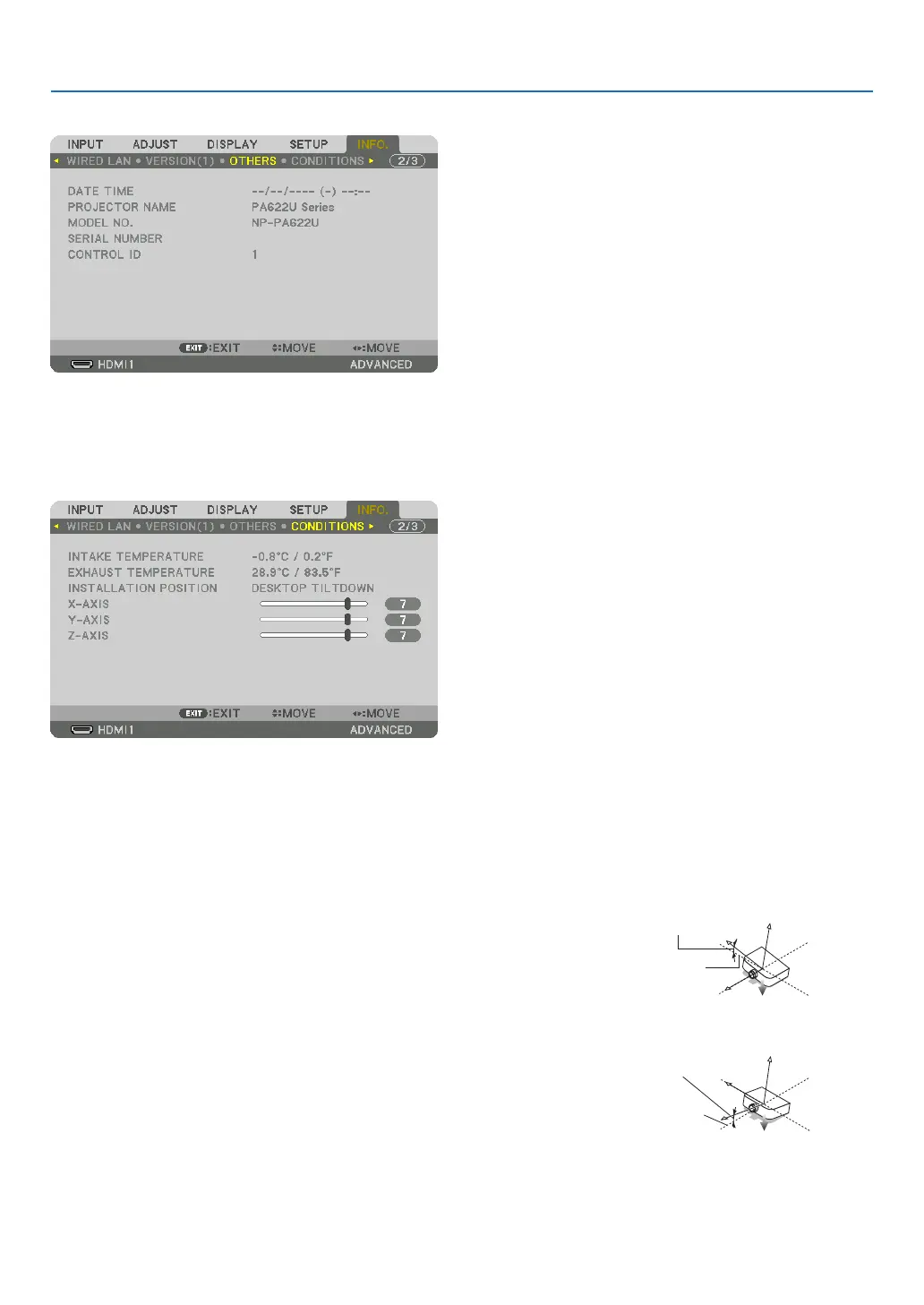

5. Using On-Screen Menu
[OTHERS]
DATETIME PROJECTORNAME
MODELNO. SERIAL NUMBER
CONTROLID(when[CONTROLID]isset)
[CONDITIONS]
INTAKETEMPERATURE EXHAUSTTEMPERATURE
INSTALLATIONPOSITION X-AXIS
Y-AXIS Z-AXIS
AbouttheX-AXIS,Y-AXISandZ-AXISCONDITIONS
* ArrowdirectionoftheZ-AXISinthegurerepresentsthetopoftheprojector.
X-AXIS ������������������� Display the projector image at an angle of −100 – +100
degrees to the horizontal in the X-axis direction�
X-AXISvalueof
theprojector
Horizontalplane
X-axis
Gravitydirection
Y-AXIS ������������������� Display the projector image at an angle of −100 – +100
degrees to the horizontal in the Y-axis direction�
Y-AXISvalueof
theprojector
Horizontalplane
Y-axis
Gravitydirection
