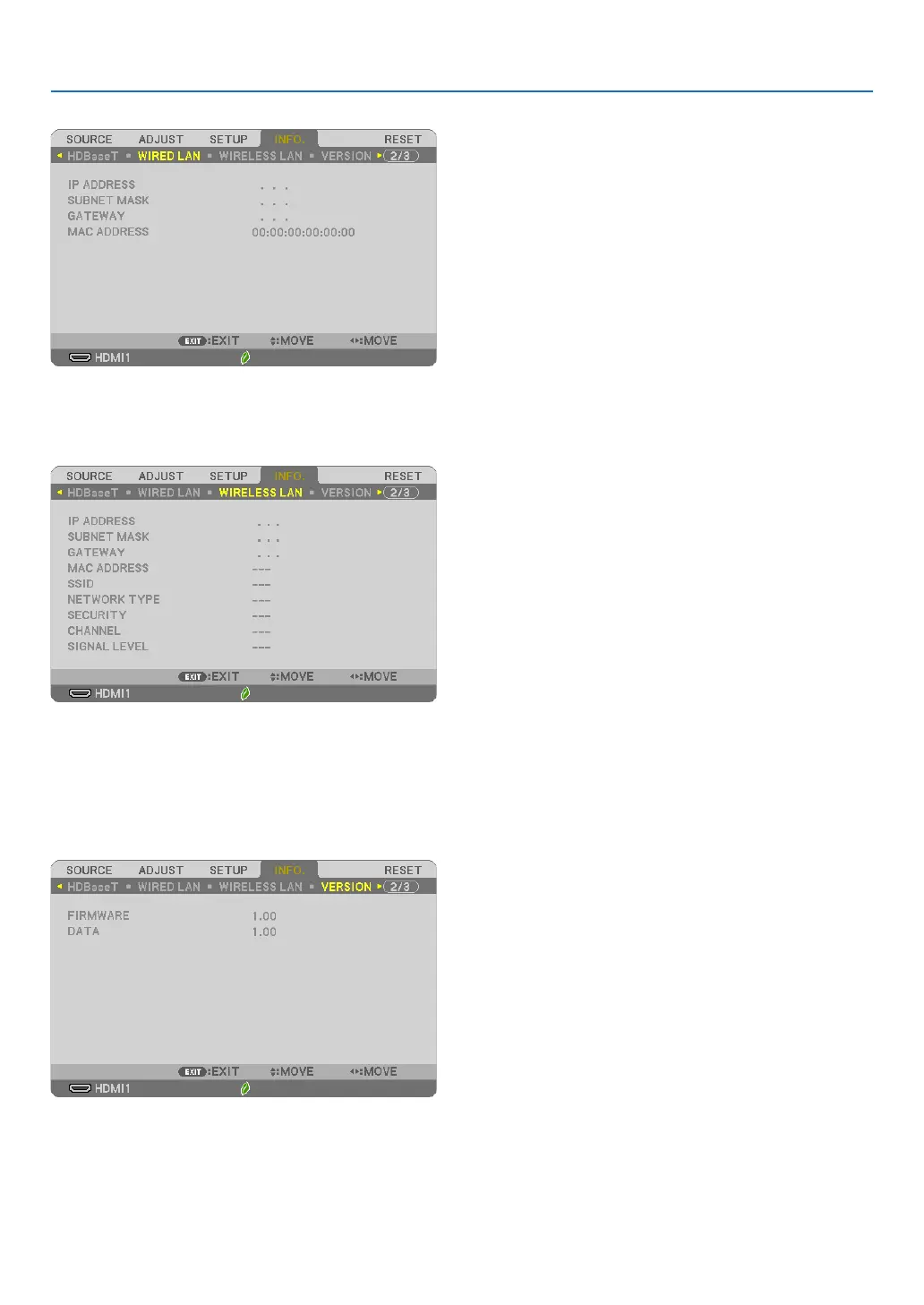

5. Using On-Screen Menu

[WIRED LAN]

[IPADDRESS] [SUBNETMASK]

[GATEWAY] [MACADDRESS]

[WIRELESS LAN]

[IPADDRESS] [SUBNETMASK]

[GATEWAY] [MACADDRESS]

[SSID] [NETWORKTYPE]

[SECURITY] [CHANNEL]

[SIGNALLEVEL]

[VERSION]

[FIRMWARE]Version

[DATA]Version
