E-51
Screen Size 1106(H)622(V) mm
43.5"(H)24.5"(V) inches
diagonal 50"
Installed AR (Anti-Reflection) Filter
Aspect Ratio 16 : 9
Resolution 1365(H)768(V) pixels
Pixel Pitch 0.81(H)0.81(V) mm
0.032"(H)0.032"(V) inches
Color Reproduction 256 levels, 16,770,000 colors
Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan)
Vertical : 50.0 to 120 Hz
(automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog) mini D-sub 15-pin1
Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-I 24-pin1*
3
(Not compatible with analog input)
Video
Visual 1 BNC1
Visual 2 RCA-pin1
Visual 3 S-Video: DIN 4-pin1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1*
1
Visual 2 BNC (Y, PB[CB], PR[CR])1*
1,
*
2
Audio Stereo RCA3 (Selectable)
External Control D-sub 9-pin1 (RS-232C)
Sound output 9W+9W at 6 ohm
Power Supply AC100-240V 50/60Hz
Current Rating 8 A (maximum)
Power Consumption 480W (typical)
Dimensions 1222 (W)736 (H)96(D) mm
48.1 (W)30 (H)3.8 (D) inches
Weight 44.5 kg / 98.0 lbs (without stand)
Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation)
Altitude 0 to 2800 m / 0 to 9180 feet
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation)
Altitude 0 to 3000 m / 0 to 9840 feet
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ OSM control
Remote Control Functions
Power on/off, Input source select, OSM
control,Volume up/down, Cursor (UP,
DOWN,LEFT, RIGHT), Pointer, Zoom up/
down, Off timer, Wireless/ Wired remote
control
OSM Functions
Picture (Contrast/Brightness/Sharpness/
Color/Tint/Picture mode/Noise reduction/
Color temperature/White balance/Gamma/
Low tone/Color tune), Audio (Bass/Treble/
Balance/Audio input), Image Adjust (Aspect
mode/V-Position /H-Position/V-Height /H-
Width/Auto Picture/Fine picture/Picture
adjustment), Option1 (OSM/BNC Input/D-
Sub Input/RGB Select/HD Select/Input Skip/
All Reset), Option2 (Power management/
Cinema mode/Long life [PLE, Orbiter,
Inverse, White, Screen wiper]/Gray level/
Picture size), Option3 (Timer Power on
mode/Control lock/IR Remote/Loop out/ID
number/Video wall [Divider, Position, Disp.
mode, Auto ID, Image adjust, Power on
delay, PLE link, Timer]), Advanced OSM,
The features and specifications may be subject to change without
notice.
*
1
HD/DVD/DTV input signals supported on this
system
480P (60 Hz) 480I (60 Hz)
525P (60 Hz) 525I (60 Hz)
576P (50 Hz) 576I (50 Hz)
625P (50 Hz) 625I (50 Hz)
720P (60 Hz) 1035I (60 Hz)
1080I (50 Hz) 1080I (60 Hz)
*
2
The 5-BNC connectors are used as RGB/PC2 and
HD/DVD2 input. Select one of them under “BNC
INPUT”.
*
3
Not compatable with HDCP.

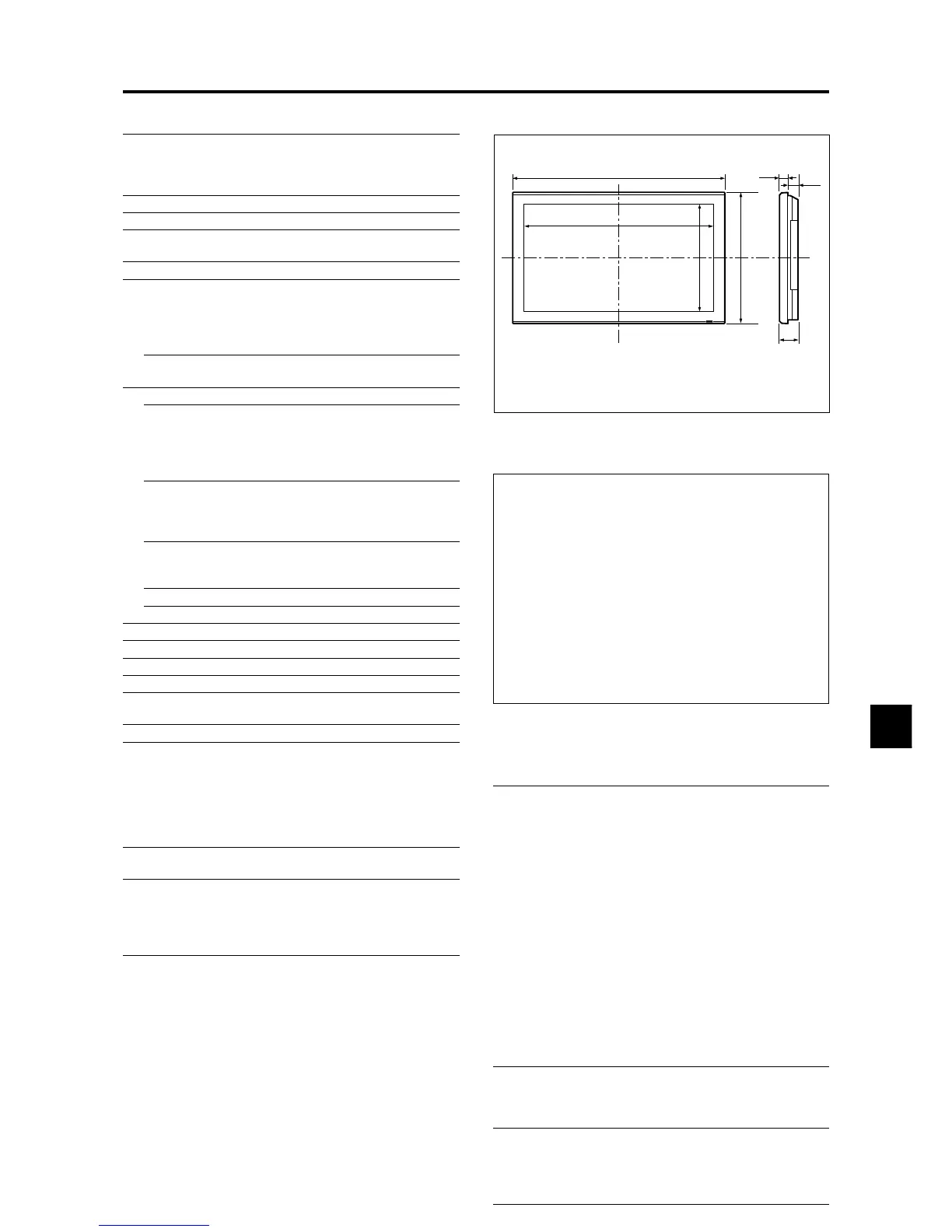

Units are in mm
(inch)
96
(3.8")
38
(1.5")
58
(2.3")
1222 (48.1")
736 (30")
1106 (43.5")
622 (24.5")
50XGA
Language*, Color system, Source
information
*English, German, French, Italian, Spanish,
Swedish, Chinese
Other Features Motion compensated 3D Scan Converter
(NTSC, PAL, 480I, 576I, 525I, 625I,
1035I, 1080I), 2-3 pull down Converter
(NTSC, 480I, 525I, 1035I, 1080I), 2-2
pull down Converter (PAL, 576I, 625I,
NTSC, 480I, 525I), Digital Zoom
Function (100-900% Selectable), Video
Wall 2×2/3×3 multi screen, Self
Diagnosis, Anti Image Burn (PLE
LOCK1~3, INVERSE, WHITE,
ORBITER (Auto1,2/Manual), SCREEN
WIPER), Color Temperature select (high/
mid/mid low/low, user has 4 memories),
Control lock (Except power SW), Auto
Picture, Input Skip, Color Tune, Low
Tone (3 mode), Auto ID, Programmable
Timer, Gamma Correction (4 mode),
Loop through interface, Plug and play
(DDC1, DDC2b, RGB3: DDC2b only)
Accessories Remote control with two AAA batteries,
Power cord, User’s Manual, Safety metal
fittings, Screws for safety metal fittings,
Ferrite cores, Bands, Cable clamps
Regulations
Meets class A requirements (EN55022,
EN61000-3-2, EN61000-3-3, EN55024)
Meets Low Voltage Directive
(EN60950, SEMKO Approved)
Meets AS/NZS 3548 Class A
