NEC PX803UL User Manual

NEC Display Solutions of America, Inc.
PX803UL/PX1004UL Installation Guide
Desktop and Ceiling Mount Rev 1.2
www.necdisplay.com PX803UL/PX1004UL Page 12 of 12
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT BNC 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT BNC(CV) 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT BNC(Y/V) 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H A1H A9H
INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H A6H AEH
INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 20H 28H
INPUT SELECT SLOT 02H 03H 00H 00H 02H 01H ABH B3H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex

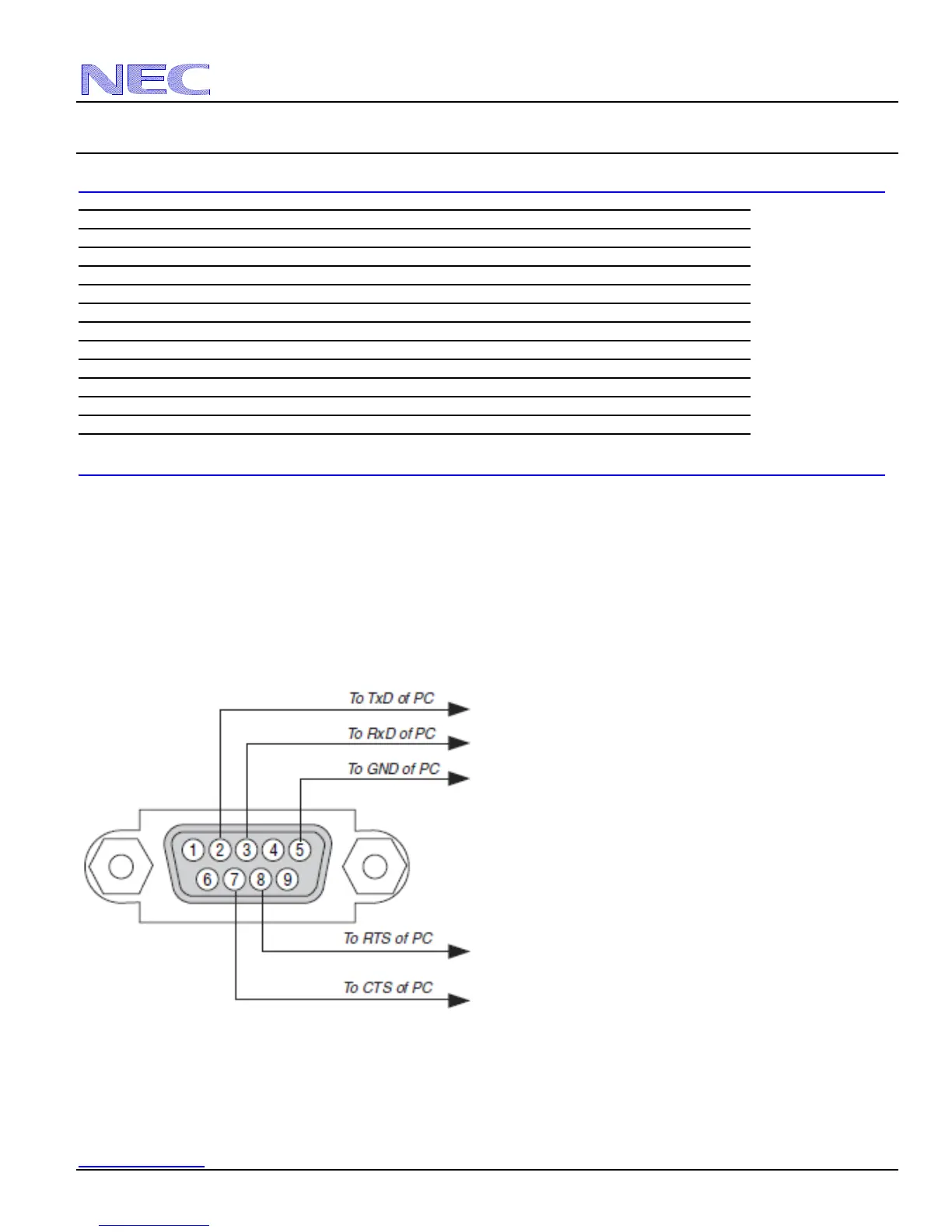

PC Control Connector (D-Sub 9P)
Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.
Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

NEC PX803UL Specifications

General

Matrix size	0.67 \
Native aspect ratio	16:10
Projection distance	0.86 - 118 m
Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 5:4, 15:9, 16:10, 16:9, 17:9
Contrast ratio (typical)	10000:1
Screen size compatibility	40 - 500 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-40 - 40 °
Light source type	Laser
Service life of light source	20000 h
Power source	AC
Power consumption (standby)	- W
Power consumption (typical)	850 W
3D	Yes
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
DVI port	No
Audio (L/R) in	0
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	-
Noise level	40 dB
Certification	CE, ErP, TÜV GS
Noise level (economic mode)	35 dB
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Remote control type	IR
Focus	Auto
Focal length range	- mm
Optical disc player type	Not included
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	577 mm
Width	500 mm
Height	211 mm
Weight	28000 g
