Cabinet Dimensions

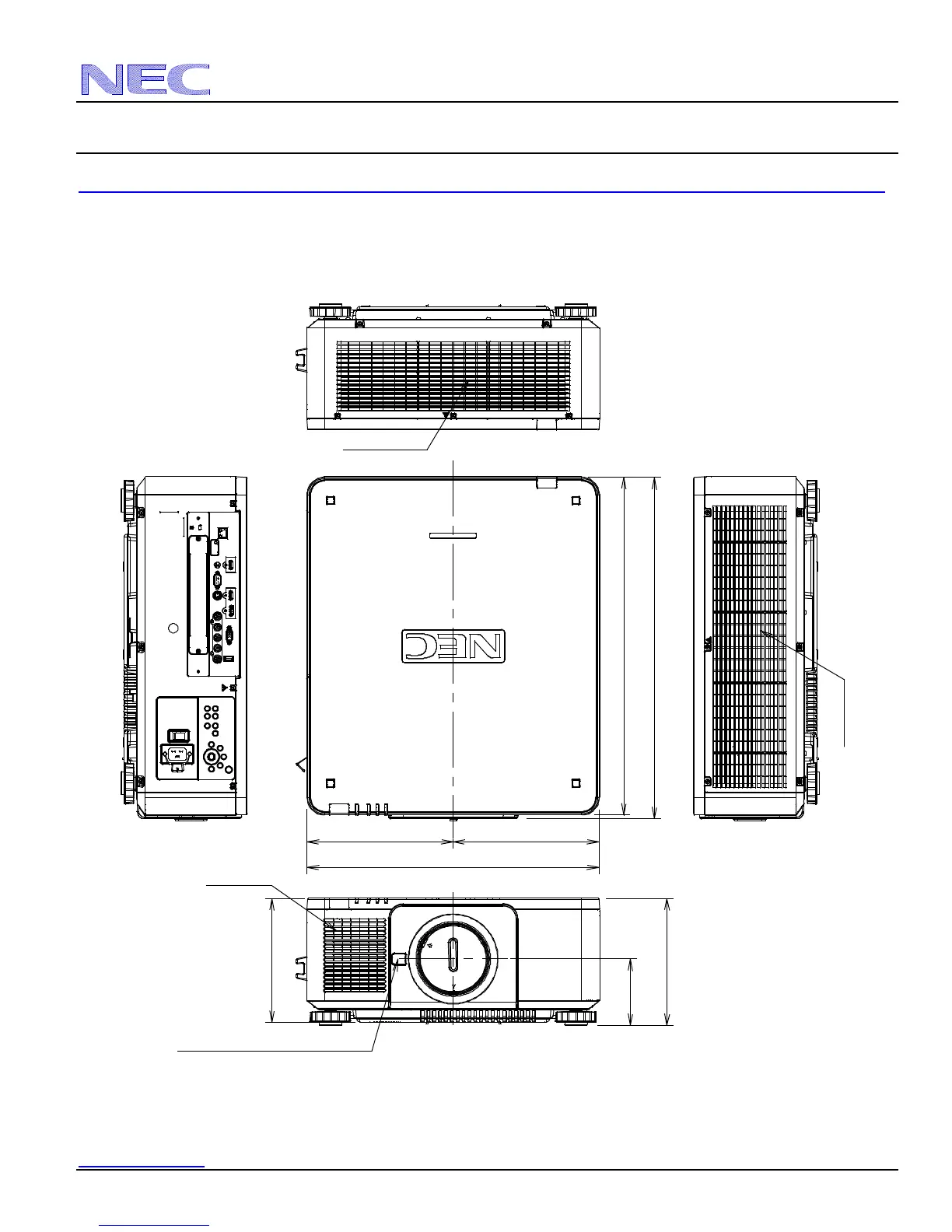

The following diagrams show the cabinet dimensions for the PX803UL and PX1004UL.
Dimensions are in inches. For millimeters multiply by 25.4.
Note: Dimensions below shown without a lens
22.65
22.89
9.82 9.82
19.63
8.31
4.46
8.49
INTAKE
INTAKE
EXHAUST
LENS RELEASE BUTTON
To Next Page
