NEC SV9100 Setup Guide

Issue 1.0
SV9100 Dialer Setup Guide (Multiline Telephone) 2-9
2.1 The Multiline Telephone Application Status
The Multiline Telephone application Status is a drop down status notification
providing quick viewing of the application status including “online” or “offline”
state, Call information during active call and voicemail indication, if there is a
pending message. Typically, the area is hidden and the user can select it by
clicking on the “NMLT” button on the top left hand corner.
Note that the notification also shows the call counter during the active call for both
extension and trunk calls as shown.
If the device is connected for debugging purpose, then the last item “USB
debugging connected” appears. This is useful for retrieving the debug logs, if
required.

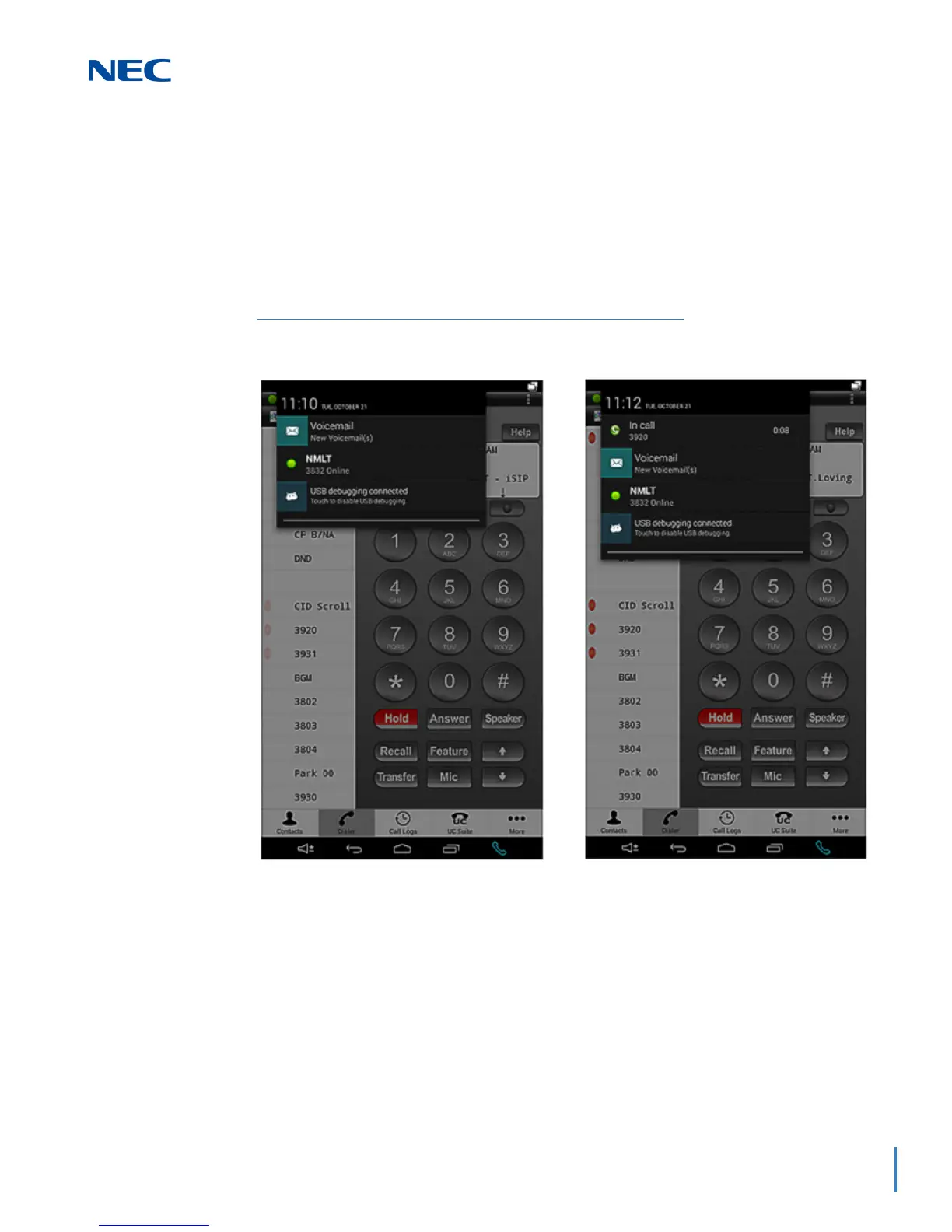

Figure 2-4 Multiline Telephone Application Status Notification Area

NEC SV9100 Specifications

General

Unified Messaging	Yes
VoIP Support	Yes
SIP Support	Yes
VoIP Protocols	SIP, H.323
Mobility	Yes
Type	IP-PBX
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10% to 90% (non-condensing)
System Type	Hybrid (Supports Analog, Digital, and IP)
