Disassembly and Reassembly 3-15
DC/DC Board
Use the following steps to remove the DC/DC board.
1. Remove the LCD panel, keyboard, heat plate, and top cover from the system.
2. Carefully disconnect and remove the DC/DC board from connectors P9 and P10 on the
main board by lifting the DC/DC board.

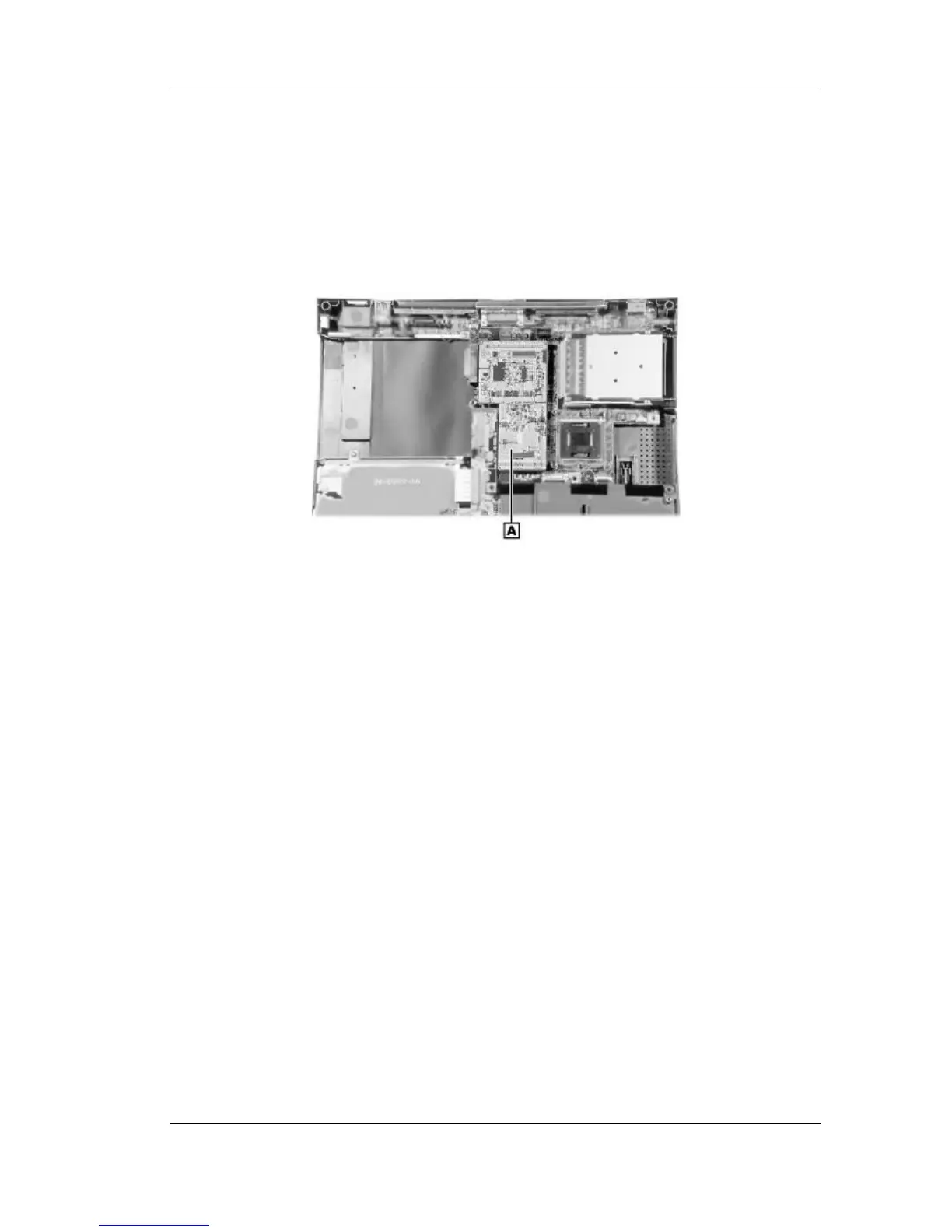

Disconnecting the DC/DC board
A – DC/DC Board
