NEC VT700 - Terminal Panel Features

6
1. Introduction

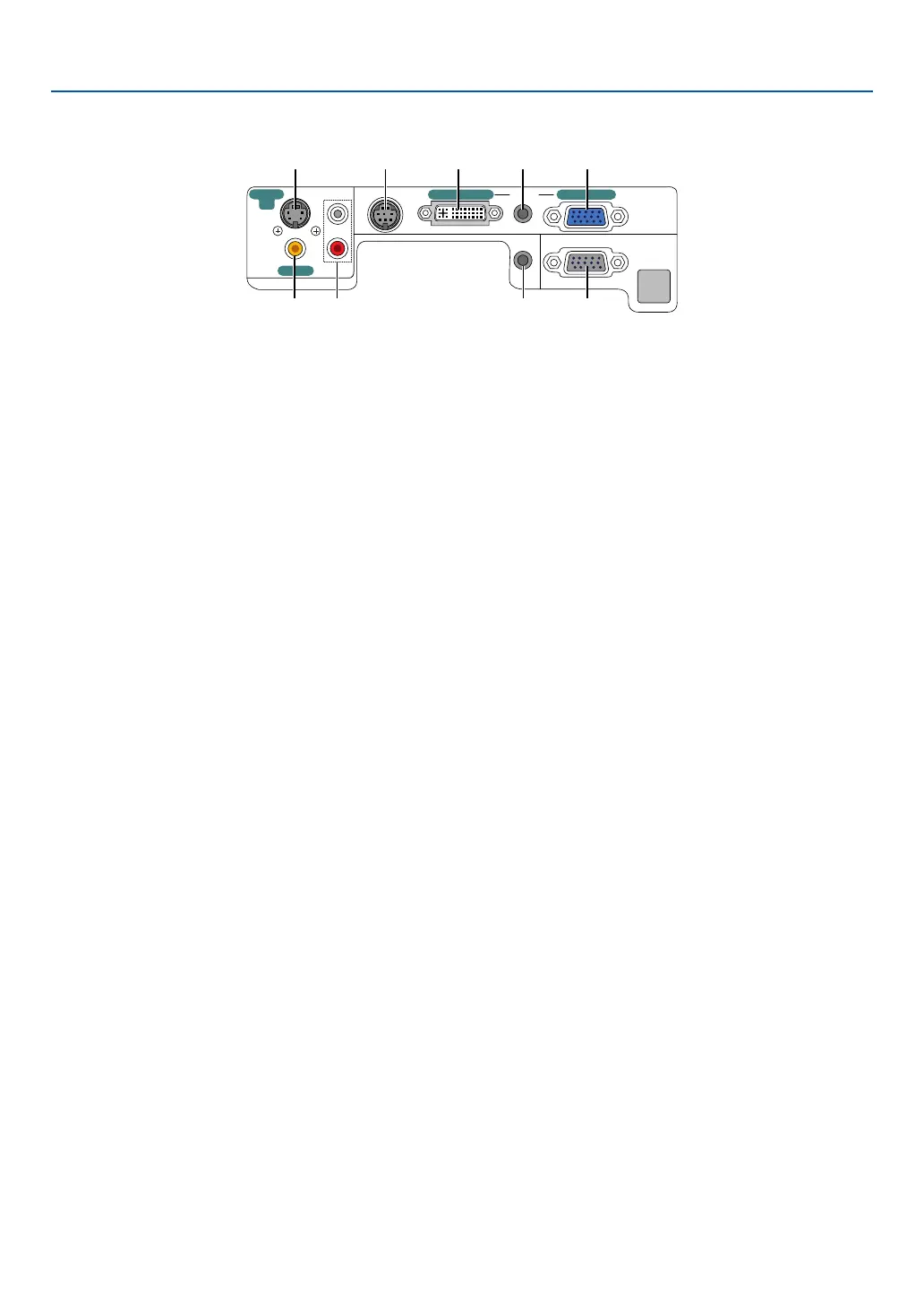

Terminal Panel Features
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN COMPUTER 2 (DVI-I) IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL
L
R
1985 2
3 476
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin) (→page 11,13)
2. AUDIO IN Mini Jack (Stereo Mini) (→page 11,12,15)
3. AUDIO OUT Mini Jack (Stereo Mini) (→page 14)
4. MONITOR OUT Connector (Mini D-Sub 15 Pin)
(→page 14)
5. S-VIDEO IN Connector (Mini DIN 4 Pin)
(→page 16)
6. VIDEO IN Connector (RCA) (→page 16)
7. AUDIO Input Jacks L/R (RCA) (→page 15,16)
8. PC CONTROL [PC CTRL] Port (DIN 8 Pin)
(→page 61)
Use this port to connect a PC or control system.
This enables you to control the projector using serial
communication protocol. If you are writing your own
program, typical PC control codes are on page 61.
9. COMPUTER 2 (DVI-I) IN (DVI-I 29 Pin) (→page 12,13)
