NEC VT700 - Cabinet Dimensions

58
7. Appendix

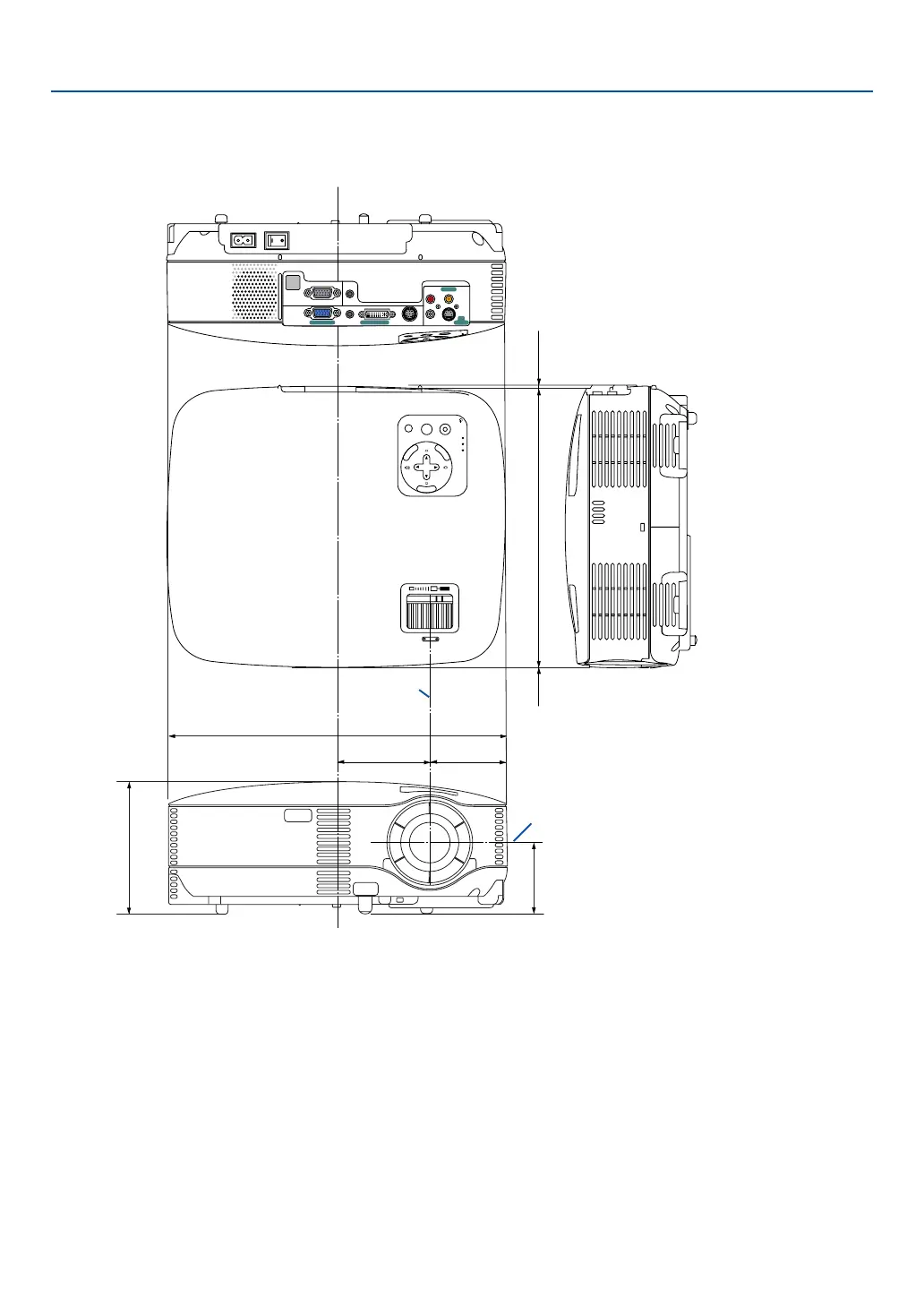

 Cabinet Dimensions
SELECT
MENU
ENTER
EXIT
LAMP
STATUS
POWER
ON/STAND BY AUTO ADJ.SOURCE
ZOOM
FOCUS
PUSH
120.8 (4.8")
258.3 (10.2")
65.3 (2.6")
308.7 (12.2")
71.35 (2.8")83 (3.3")
S
E
LE
C
T
ENTER
EX
IT
L
A
M
P
S
T
A
T
U
S
P
O
W
E
R
ON/STAND BY
AUTO ADJ.SOURCE
AUDIO OUT
AUDIO IN
MONITOR OUT (COMP 1)
COMPUTER 1 IN
AUDIO IN
S-VIDEO
IN
VIDEO IN
PC CTRL
L
R
COMPUTER 2 (DVI-I) IN
Lens center
Lens center
Unit: mm (inch)
