The machine installation and the following mainte-
nance operations should be carried out by qualified
personnel only, who are trained in the correct use of
the machine and are aware of the specific risks of such
operations.
To energize the system with the open door, simply insert
the special key into the slot (see Fig. 8).
The door can be closed only after removing the key.
Chapter 2
INSTALLATION

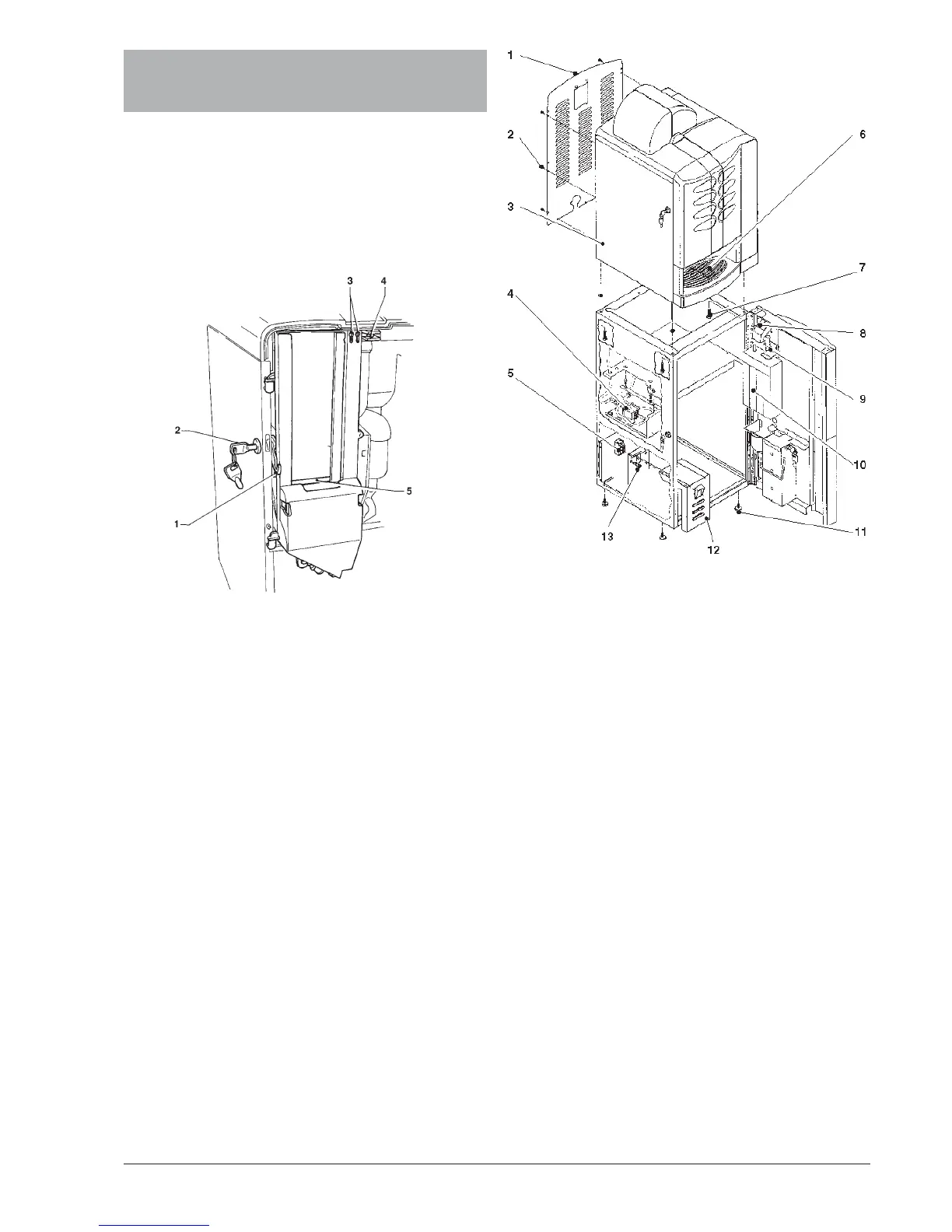

Fig. 8
1 - Door lock bolt
2 - Door lock
3 - Stirrer stacker adjusting slots
4 - Door switch
5 - Stirrer weight
The machine must be installed in a dry room with
temperature between 2°C and 32°C.
At installation the hydraulic circuits and the parts in
contact with foodstuff should be fully sanitised to
remove any bacteria which might have formed during
storage.
UNPACKING THE VENDING MACHINE
After removing the packing from the machine and from the
support cabinet, ensure that the machine and all other
equipment are intact.
If in doubt do not use the machine.
No packing elements (i.e. plastic bags, polystyrene
foam, nails, etc.) should be left within the reach of
children, as they are potentially dangerous.
Packing materials must be disposed of in authorised
containers and the recyclable ones must be recovered by
qualified companies.
Important notice!!
The machine should be positioned with a maximum incli-
nation of 2°.
If necessary provide proper levelling by way of the adjust-
able feet included (see Fig. 9).
Fig. 9
1 - Back panel
2 - Back panel securing screws
3 - Wiring connectors’ zone
4 - Water supply pump
5 - Differential switch
6 - Dispensing compartment drip tray
7 - Machine securing screws
8 - Coin chute
9 - Selector opening lever
10 - Coin mechanism
11 - Adjustable feet
12 - Removable lid
13 - Fuses
MACHINE AND CABINET ASSEMBLY
In order to assemble cabinet and machine, do as follows:
- Install the adjustable feet to the cabinet and adjust
them to level the cabinet.
- Place the machine onto the cabinet and secure it using
the special screws provided.
- Remove the back panel from the machine, undoing the
securing screws.
- Connect the wires from the transformer and from the
water supply device, located inside the cabinet, to the
corresponding connectors inside the machine.
- Lay the cable of the payment system, located inside
the machine, from the top panel of the cabinet to the
coin slot zone.
