© by NECTA VENDING SOLUTIONS SpA
26
03-2003 217 00

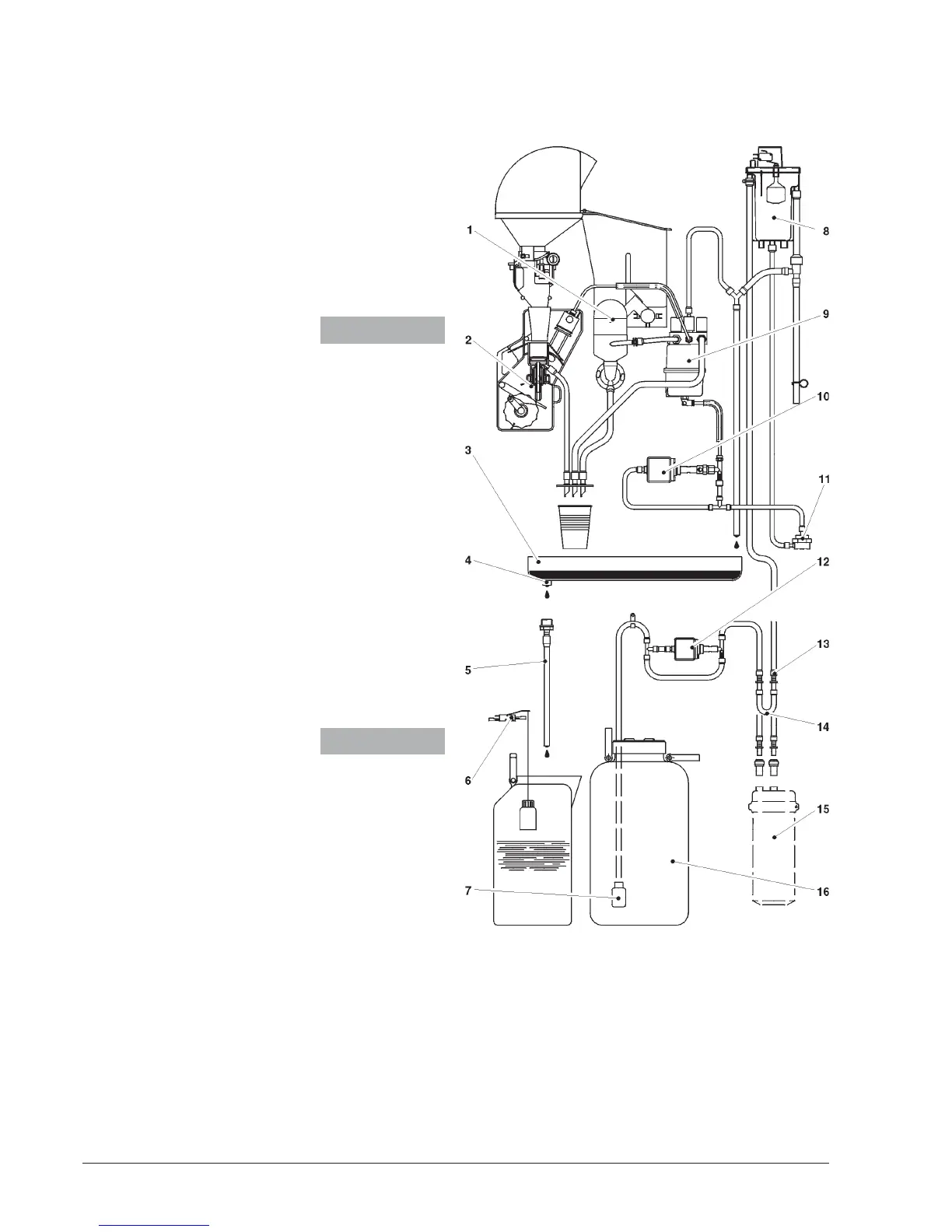

HYDRAULIC SYSTEM
1 - Mixer
2 - Coffee unit
3 - Dispensing compartment drip tray
4 - Drip tray drain boss
5 - Drain pipe
6 - Liquid waste container float
7 - Non-return valve
8 - Air-break
9 - Boiler
10 - Coffee brewer pump
11 -Volumetric counter
12 -Water supply pump
13 -Water supply hose fitting
14 -Softener cartridge bracket
15 -Softener cartridge (optional)
16 - Drinking water tank
Machine
Cabinet
