OPERATING MODES
Three different operating modes are provided for the
machine; the buttons will have different functions accord-
ing to the machine operating mode.
The available operating modes are as follows:
FUNCTIONS
Normal operating mode coins accepted
products dispensed
Filler menu test dispensing
machine maintenance
Technician menu Programming the
different parameters
USER INTERFACE
The interaction between system and user occurs through
the following components:
- Liquid Crystal Display (LCD), 2 lines x 16 characters.
- External push-button panel, with keys which have the
following functions when in “filler” and “technician” mode
(see Fig. 21):
Scrolling keys “ ” and “ ”:
To move to the next or previous menu option.
Confirm key “ ”:
To move from a menu to a sub-menu or it is used to confirm
the current information on the display.
Exit key “ ”:
To move back from a sub-menu to the higher level menu,
or used to cancel the current information on the display.
It is also used for going from “filler” mode to “technician”
mode and vice versa.

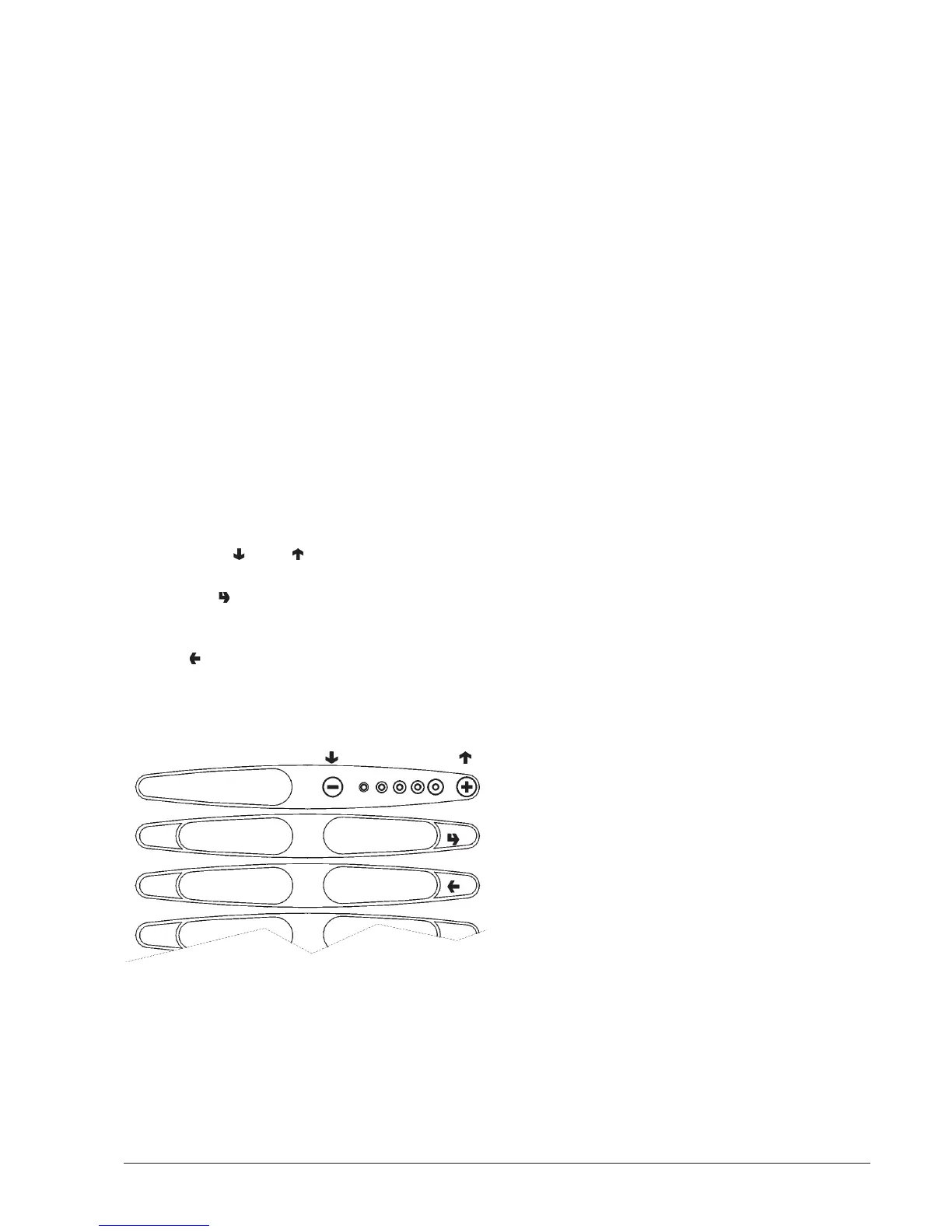

Fig. 18
NORMAL OPERATING MODE
When switching the machine on, the display will show the
message “Kikko” and the software version for a few
seconds.
The vending machine checks the boiler, if necessary
automatically starts the filling cycle, and goes into normal
operating mode.
The displayed massages indicating the operation being
carried out are fixed, while the instructions requiring an
action from the user are blinking; the messages include the
following:
DISPLAY FUNCTION
Select the drink Machine ready
Vending machine Machine out
out of service of service
Drink selected Drink preparation in
Wait please process
Take drink Dispensing ended
correctly
FILLER MENU
When pressing once the programming button located on
the coin mechanism compartment, the machine goes into
“filler menu” mode.
The first option of the “filler” menu is displayed, allowing the
following functions:
“Statistics” Data reading
“Prices” Changing the price for one
selection
“Tubes control” manual refill and release of
change tubes (BDV - MDB)
“Boiler temperature” Displaying the boiler temperature
in degree C.
“Test” Complete dispensing
Dispensing water only
Dispensing powder only
Dispensing without accessories
Dispensing accessories only
“GSM” resetting pre-alarm counters
“EVADTS” Connection
