Installation and Configuration | AEOS Blue and vehicle identification EN
Manual version 3 14/48

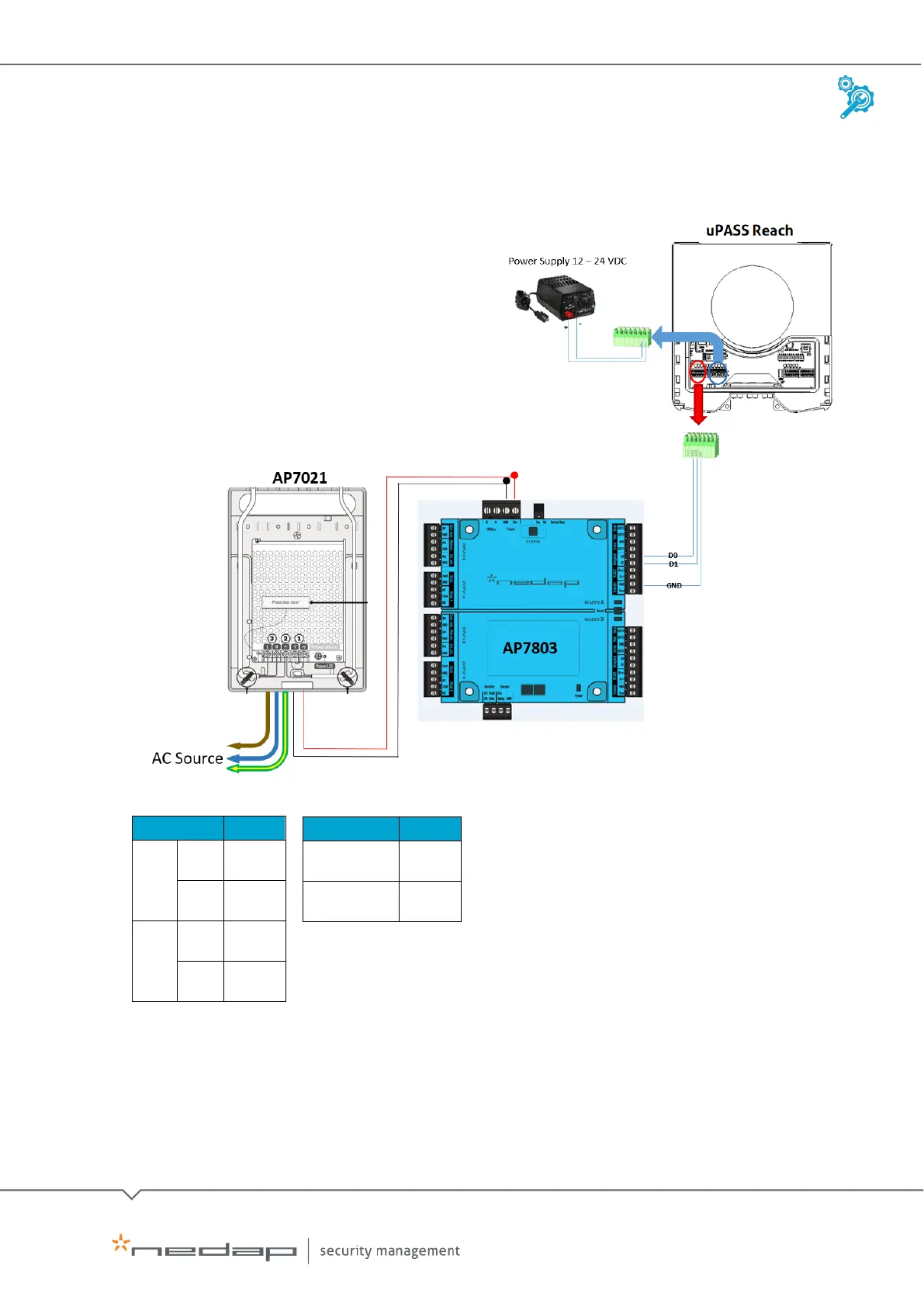

3.1.2 Connection overview uPASS Reach
AP7803
uPASS
Wiegand
D0 Out 2
D1 Out 3
Vreader
GND GND
Vout
VDC power
uPASS
+ DC+
- DC-
