Installation and Configuration | AEOS Blue and vehicle identification EN
Manual version 3 21/48

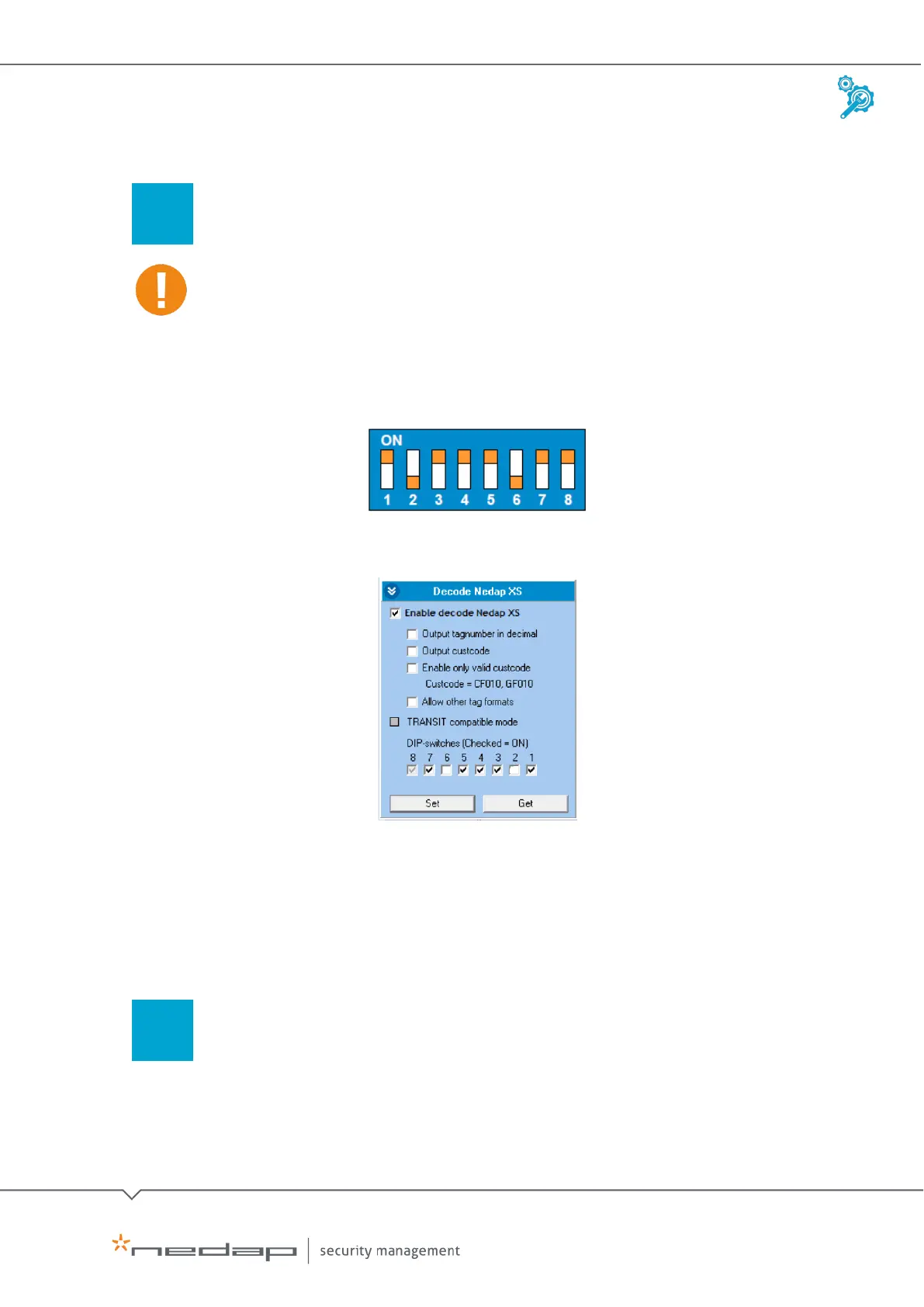

Adjust the dip switch
For Nedap XS, make sure the uPASS reader is set to TRANSIT mode, see step 2.
1. To send the tag number as Wiegand 26 format, set the dip switch as shown below.
For other Wiegand formats, please refer to the P81 firmware guide.
For uPASS reach:
For uPASS Target:
uPASS Access does not have a dip switch.
3.4 Configuring AEmon
To configure the AEOS Blue controller for the uPASS reader in AEmon, take the following steps:
Configure the identifier type in AEmon
1. Start AEmon
2. In AEmon, create/open the configuration, including the AP7803 AEOS Blue controller, the
IPBadge AEbc and the StandardDoor access point (see the AEOS Access Points and
Entrances manual).
