Nelson NCD+ 3200 User Manual

NCD+ 3200 Manual | Control and Display Elements
Part No. 729-110-037 Rev. 1.31 | May 2016 © 2014 Nelson Stud Welding, Inc. All Rights Reserved.
2.1.1 Voltage Display Modes
RED when charging is in progress. GREEN when actual voltage matches with setpoint.
Voltage
Setpoint
Cap Charge Status
Ready
(GREEN)
Charging
(WHITE)
Not Ready
(RED)
Discharging
(WHITE)
Workpiece
Icon indicates
contact with
workpiece
when green
Indicates actual voltage
to which capacitors have
been charged
Trigger Icon indicates trigger
contact when green
Error Display
(If error is present)
Bar graph of Actual Cap
Voltage

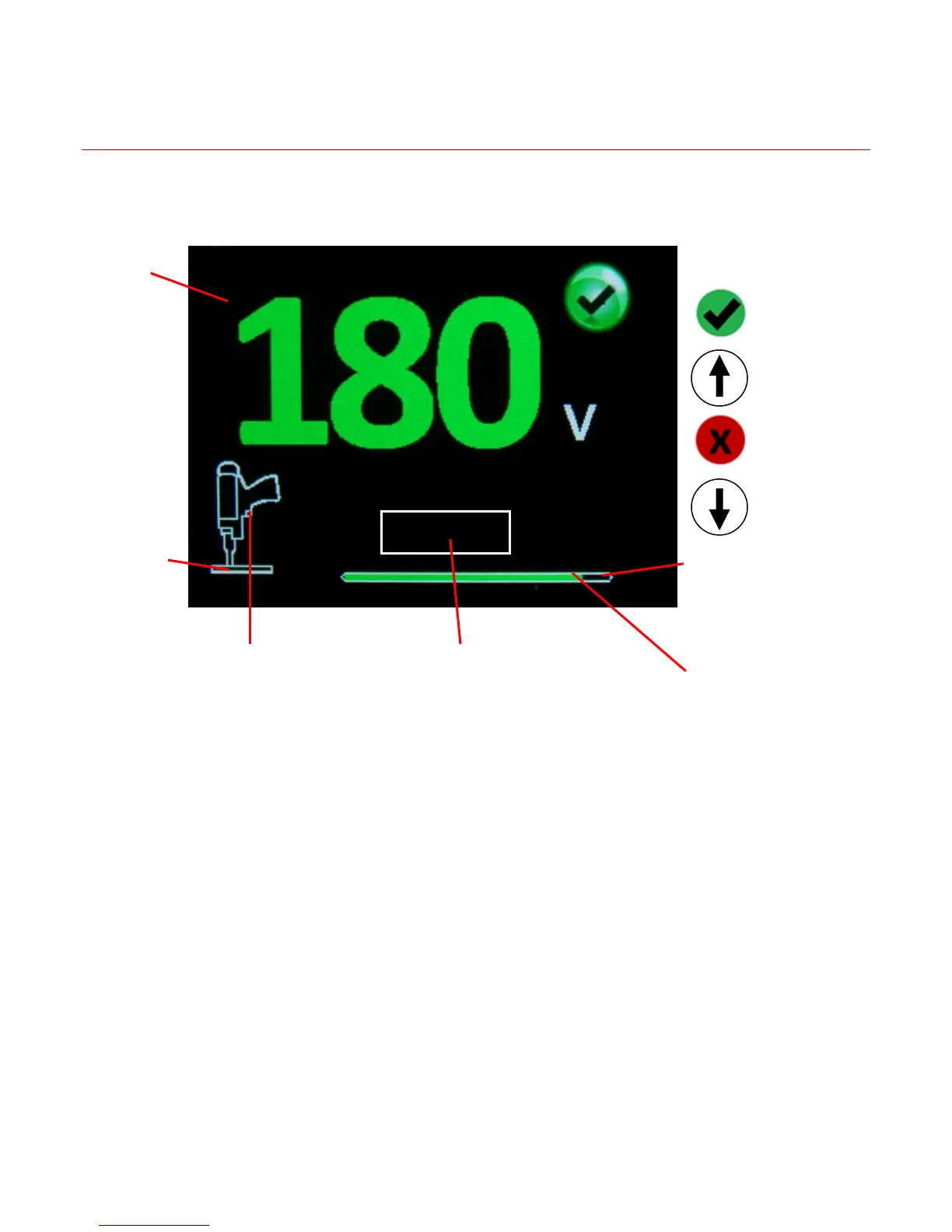

Figure 2.2 Voltage Display (Enlarged View of Items 5 & 6 of Figure 2.1)
