NCD+ 3200 Manual | Connection and Installation
Part No. 729-110-037 Rev. 1.31 | May 2016 © 2014 Nelson Stud Welding, Inc. All Rights Reserved.
1.2.1 Input Connection
The NCD+ unit can only be operated with 110-120 VAC 50/60 Hz input power (Item 4 of Figure 1.1,

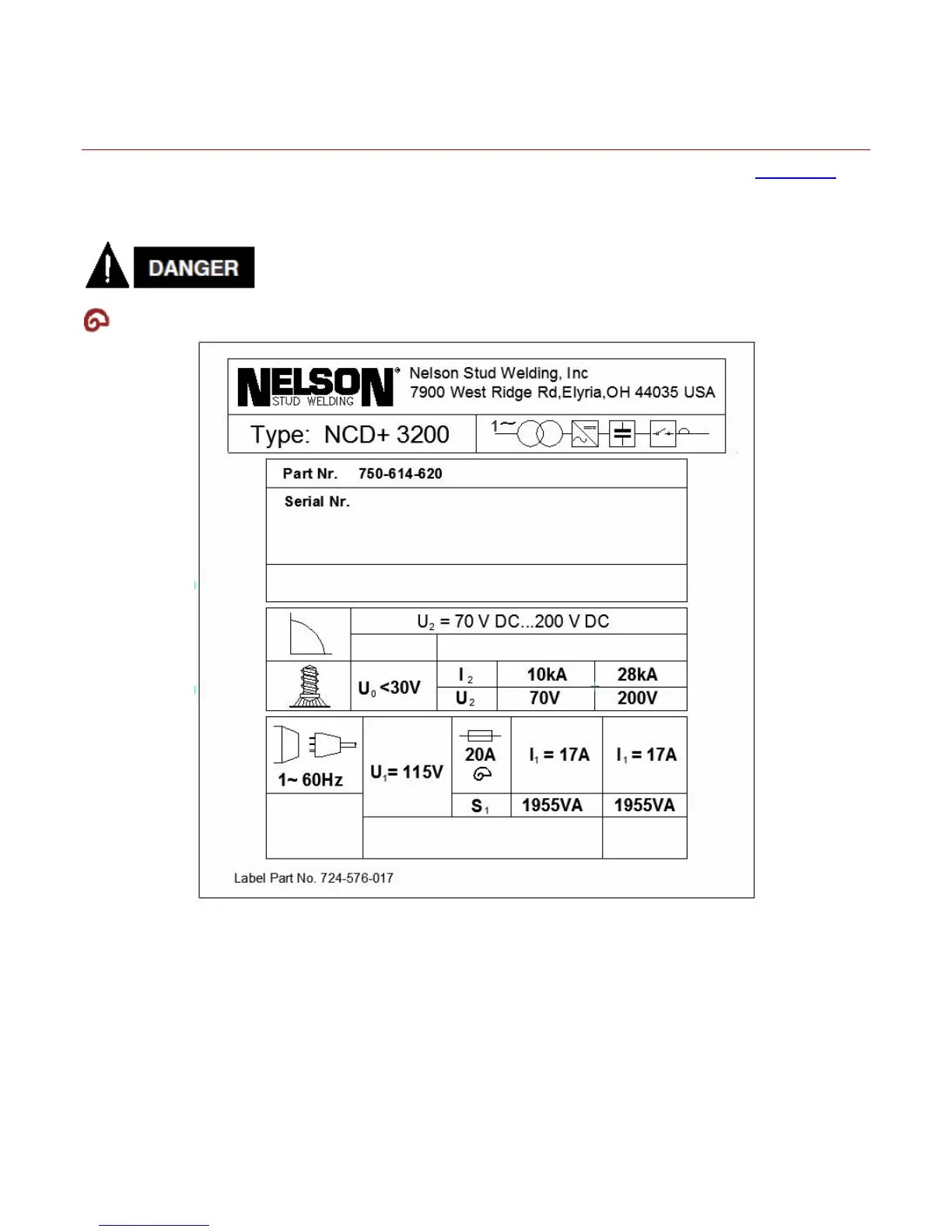

Page 7). See the rating plate on the back panel of the unit.
The input power must be wired with the earth ground connection. It is not
acceptable to use an isolation plug to isolate the earth ground connection. It
could result in unsafe conditions.
Fusing with slow response characteristics.
