Nelson Nelweld 6000 - Page 28

Nelweld Operations and Service Manual
- 28 -

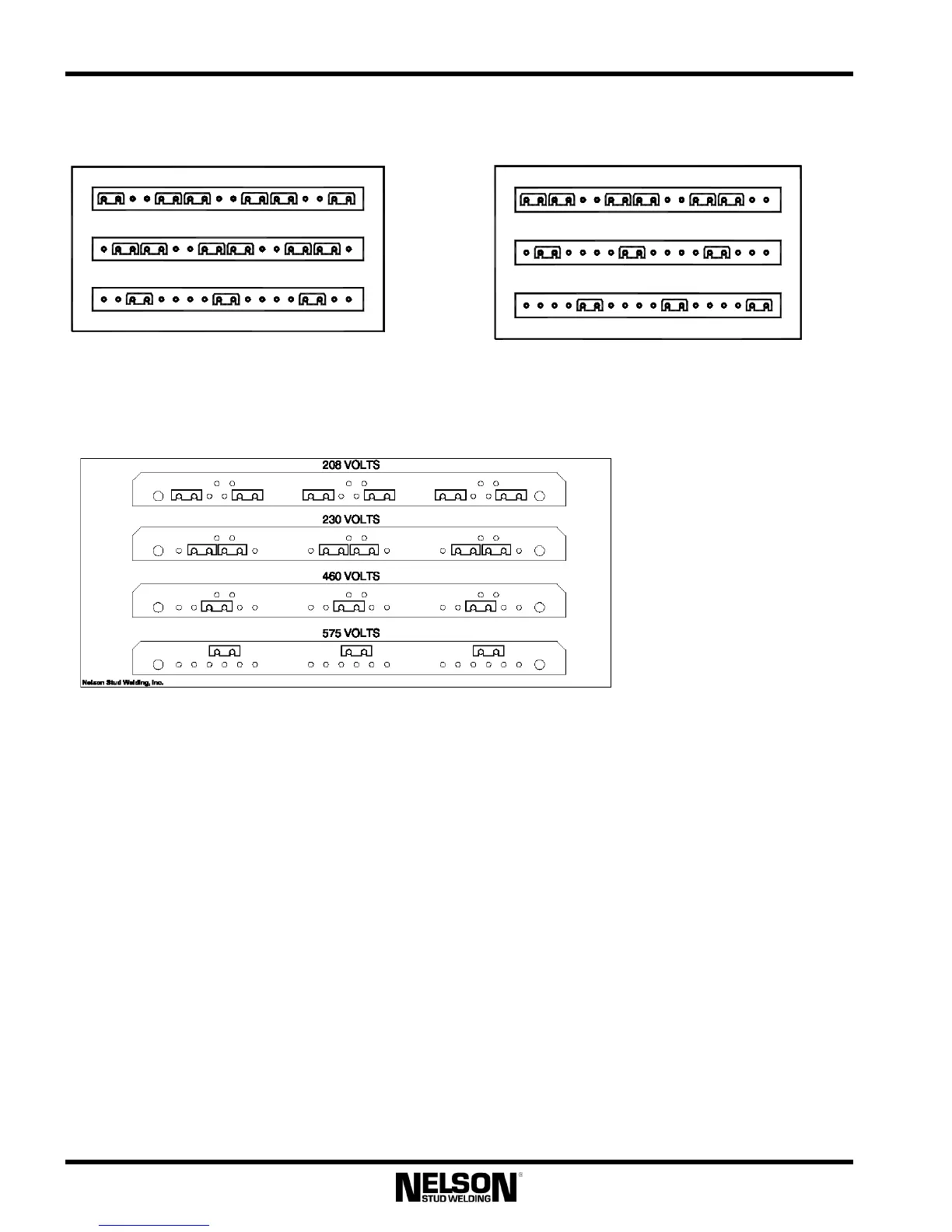

Figure 3-3: Link connections for 208/230/460 V model
(Systems shipped prior to April 2006.)
460 V O L T S
230 V O L T S
208 V O L T S
N elso n S tu d Weld in g , In c.
Figure 3-4: Link connections for 230/460/575 V model.
(Systems shipped prior to April 2006)
575 V OLTS
460 V OLTS
230 V OLTS
Reo rder Number 724-569-100Nelso n Stud Weldi ng, Inc.
Figure 3-5: Link connections for 208/230/460/575 V model. (Systems shipped after April 2006).
